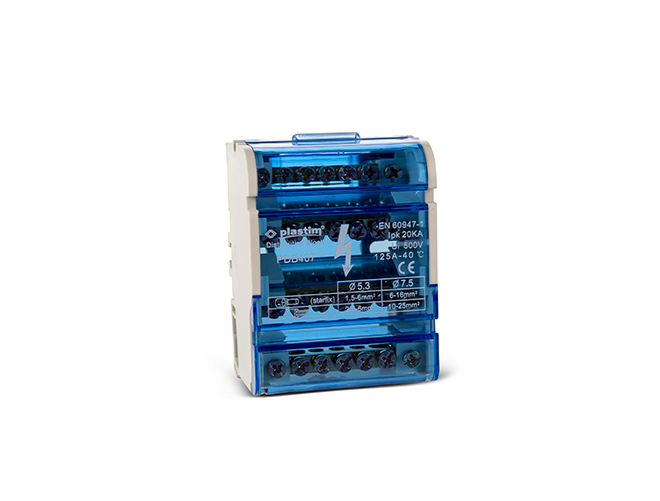

PDB407 phase separation terminal block
- Regular price
- €13,16 €10,88 excl. VAT
- Regular price
-
- Sale price
- €13,16 €10,88 excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty
Terminal block for phase separation on DIN rail, Plastim, made in Turkey.
The Plastim four-pole distribution block is used for safe, structured, and space-saving branching of three-phase and neutral conductor (3P+N) in power distribution panels. It includes four separate, galvanically isolated brass busbars (4 pole), each with 7 connection points of two different diameters, ensuring secure fastening of the main power source and outgoing circuits. A transparent detachable protective cover allows immediate visual inspection of the connection status while providing safe protection against accidental contact. The block is designed for quick attachment to a standard DIN 35 mm support rail or mounting with screws on a mounting plate.
Technical specifications
Product type.
Number of poles: 4 (ideally suited for three-phase systems with neutral wire).
Rated current: 125 A
Number of clamps per pole: 7
Total number of terminals: 28 (4×7)
Terminal configuration per pole: 5× ø 5.3 mm + 2× ø 7.5 mm
Connection type: screw connection
Mounting method: DIN 35 mm mounting rail / mounting plate
Dimensions
Length: 65.0 mm
Width: 89.5 mm
Height: 50.0 mm
