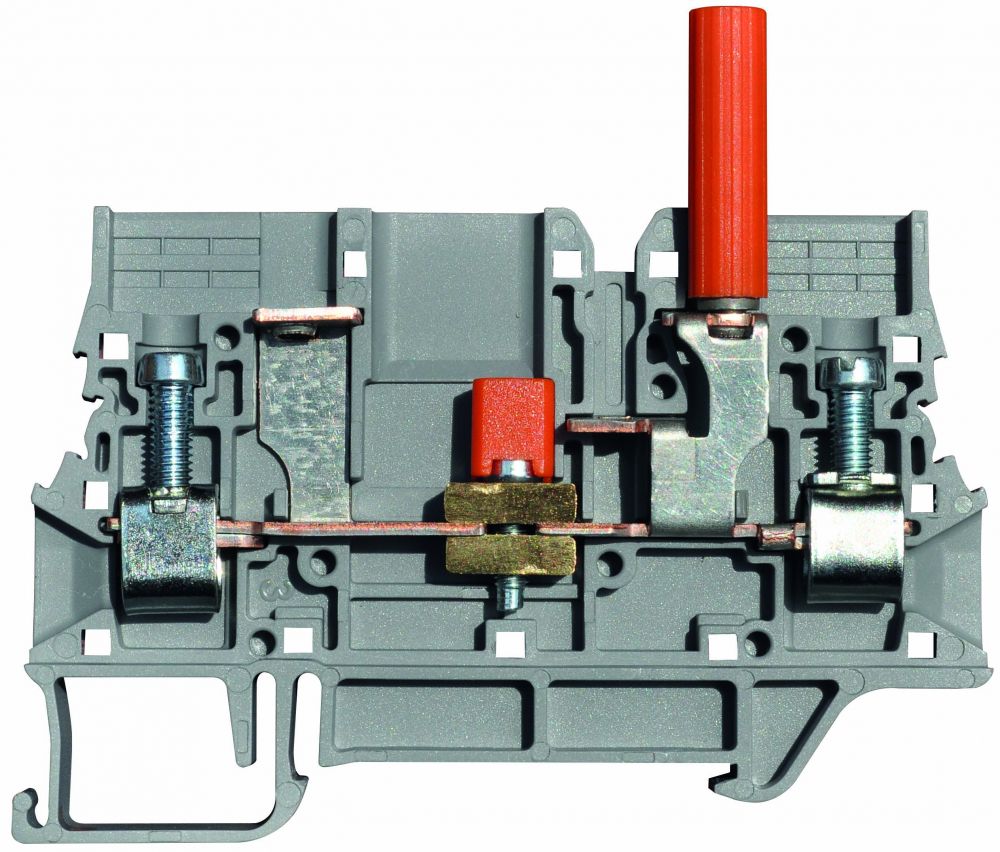

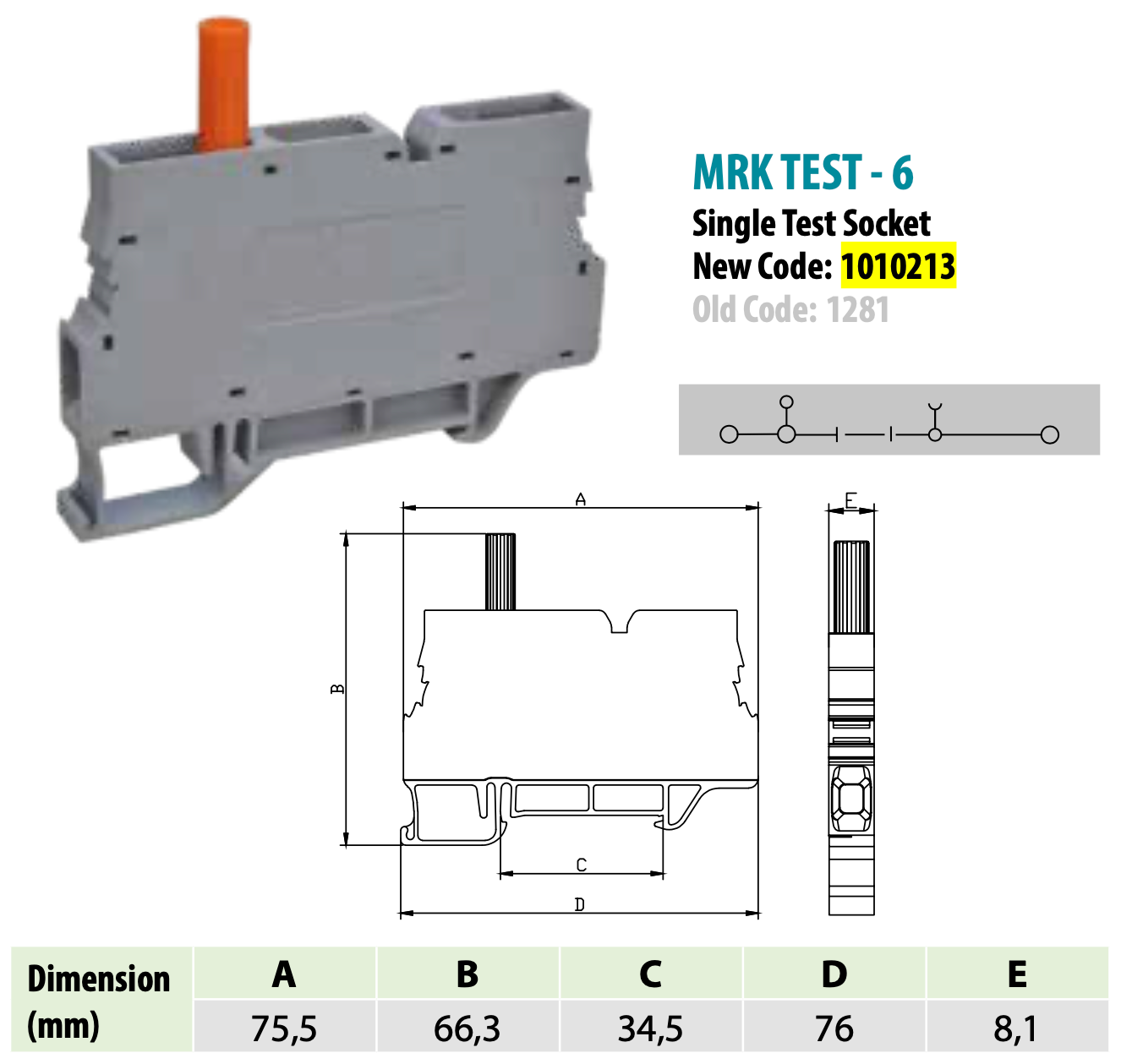

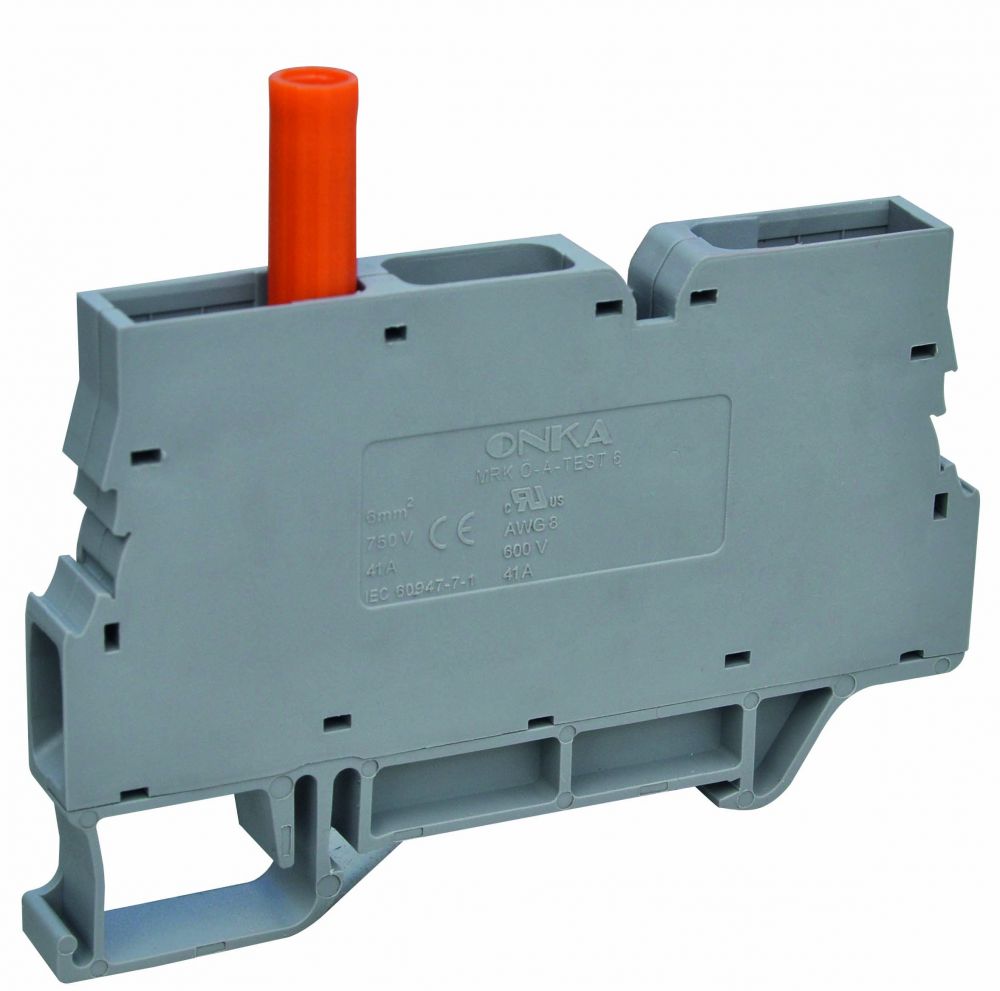

ONKA 6mm2 Screw rail connector terminal block with test terminal on DIN rail, 2 wires, gray, 1010213

Measuring terminal block with test connector with threaded busbar connector / DIN rail terminal 2-wire gray, ONKA, made in Turkey

ONKA compact installation rail connector provides wide possibilities for connecting wires of different cross-sections. The transparent housing makes it easy to check the correct placement of wires. Original ONKA quick connectors ensure easy installation and 100% connection reliability.

Technical parameters

Cross-section of the individual wire to be connected up to: 6 mm2
Color: gray
Main body insulation material: polyamide (PA6.6 )
Contact/ground material: CK45 steel/copper
Torque: 0.8 Nm
Connection position: side / side
Cable strip length: 12 mm
Electrical connection type: screw clamp
Rated voltage: 750 V
Rated current: 41A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
