ONKA 6mm2 spring rail connector terminal block DIN rail terminal, 2 wires, blue, 1020037, 1020037
- Regular price
- €1,44 €1,19 excl. VAT
- Regular price
-
- Sale price
- €1,44 €1,19 excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

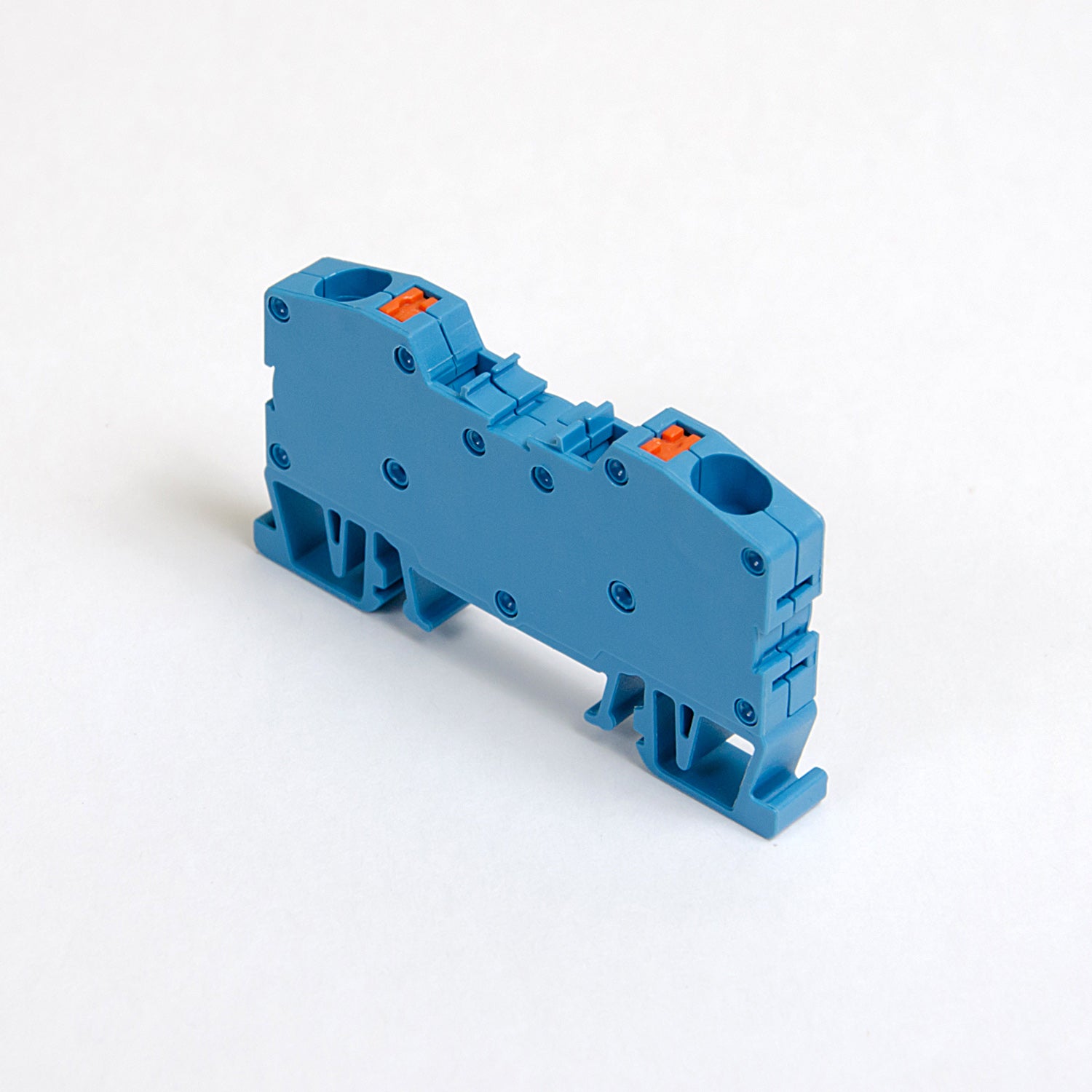

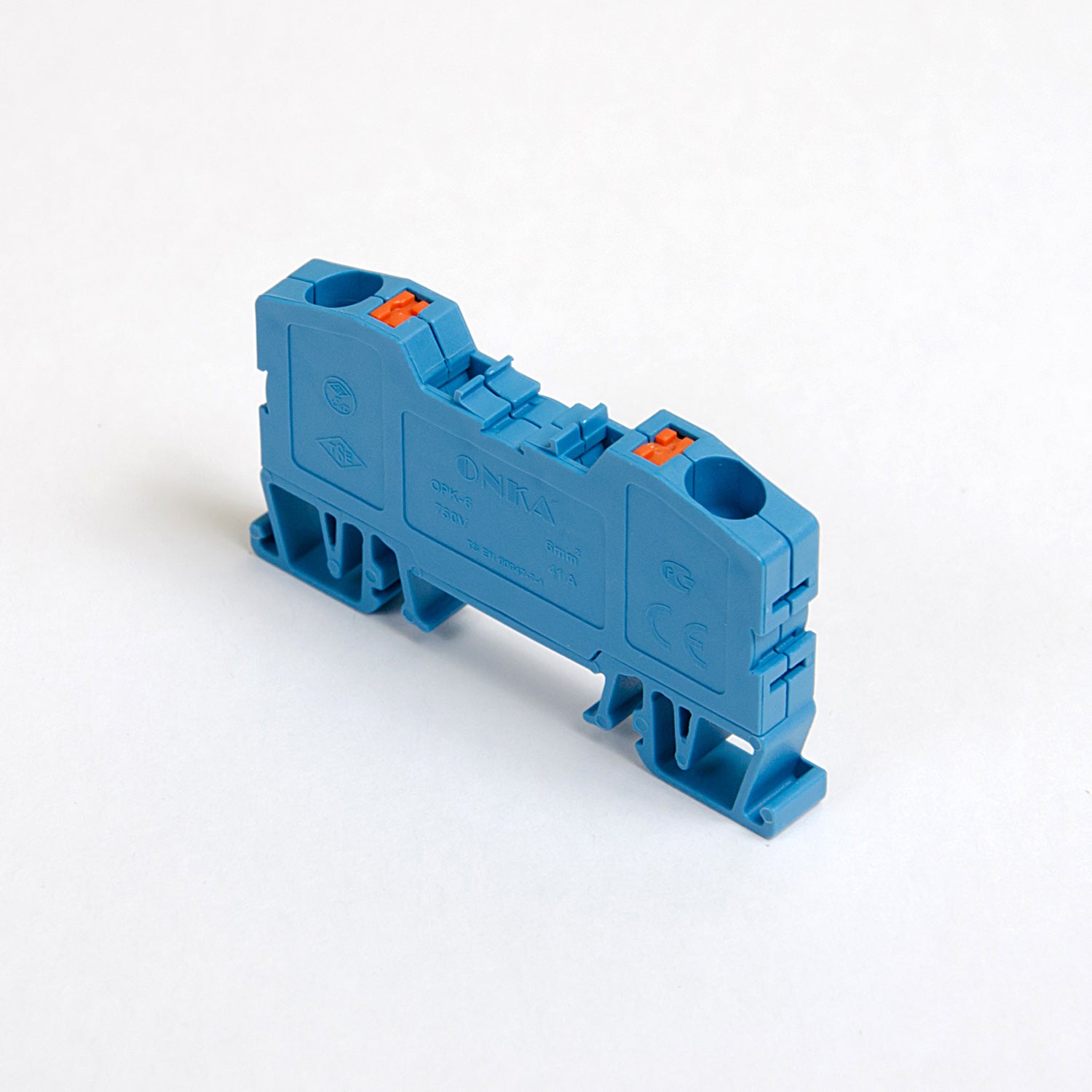

Spring-loaded busbar connector / DIN rail terminal, 2 wires, retractable contact, blue, ONKA, made in Turkey.
ONKA connector/terminal is a reliable solution for anyone looking for functional and durable elements in electrical installations.
The connector, made of high-quality materials, guarantees long-term use and resistance to mechanical damage.
Technical parameters
Cross-section of connected individual wire up to: 6 mm2
Color: blue
main body insulation material: polyamide (PA6.6 )
Contact/mill material: stainless steel/copper
Connection position: top/top
Cable strip length: 12 mm
Electrical connection type: spring clamp / retractable contact
Rated voltage: 750 V
Rated current: 41A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
