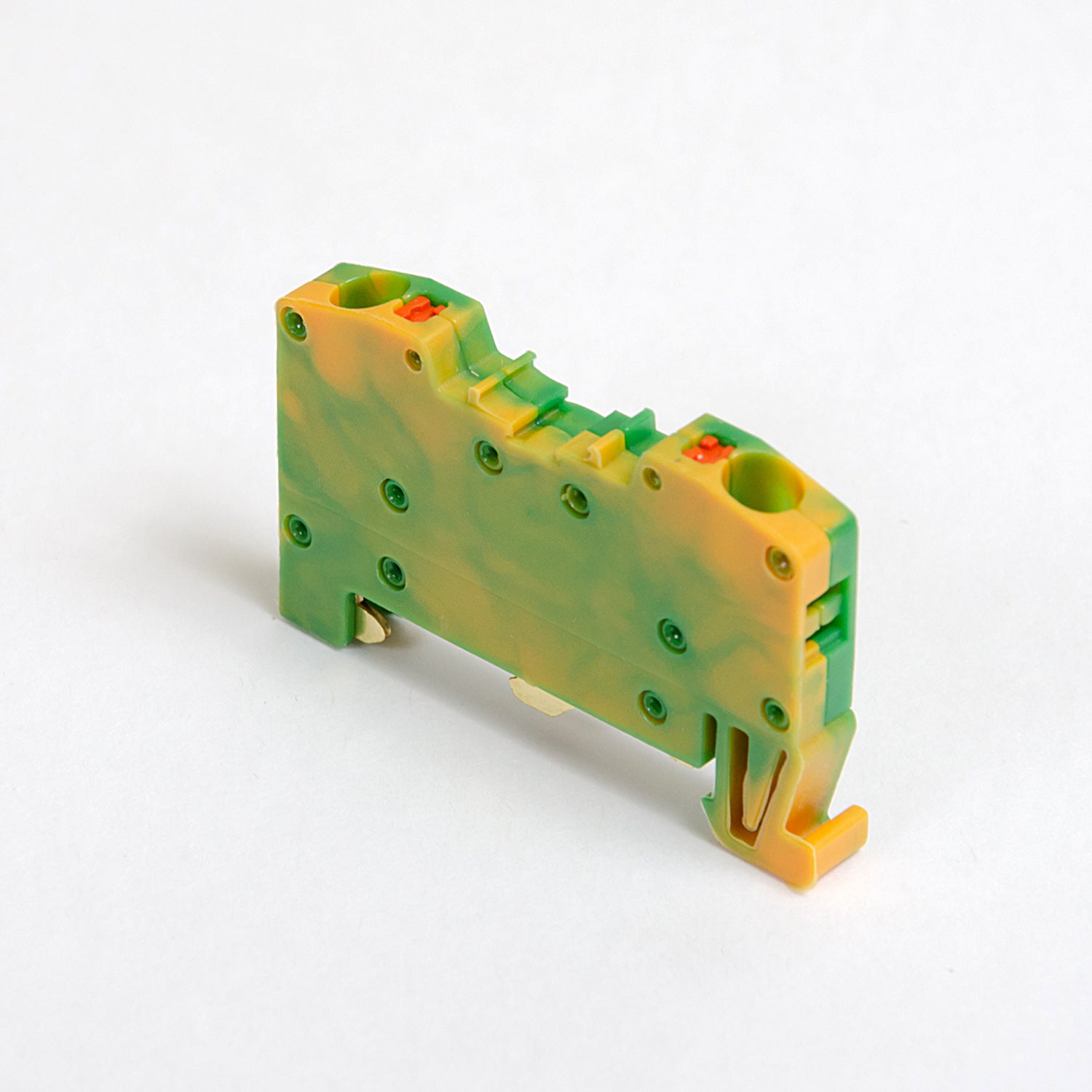

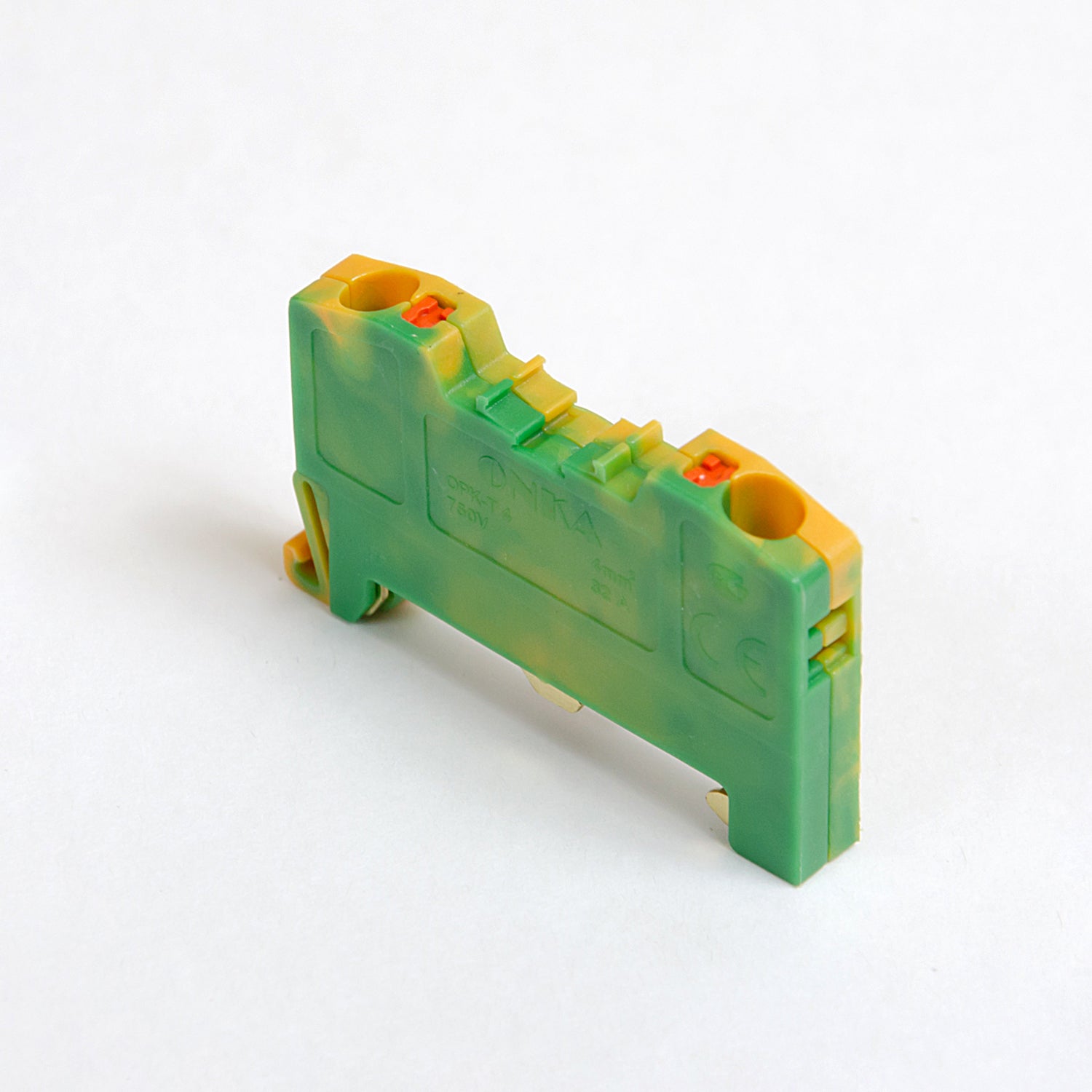

PE spring busbar connector / DIN rail terminal 2-wire green-yellow, ONKA, made in Turkey
ONKA compact installation rail connector provides wide possibilities for connecting wires of different cross-sections. The transparent housing makes it easy to check the correct placement of wires. Original ONKA high-speed couplings are easy to install and 100% connection reliability.
Technical parameters
Cross-section of the individual wire to be connected up to: 4 mm2
Color: Greenish yellow (camouflage)
Main body insulation material: polyamide (PA6.6 )
Contact/flour material: CK45 steel/magnesium
Connection position: Top / top
Cable strip length: 9 mm
Electrical connection type: spring clamp
Rated voltage: 750 V
Operating temperature range: -40°C ... 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
