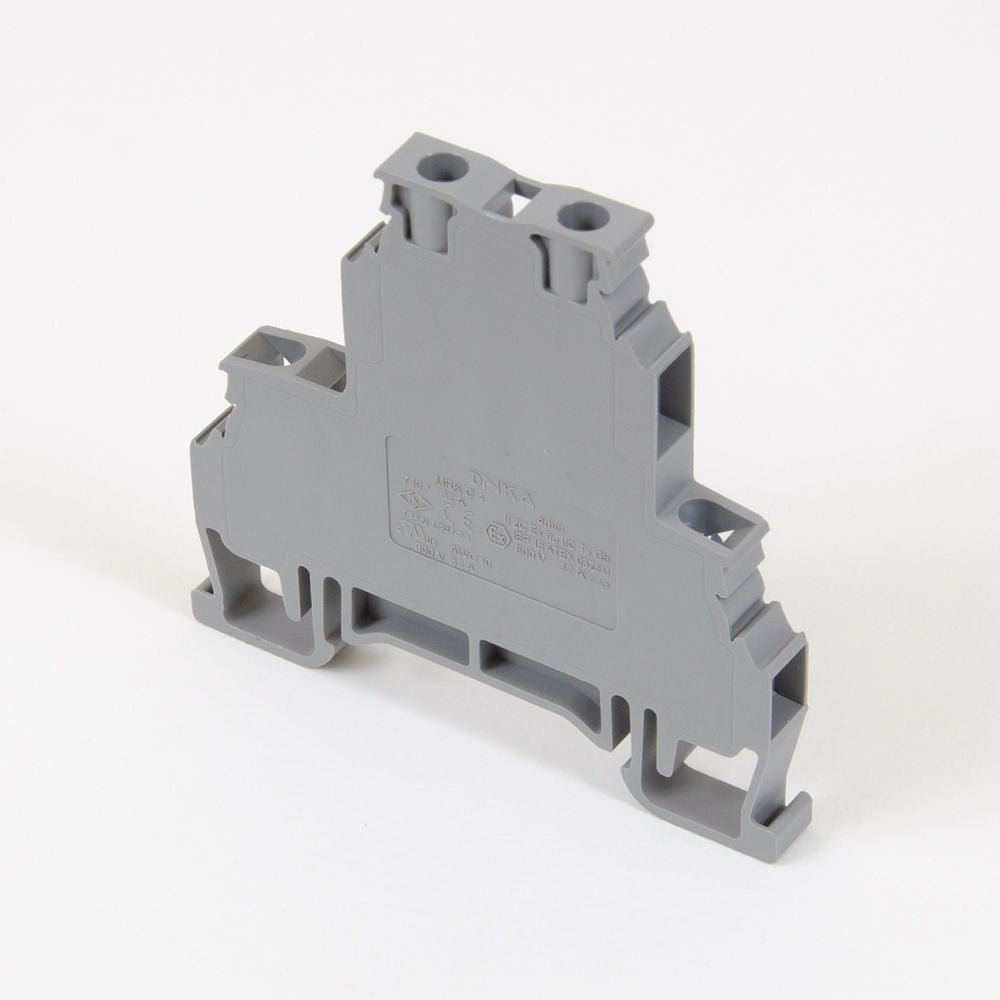

ONKA 4mm2, 2-level Screw rail connector terminal block DIN rail terminal 4-wire, gray, 1010368

2-pair threaded busbar connector / DIN rail terminal, 4 wires, gray, ONKA, made in Turkey

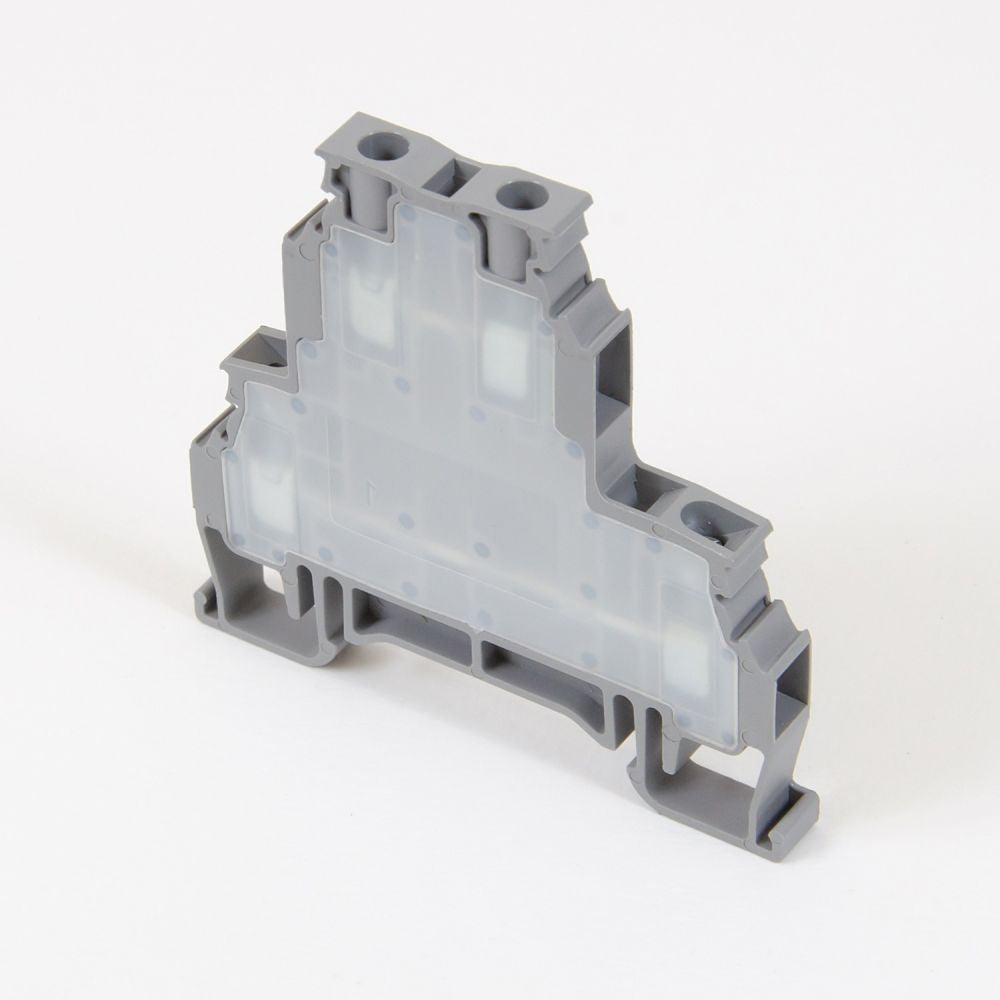

ONKA compact installation rail connectors provide a wide range of possibilities for connecting wires of any cross-section. The transparent housing makes it easy to check the correct placement of wires. Original ONKA high-speed couplings are easy to install and 100% reliable connection.

Technical parameters

Cross-section of the individual wire to be connected up to: 4 mm2
Color: gray
Main body insulation material: polyamide (PA6.6 )
Contact/flour material type: CK45 steel/copper
Torque: 0.5 Nm
Connection position: side / side
Cable strip length: 10 mm
Electrical connection type: screw clamp
Rated voltage: 750 V
Rated current: 32A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
