ONKA 35mm2 PE Screw rail connector terminal block DIN rail terminal 2-wire, gray, 1010225

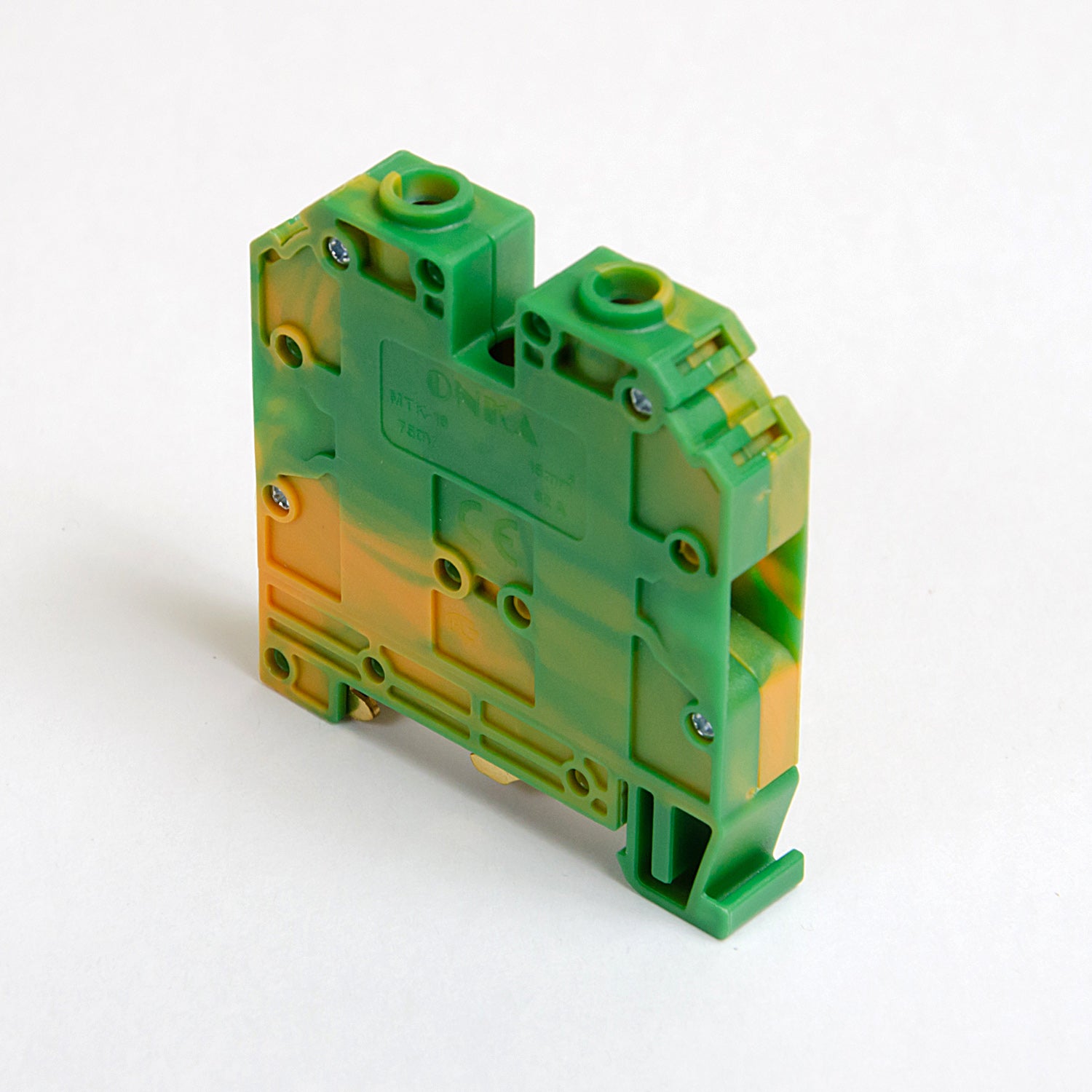

DIN rail 2-wire green-yellow, ONKA, made in Turkey

ONKA compact rail-mounted connectors provide a wide range of possibilities for connecting wires of various cross-sections. The transparent housing makes it easy to check the correct placement of wires. Original ONKA quick-connectors ensure easy installation and 100% connection reliability.

Technical parameters

Cross-section of the individual wire to be connected up to: 35 mm2
Color: Greenish yellow (camouflage)
Main body insulation material: polyamide (PA6.6 )
Contact/flour material: CK45 steel/magnesium
Torque: 1.2 Nm
Connection position: side / side
Cable strip length: 16 mm
Electrical connection type: screw clamp
Rated voltage: 750 V
Operating temperature range: -40°C ... 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
