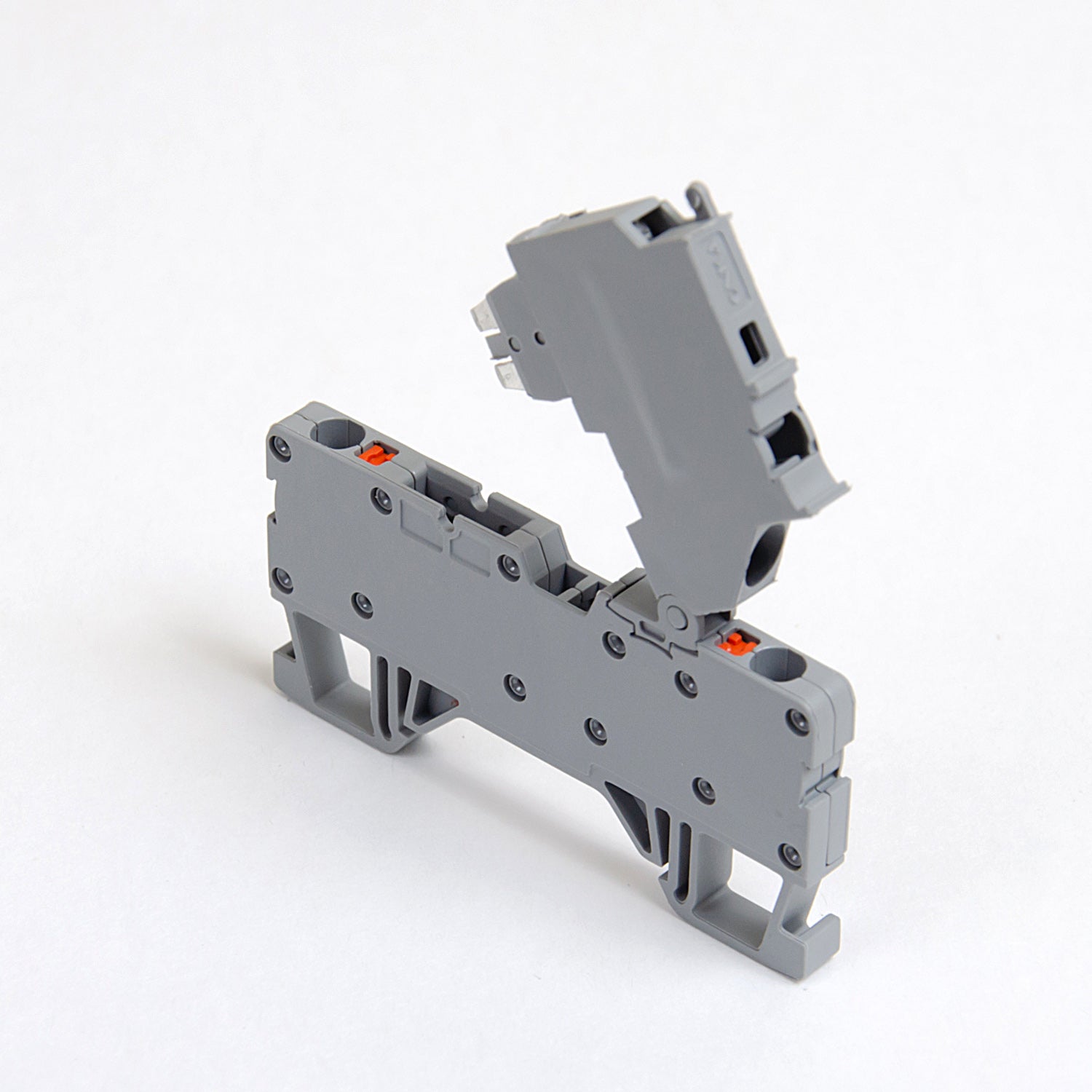

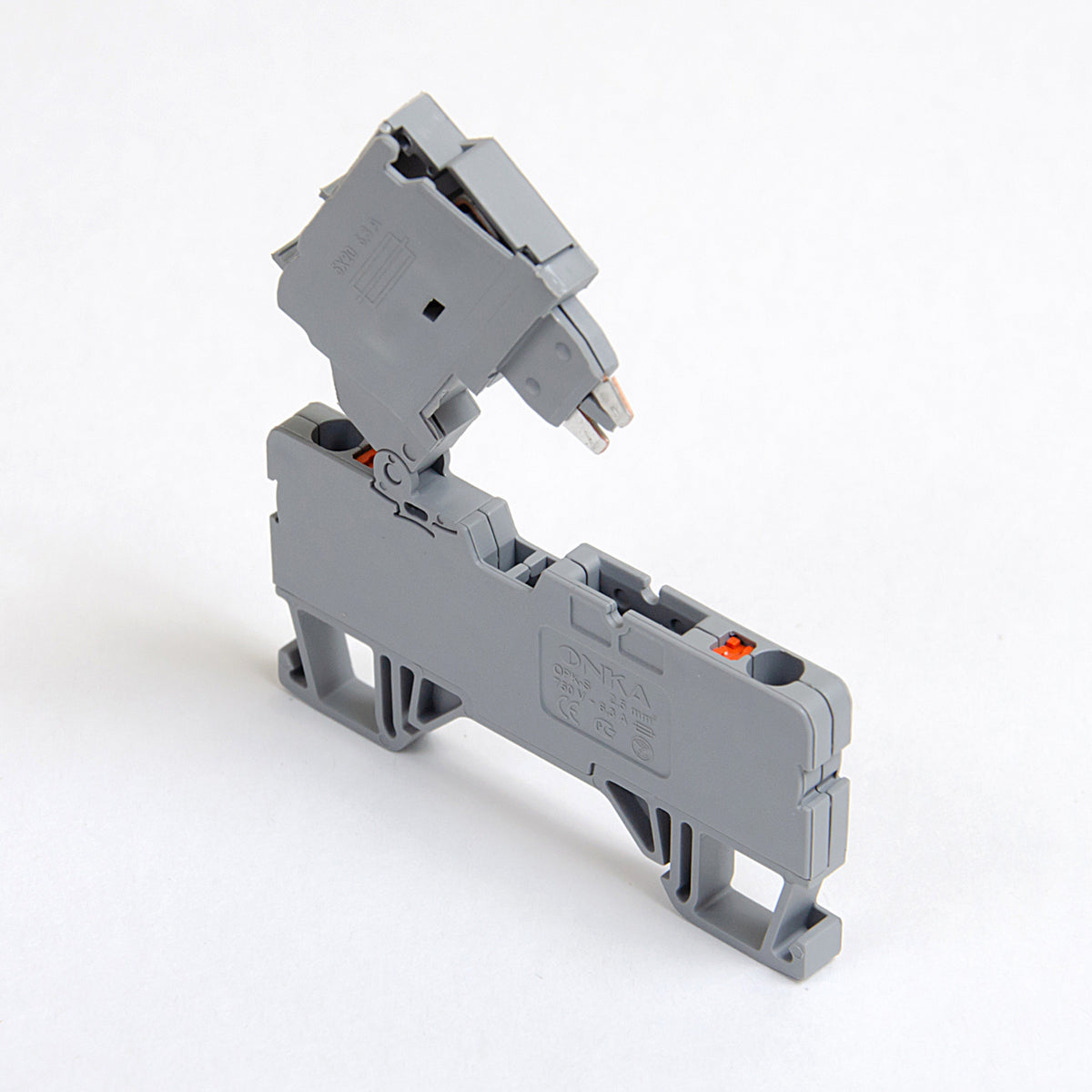

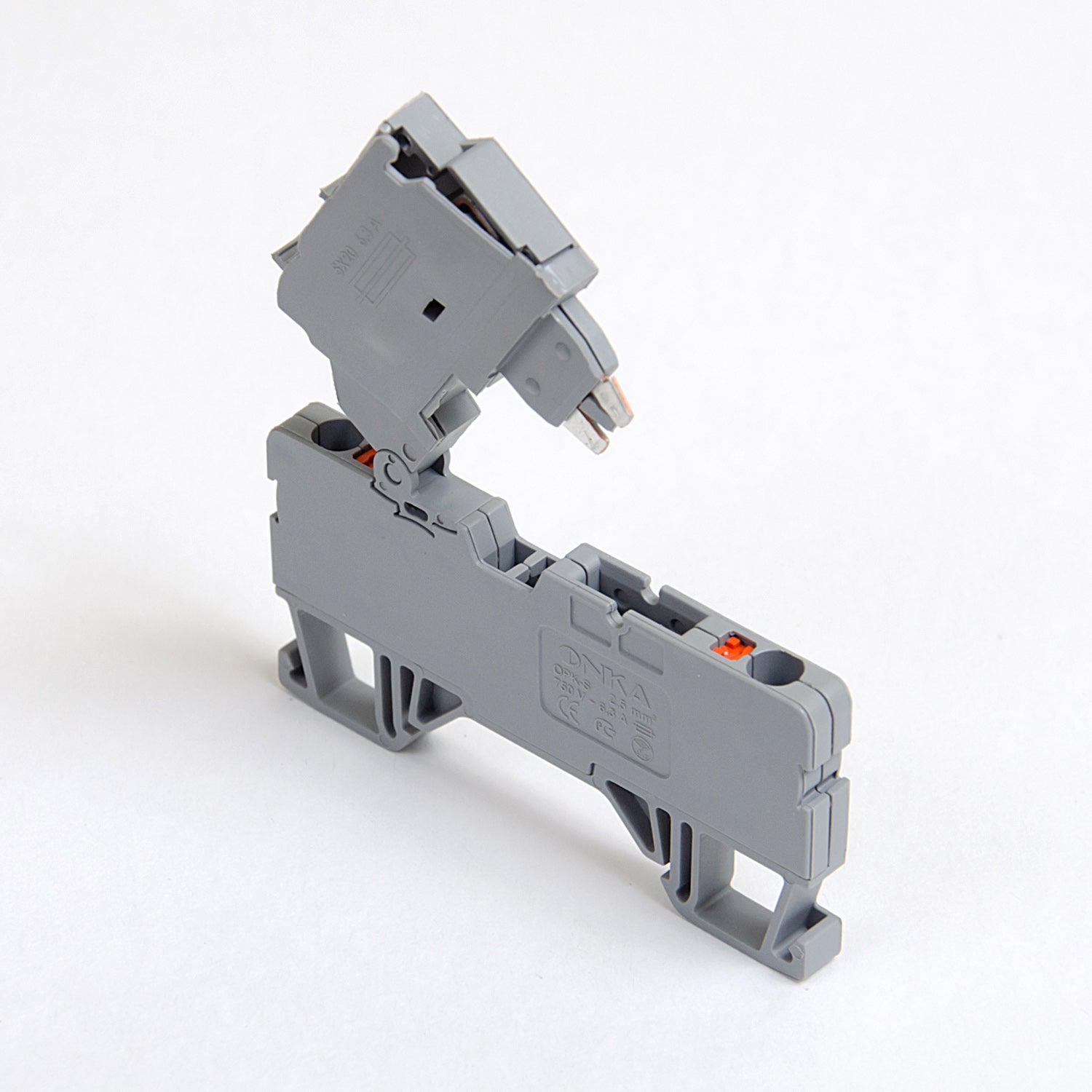

ONKA 2.5 mm2 screw connection fuse terminal block (fuse not included), gray, 1020223

Spring screw connection fuse terminal block (fuse not included), 2 wires, gray, ONKA, made in Turkey

Used for protection of low voltage AC or DC circuits. The terminal has a built-in 5x20 mm fuse with a current setting of up to 6.3 A. The fuse is not included in the package and must be ordered separately.

Technical parameters

Cross-section of the connected individual wire up to: 2.5 mm2
Color: gray
Main body insulation material: polyamide (PA6.6 )
Contact/soil material: stainless steel/copper
Connection position: top/top
Cable strip length: 9 mm
Electrical connection type: screw clamp
Rated voltage: 750 V
Rated current: 6.3A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
