ONKA 16mm2 PE Screw rail connector terminal block DIN rail terminal, 2 wires, gray, 1010532
- Regular price
- €6,00 €4,96 excl. VAT
- Regular price
-
- Sale price
- €6,00 €4,96 excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

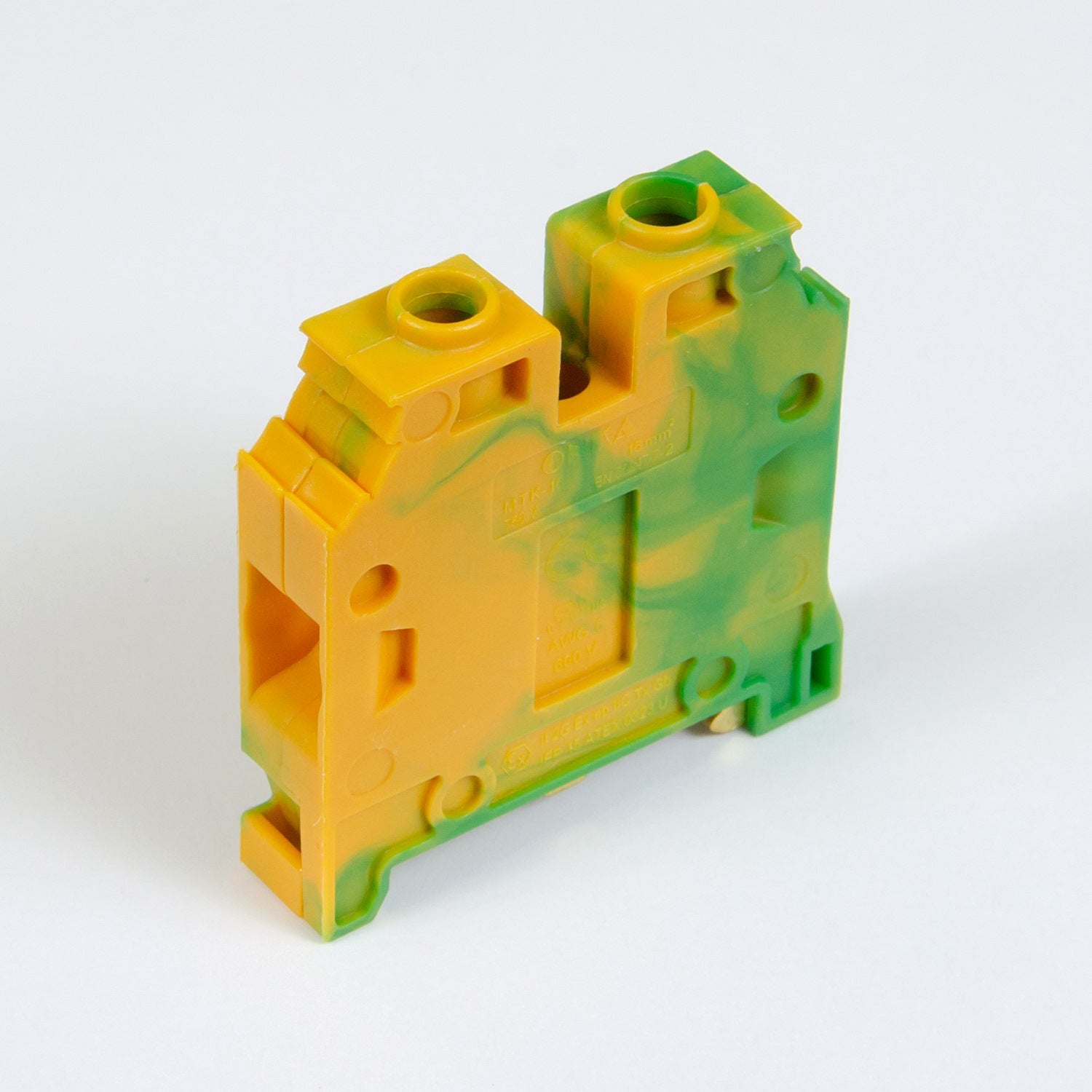

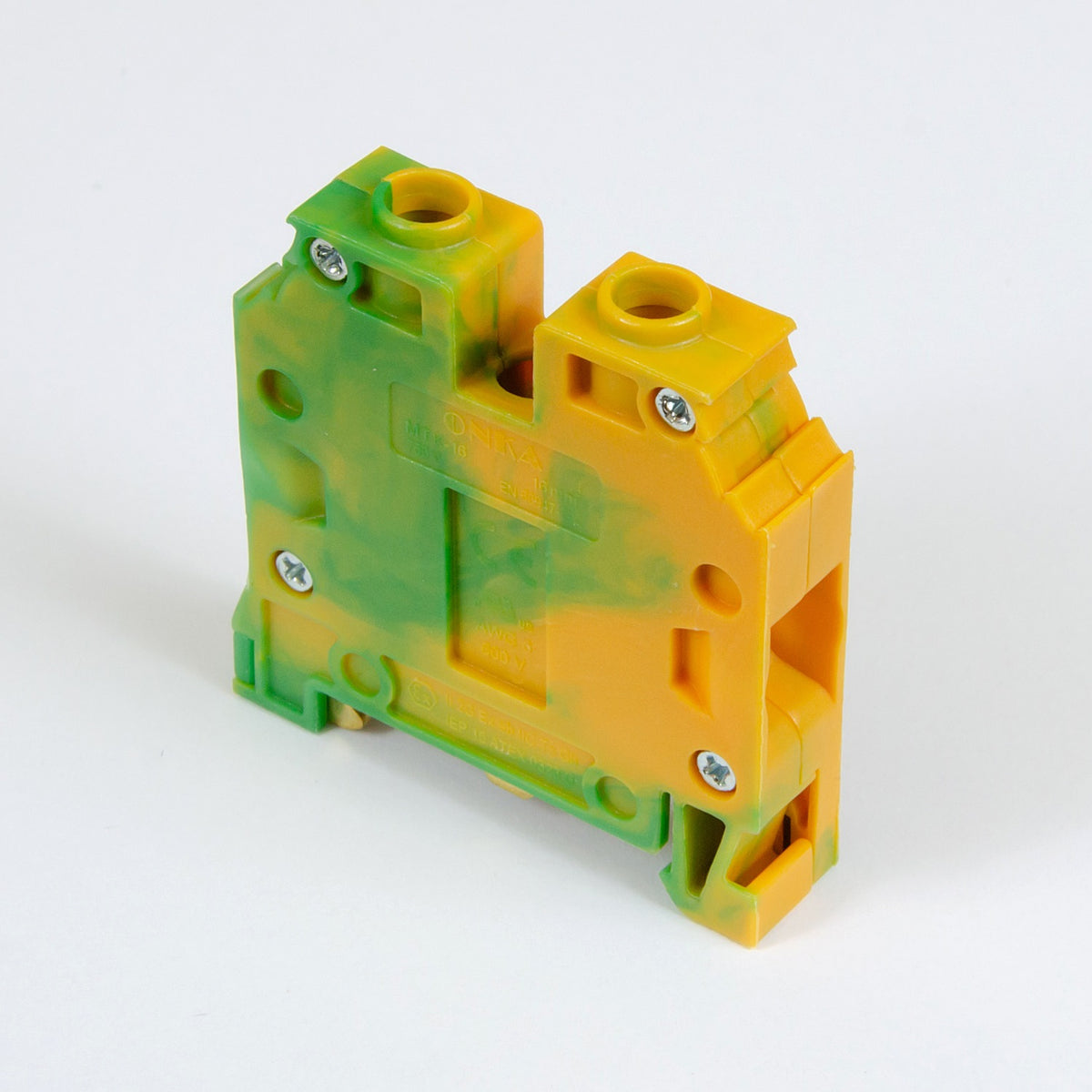

PE threaded busbar connector / DIN rail terminal 2-wire green-yellow, ONKA, made in Turkey
ONKA compact installation rail connectors provide wide possibilities for connecting wires of any cross-section. The transparent housing makes it easy to check the correct placement of wires. Original ONKA quick connectors ensure easy installation and 100% connection reliability.
Technical parameters
Cross-section of the individual wire to be connected up to: 16 mm2
Color: Greenish yellow (camouflage)
Main body insulation material: polyamide (PA6.6 )
Contact/flour material: CK45 steel/magnesium
Torque: 1.1 Nm
Connection position: side / side
Cable strip length: 16 mm
Electrical connection type: screw clamp
Rated voltage: 750 V
Operating temperature range: -40°C ... 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
