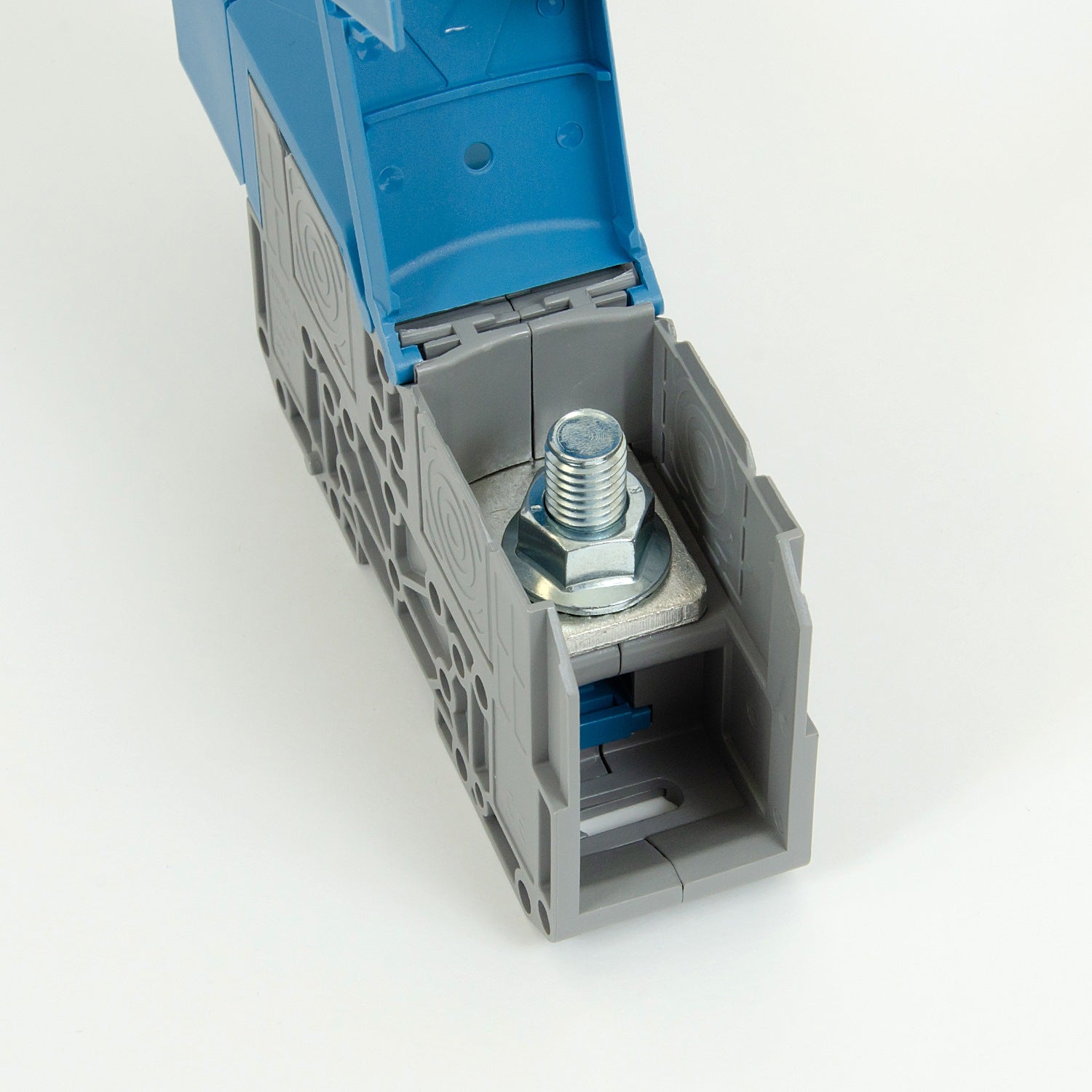

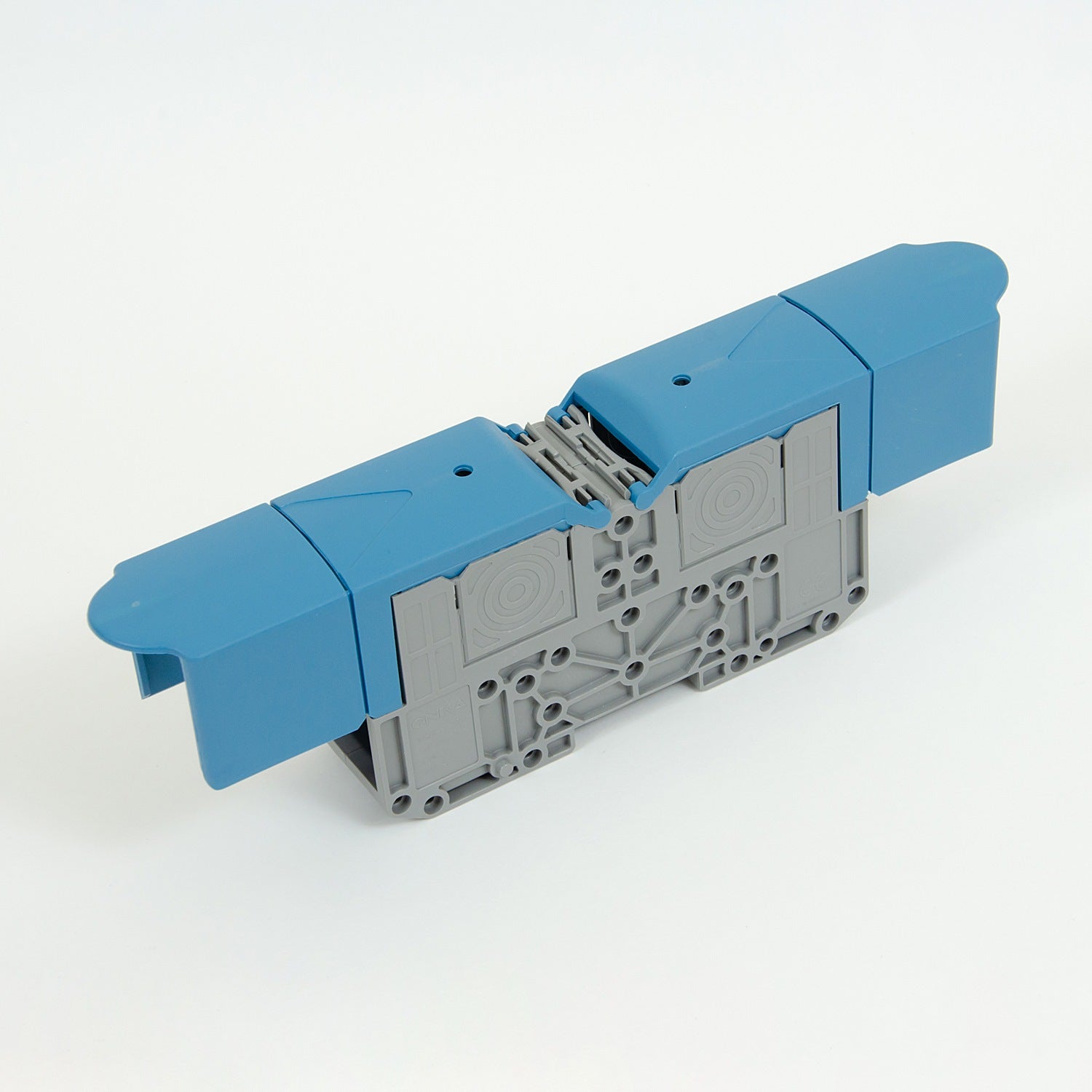

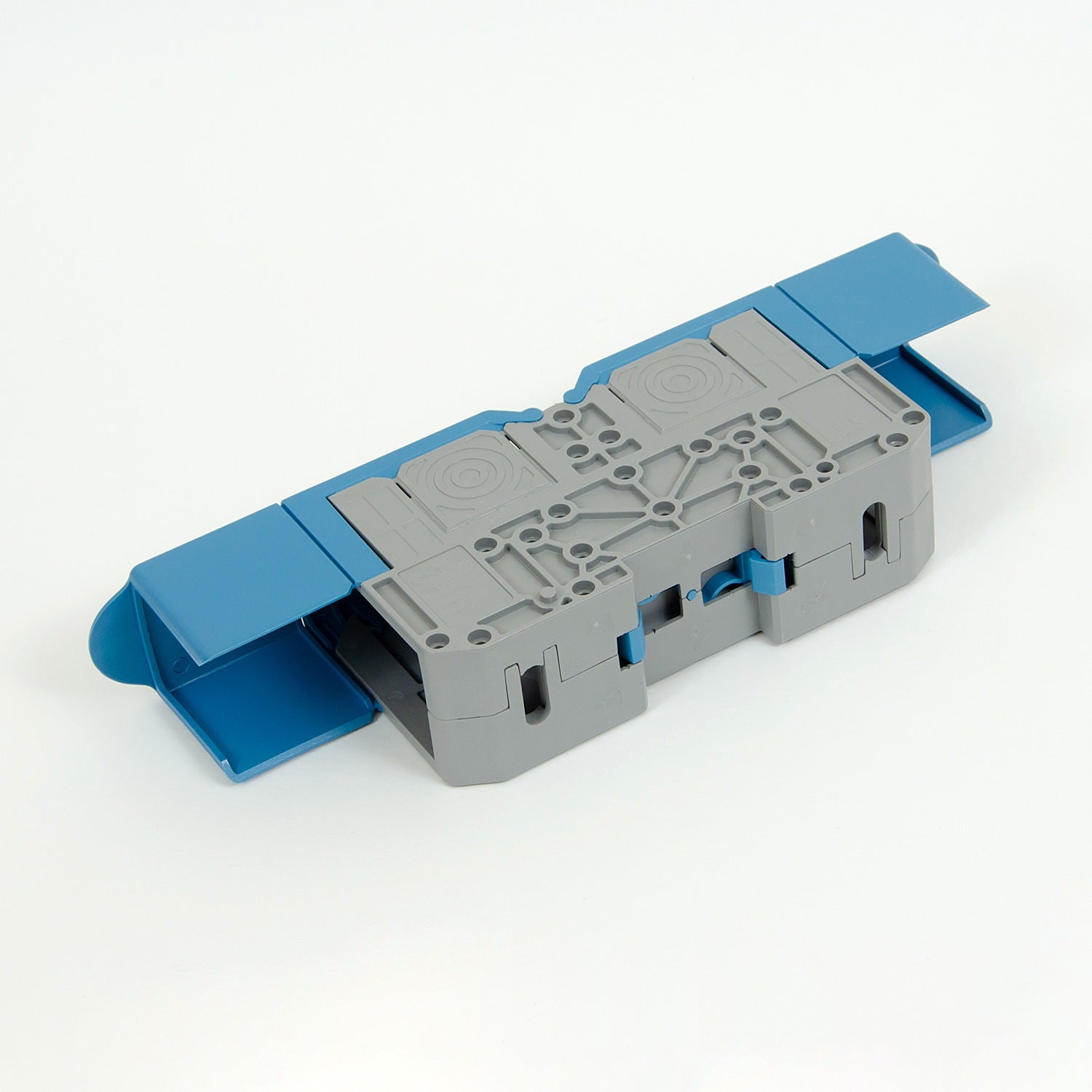

ONKA 150mm2 M12 Screw rail connector, DIN rail terminal with protective cap, blue, 1030091

M12, 150mm2, threaded busbar connector / DIN rail terminal with protective cap, blue, ONKA, made in Turkey

ONKA compact installation rail connectors provide a wide range of possibilities for connecting wires of various cross-sections. The transparent housing makes it easy to check the correct placement of wires. Original ONKA quick-connectors ensure easy installation and 100% connection reliability.

Technical parameters

Cross-section of the individual wire to be connected up to: 150 mm2
Color: blue
main body insulation material: polyamide (PA6.6 )
Contact/sleeve material: CK45 steel/copper
Connection position: side / side
Rated voltage: 1000 V
Rated current: 309A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
