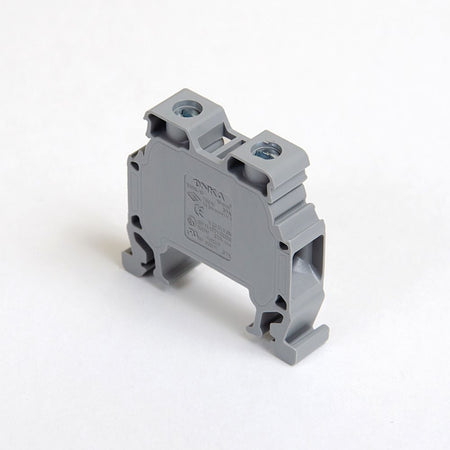

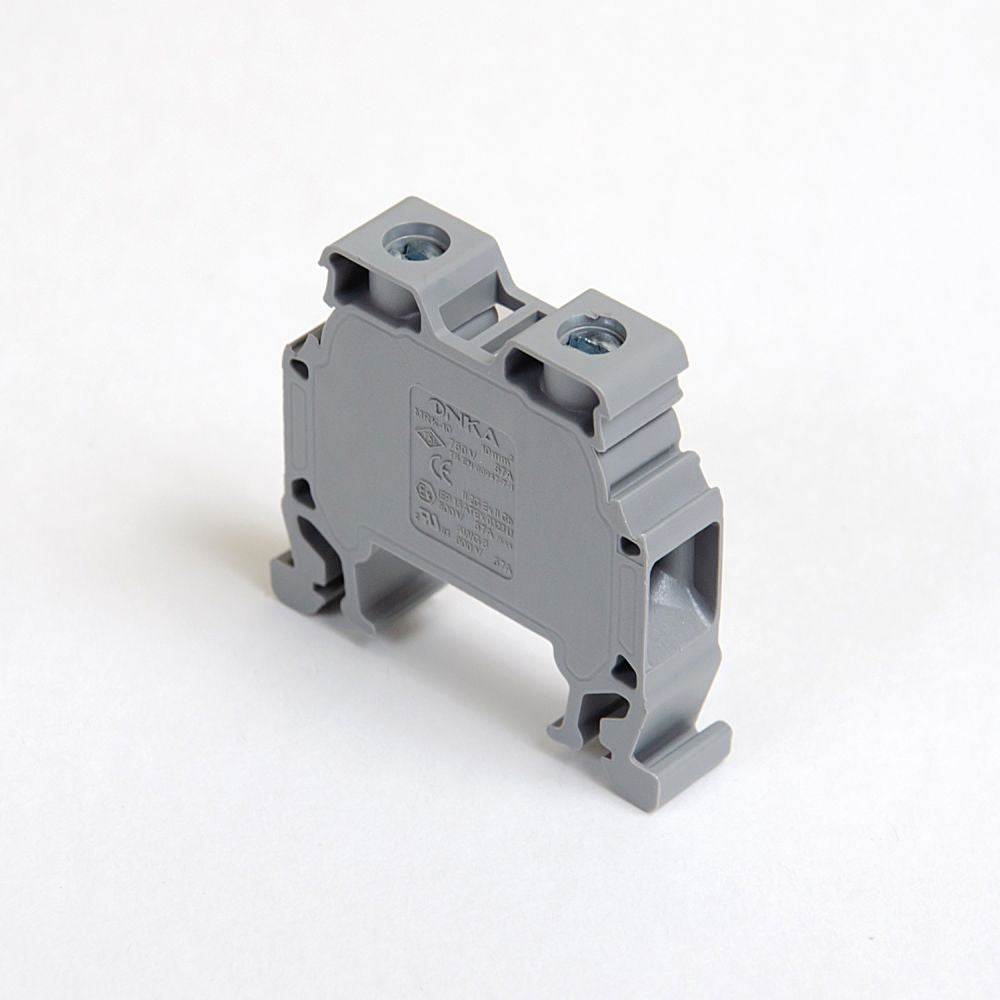

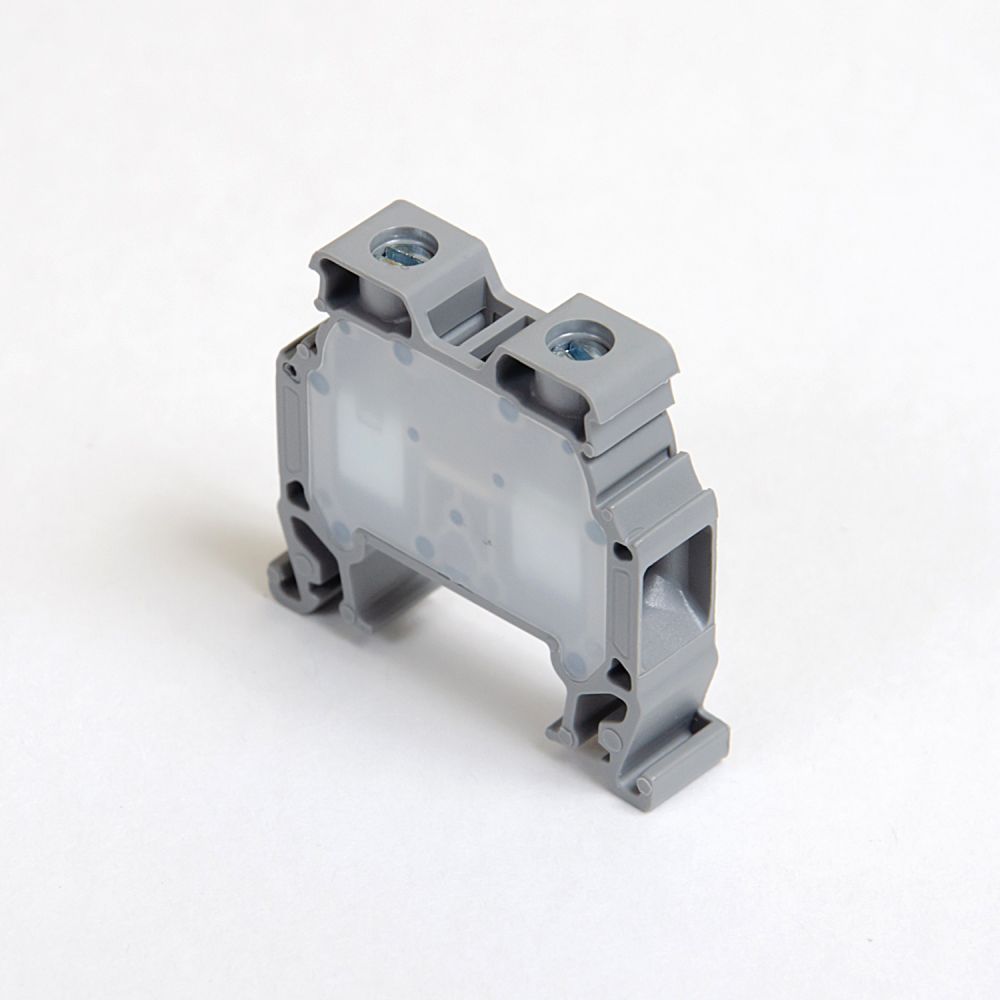

ONKA 10mm2 Screw Rail Connector Terminal Block DIN Rail Terminal, 2 Wires, Gray, 1010042

Threaded busbar connector / DIN rail terminal, 2 wires, gray, ONKA, made in Turkey

ONKA compact installation rail connector provides wide possibilities for connecting wires of different cross-sections. The transparent housing makes it easy to check the correct placement of wires. Original ONKA quick-connect couplings are easy to install and 100% connection reliability.

Technical parameters

Cross-section of the individual wire to be connected up to: 12 mm2
Color: gray
Main body insulation material: polyamide (PA6.6 )
Contact/ground material: CK45 steel/copper
Torque: 0.8 Nm
Connection position: side / side
Cable strip length: 10 mm
Electrical connection type: screw clamp
Rated voltage: 750 V
Rated current: 57A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
