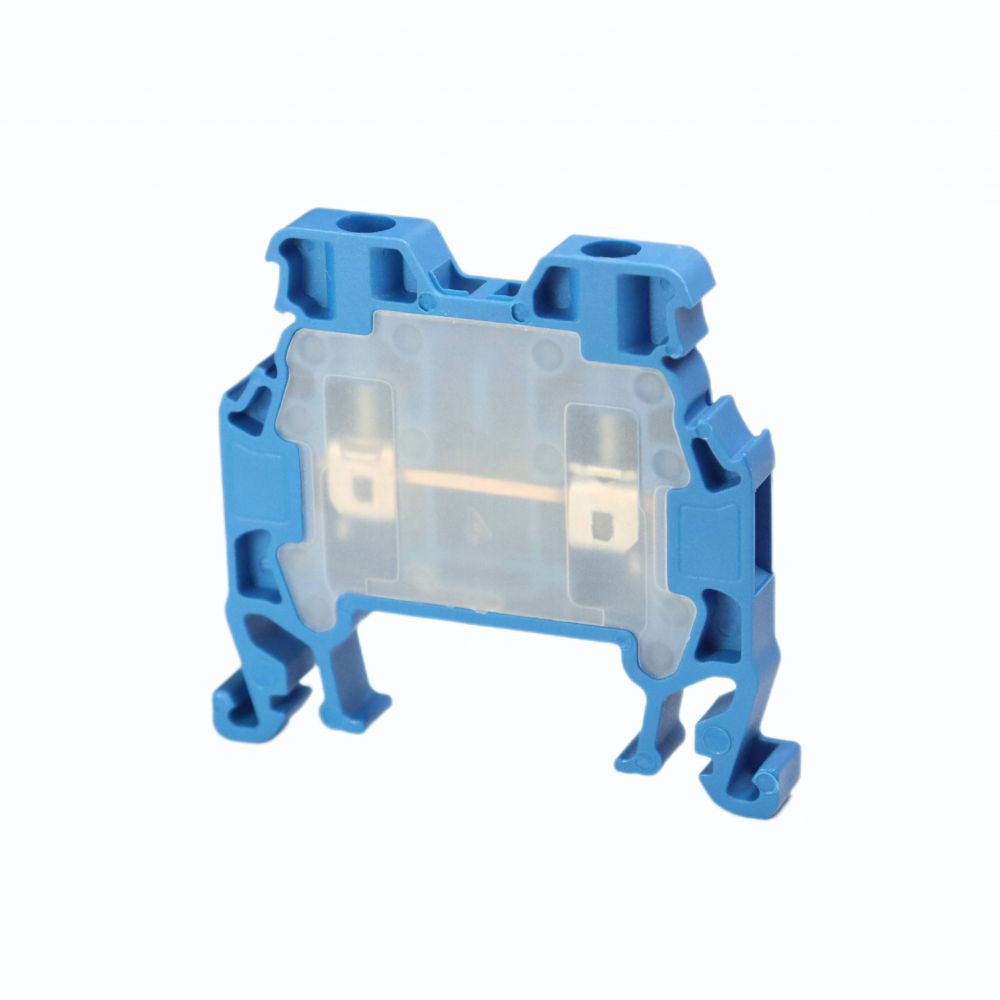

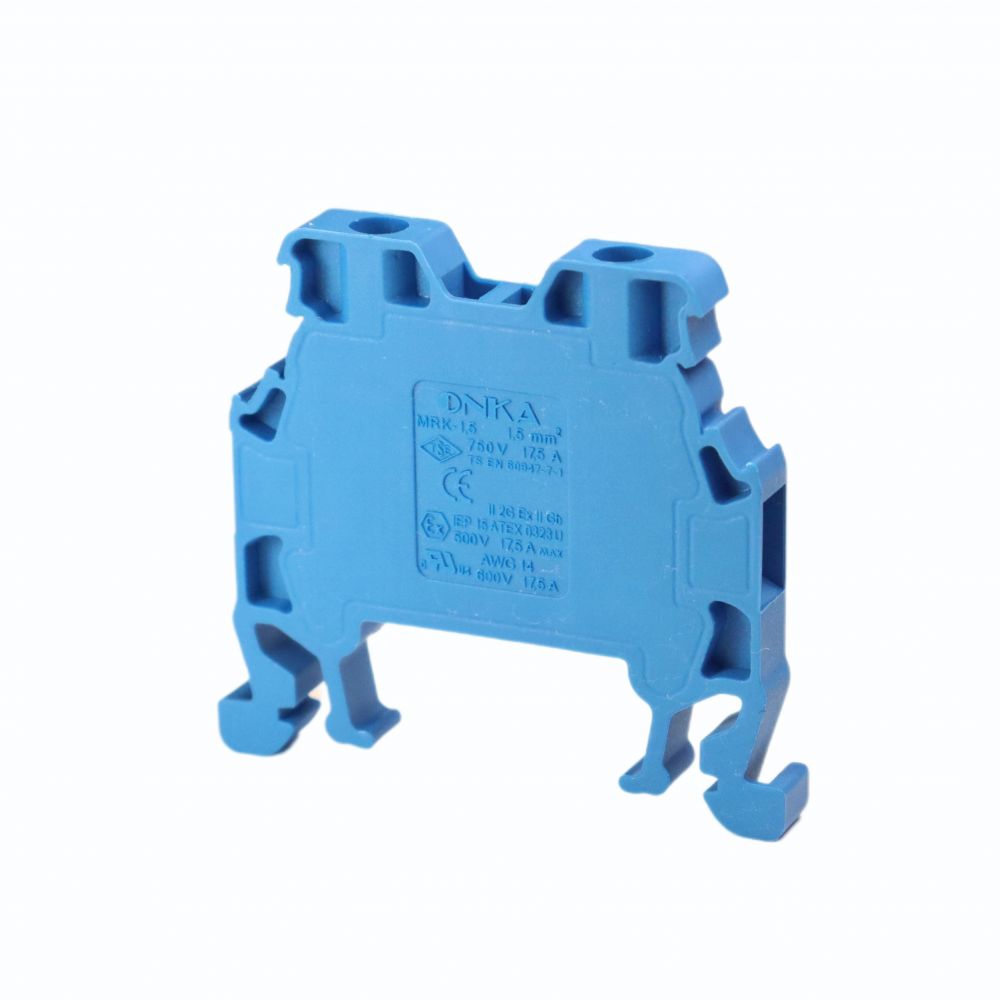

ONKA 1.5mm2 Screw Rail Connector Terminal Block DIN Rail Terminal, 2 Wires, Blue, 1010005

Threaded busbar connector / DIN rail terminal, 2 wires, blue, ONKA, made in Turkey

ONKA connector/terminal is a reliable solution for anyone looking for functional and durable elements in electrical installations.
The connector, made of high-quality materials, guarantees long-term use and resistance to mechanical damage.

Technical parameters

Cross-section of the individual wire to be connected up to: 1.5 mm2
Color: blue
main body insulation material: polyamide (PA6.6 )
Contact/grinding material: CK45 steel/magnesium
Torque: 0.4 Nm
Connection position: side / side
Cable strip length: 10 mm
Electrical connection type: screw clamp
Rated voltage: 750 V
Rated current: 17.5 A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
