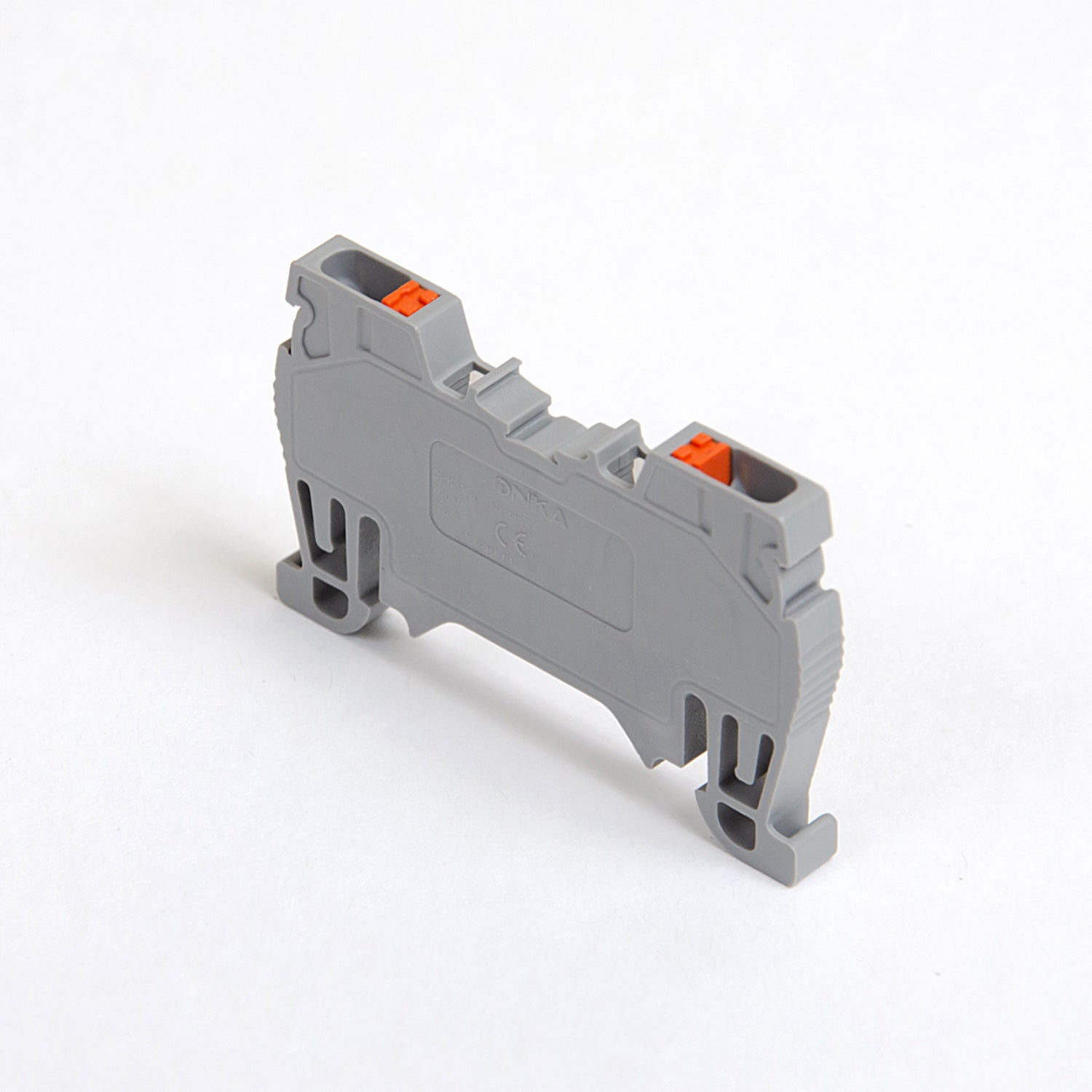

ONKA 1.5mm2 spring rail connector, DIN rail terminal, 2-wire, gray, 1020002

Spring-loaded busbar connector / DIN rail terminal, 2-wire, retractable contact, gray, ONKA, made in Turkey

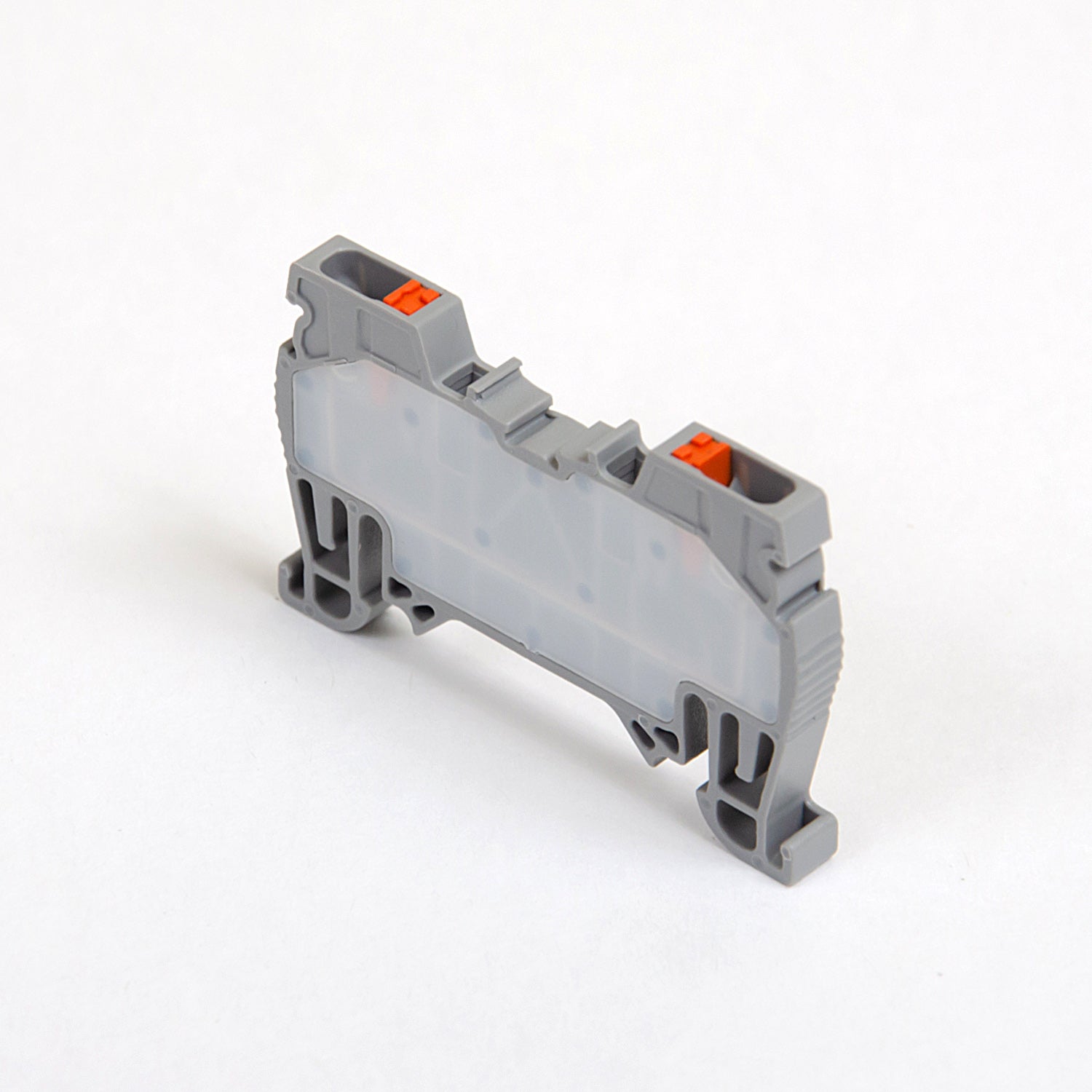

ONKA compact installation rail connector provides wide possibilities for connecting wires of different cross-sections. The transparent housing makes it easy to check the correct placement of wires. Original ONKA high-speed couplings are easy to install and 100% connection reliability.

Technical parameters

Cross-section of the individual wire to be connected up to: 1.5 mm2
Color: gray
Main body insulation material: polyamide (PA6.6 )
Contact/soil material: stainless steel/copper
Connection position: top/top
Cable strip length: 9 mm
Electrical connection type: spring clamp / retractable contact
Rated voltage: 750 V
Rated current: 17.5 A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
