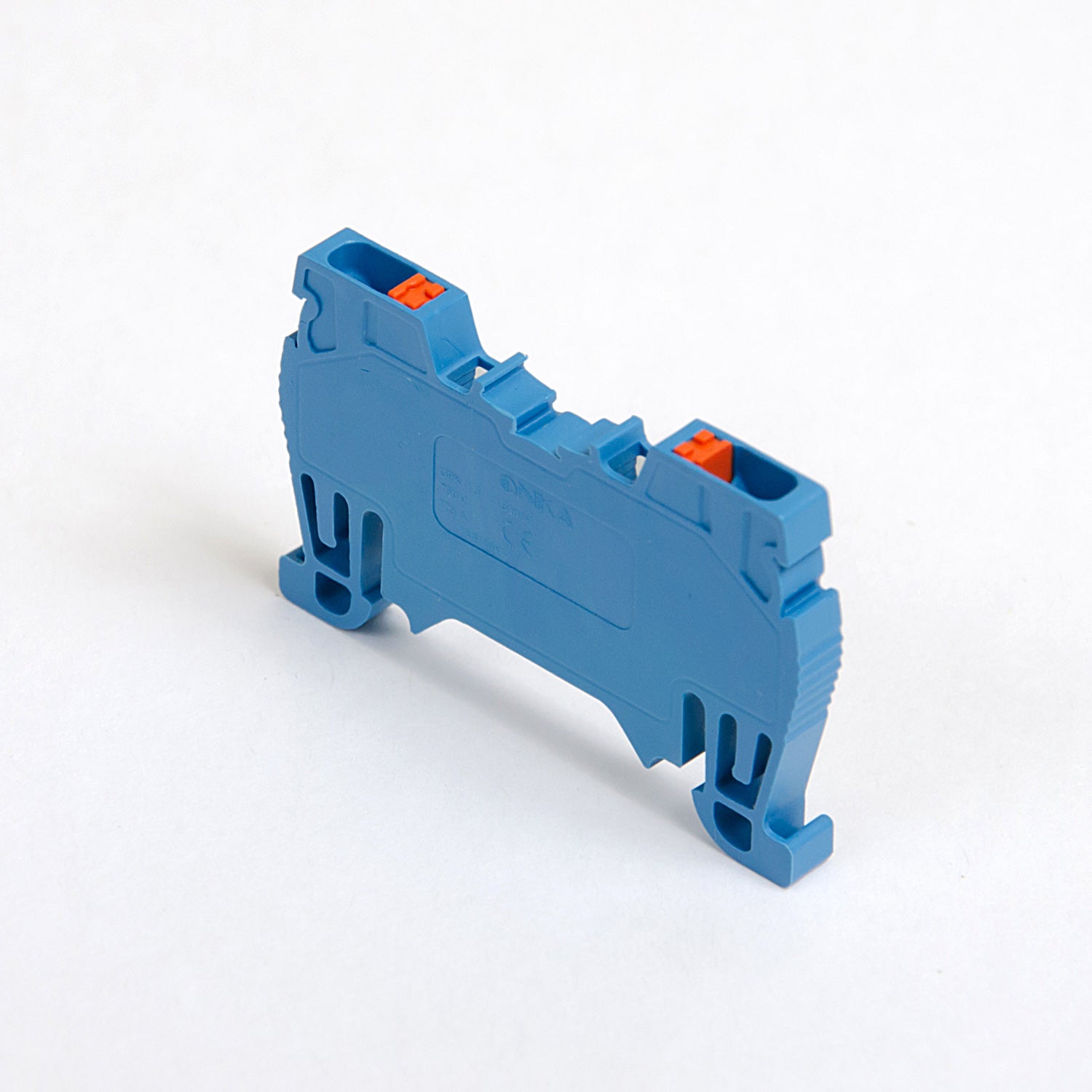

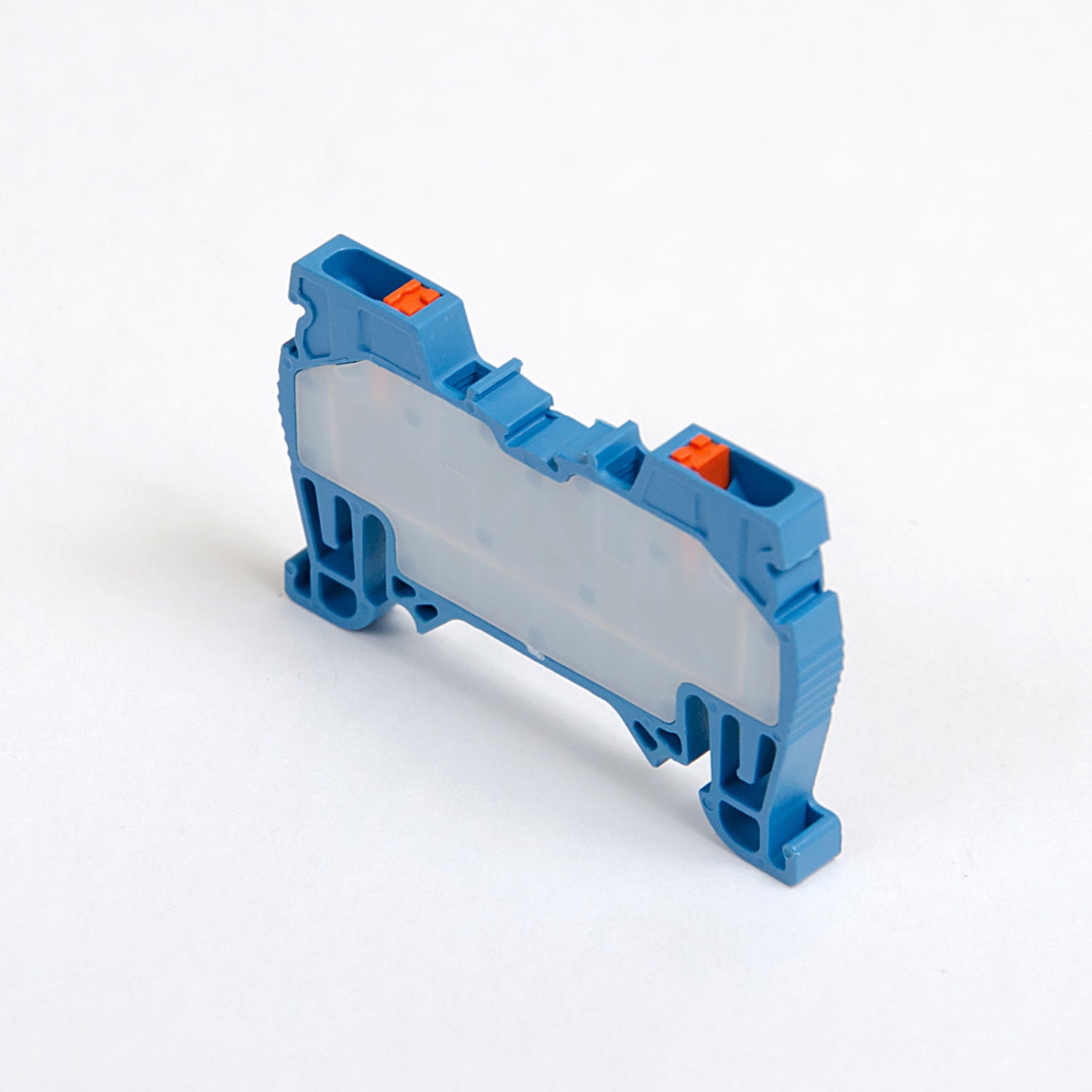

ONKA 1.5mm2 spring rail connector, DIN rail terminal, 2 wires, blue, 1020005

Spring-loaded busbar connector / DIN rail terminal, 2 wires, retractable contact, blue, ONKA, made in Turkey.

ONKA connector/terminal is a reliable solution for anyone looking for functional and durable elements in electrical installations.
The connector, made of high-quality materials, guarantees long-term use and resistance to mechanical damage.

Technical parameters

Cross-section of the connected individual wire up to: 1.5 mm2
Color: blue
main body insulation material: polyamide (PA6.6 )
Contact/mill material: stainless steel/copper
Torque: 0.4 Nm
Connection position: top/top
Cable strip length: 9 mm
Electrical connection type: spring clamp / retractable contact
Rated voltage: 750 V
Rated current: 17.5 A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Standard: EN-60947-7-1
