Modbus Gateway RS485 TCP/IP 230V Interface Converter

Protocol Converter RS485 → TCP/IP (Ethernet/WAN/LAN) - ETH-MOD-T | TENSE Turkey

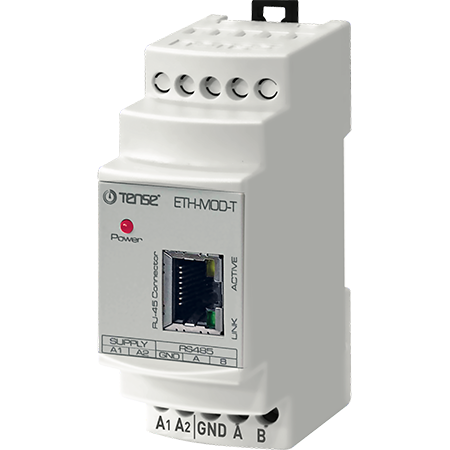

The TENSE Turkey ETH-MOD-T protocol converter is a compact network gateway designed to connect RS-485 (MODBUS RTU) devices to a local area network (LAN), large SCADA systems, OPC servers, or the internet via a WAN connection. It enables remote monitoring, supervision, and configuration using standard network infrastructure.

Key Features and Benefits

• RS-485 to TCP/IP (Ethernet/WAN/LAN) conversion.

• Suitable for SCADA, OPC, remote servers, and industrial automation systems.

• Compact design - only 2 modules (35 mm wide).

• Fast installation on 35 mm DIN rail

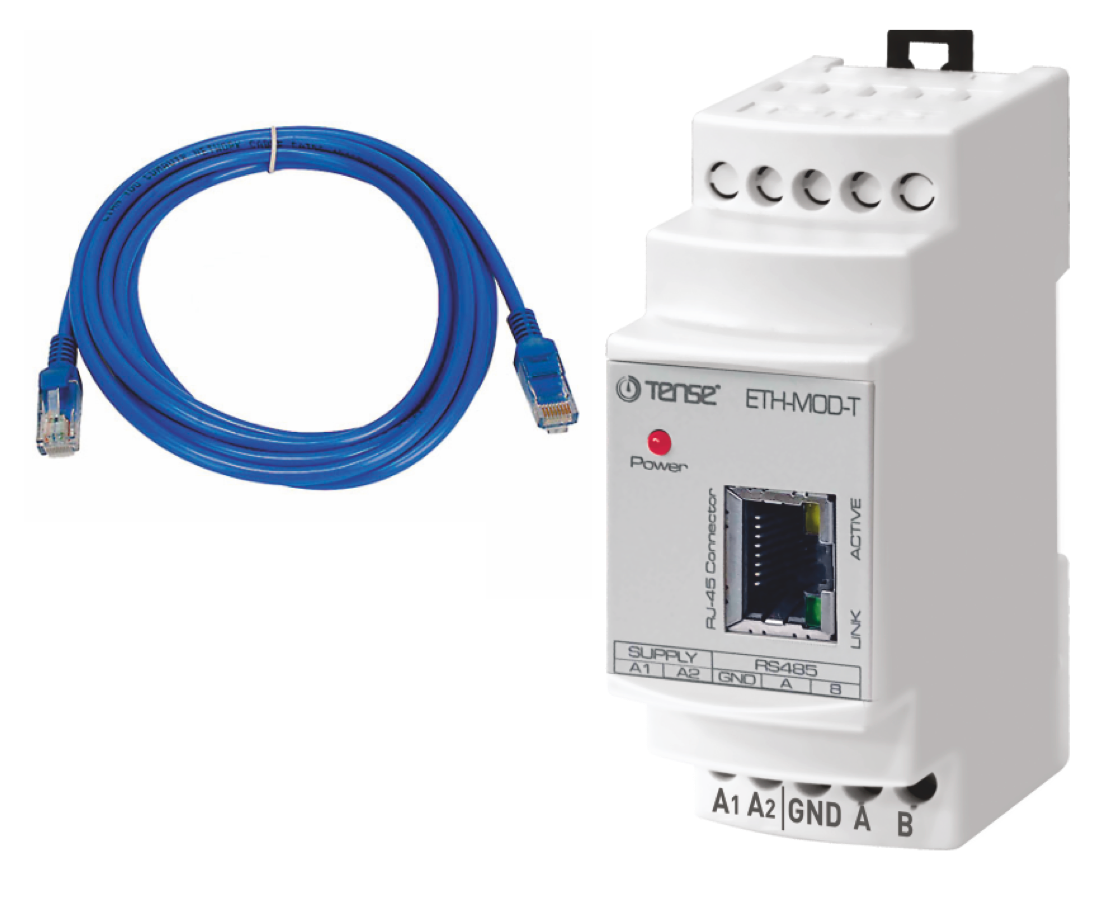

• Includes Ethernet cable (2 m)

• 220 V AC power supply

• Wide input voltage range 85-300 V, high overvoltage resistance

• Supports connection of up to 32 RS-485/MODBUS devices

• LED indication: power, network connection, communication

• Data transfer rate up to 115,200 bps

• Ethernet 10/100BASE-T

• Operating temperature: from -20 °C to +55 °C

• No additional cooling required

• Free software for gateway configuration

Protocol Compatibility

• The device works only with the MODBUS RTU protocol.

Applications

• Industrial control and automation

• SCADA systems

• Remote monitoring of electricity meters, energy meters, network analyzers.

• Connecting RS-485 devices to LAN/WAN infrastructure.

• Integration into IoT/IIoT systems
