Vendor: TENSE

Level switch / Filling level monitor, discharge level meter for borehole VSR-05 TENSE

Barcode: VSR-05
€30,60
€30,60
excl. VAT: €25
11 in stock
  • Description
  • Instructions
  • Payment methods
  • Warranty

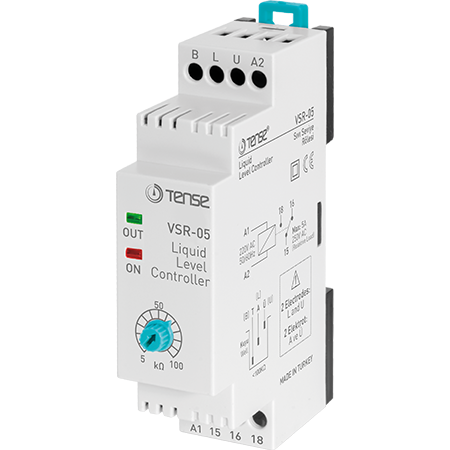

Water Level Control Relay VSR-05 - TENSE

Product Description

The VSR-05 relay is designed for automatic control of water pumping or transfer in tanks, wells, boreholes, or expansion vessels.

It supports the use of two or three level sensors and allows for sensor sensitivity adjustment to precisely control pumps.

Key Features

  • Water level control in tanks, wells, boreholes, and expansion vessels.

  • Supports two or three level sensors

  • Sensor sensitivity adjustment for precise control

  • Pump protection with recommended 2A circuit breakers (2 pcs)

  • Clamp connection for easy installation

Technical Parameters

  • Rated voltage: 220 VAC

  • Operating voltage range: 170-260 VAC

  • Operating frequency: 50/60 Hz

  • Operating power: < 3 VA

  • Operating temperature: -10 °C ... +50 °C

  • Dimensions: 22.5 × 75 × 85 mm

  • Weight: 250 g

Recommended Accessories

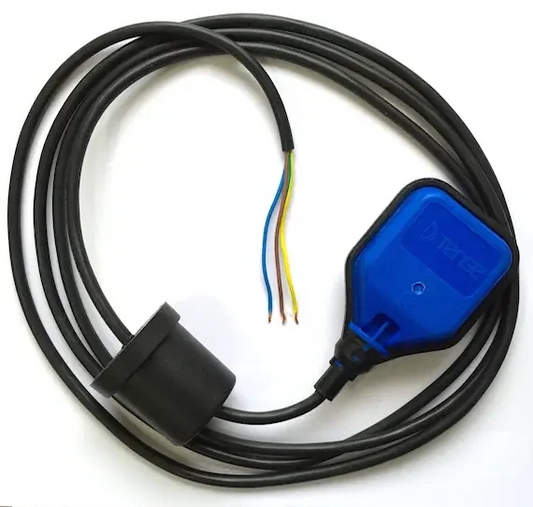

  • Level sensors (2 or 3 pcs depending on wiring)

  • 2A circuit breaker for input and output channel protection (2 pcs)

Applications

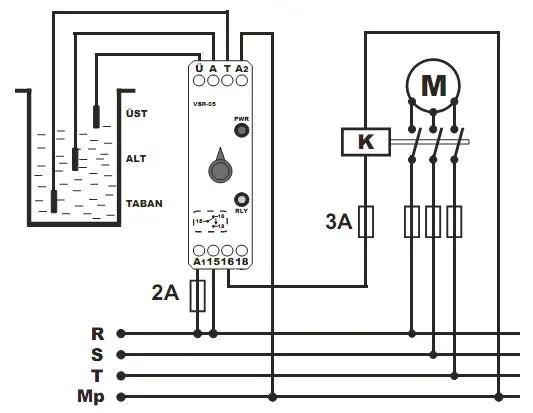

  • Automatic pump on/off control

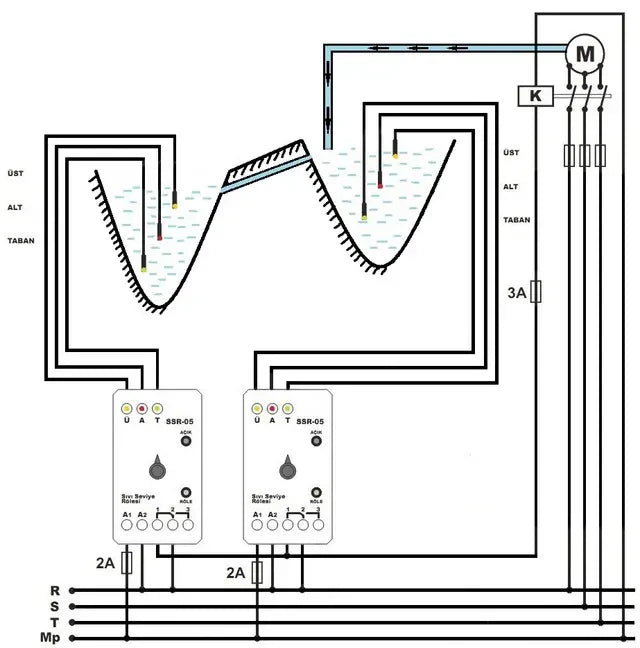

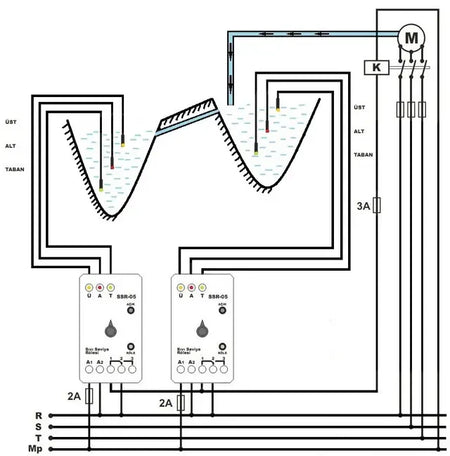

  • Water transfer control between tanks

  • Maintaining optimal water level in expansion vessels

  • Ideal for domestic and industrial applications

The electrical equipment we supply meets high quality standards, comes with a 24-month warranty, and complies with all EU requirements.
In case of claims, returns are free of charge.
