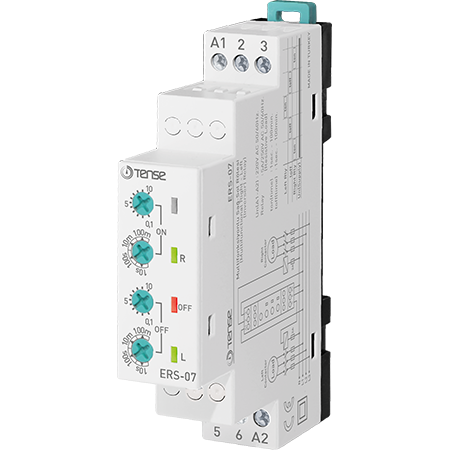

Time Reversal Cyclic Relay - "left-right / up-down / forward-backward"

Product Description

The Reversal Reversal Cyclic Time Relay is designed for alternately switching two independent loads. It allows operation in "left-right", " up-down", " forward-backward" modes, and is also ideal for reversing electric motors with a safety delay between switching operations.
Typical applications include automatic cycles in dishwashers, washing machines, door drives, lifting mechanisms, conveyors or motion systems.

Key Features

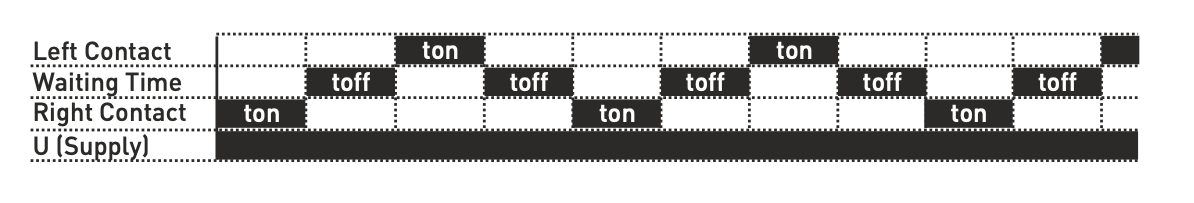

• Cyclic switching of two outputs according to the set time.

• Modes:

  • left - right

  • up - down

  • forward - reverse

• Built-in safety delay between switching operations

• Ton and Toff time setting, independent of choice

• Setting range from 0.1 s to 100 minutes for both times

• Suitable for controlling motors, actuators, valves, drives and AC loads.

Applications

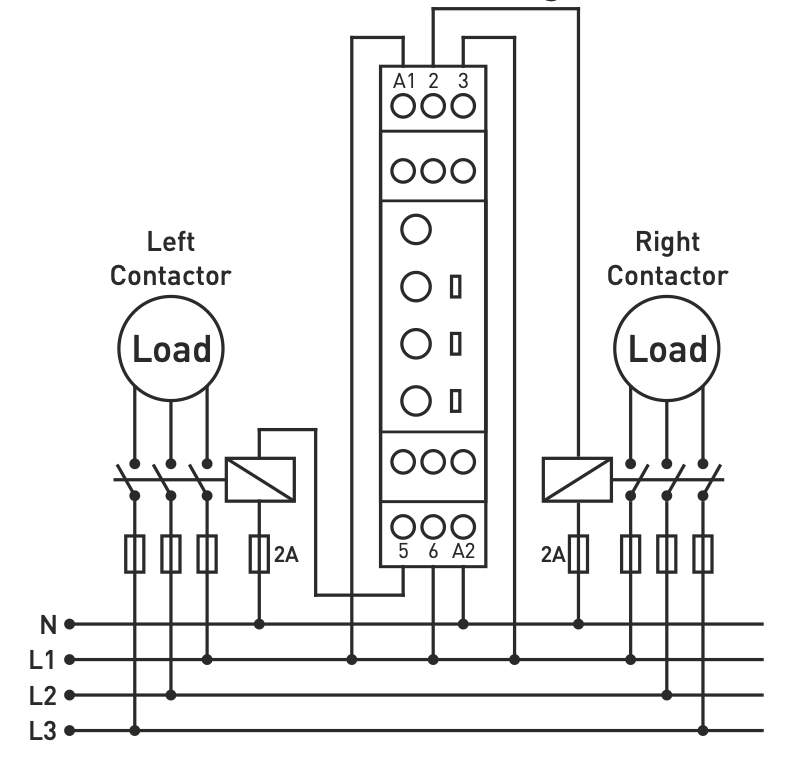

• Reversal operation of electric motors

• Automatic "back and forth" cycles

• Sliding mechanisms, lifting systems

• Two-mode ventilation and pumping systems

• Dishwashers, washing machines, conveyors

• Control of moving advertising elements or rotating devices

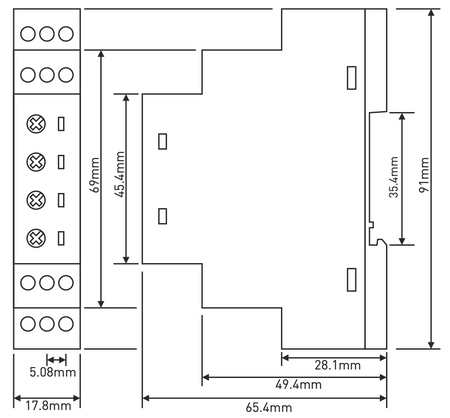

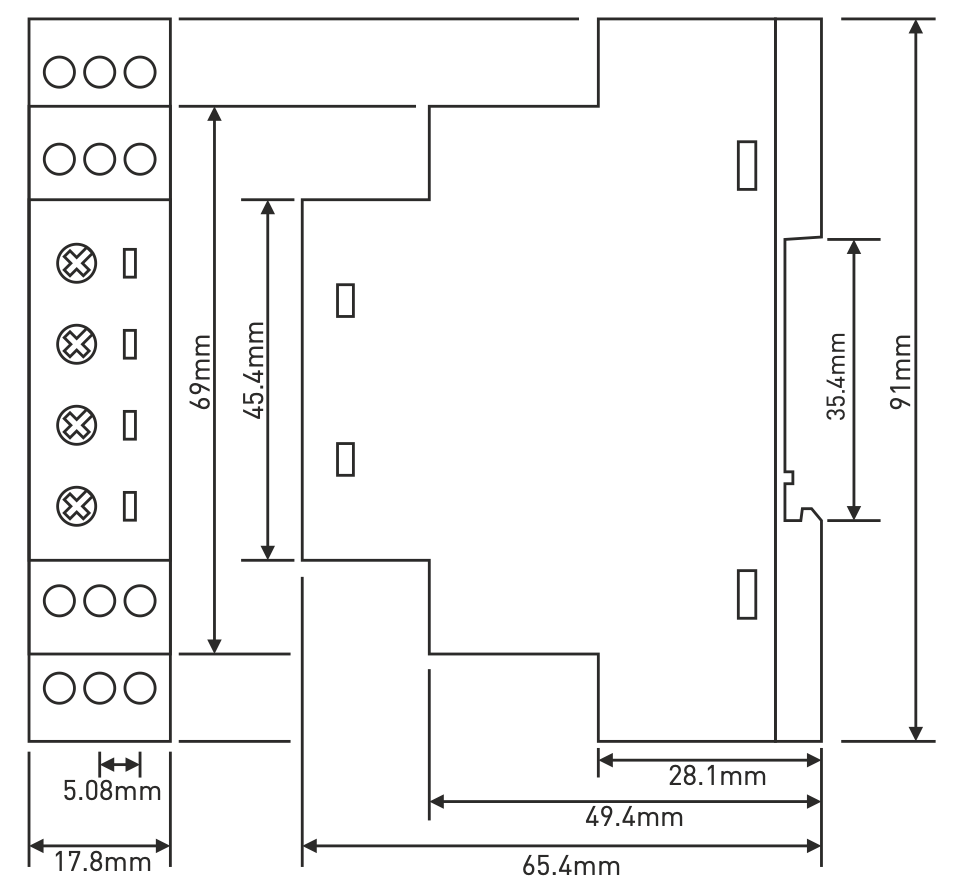

Mounting

• Installation on a standard 35 mm DIN rail

• Suitable for control cabinets, industrial enclosures and automation systems
