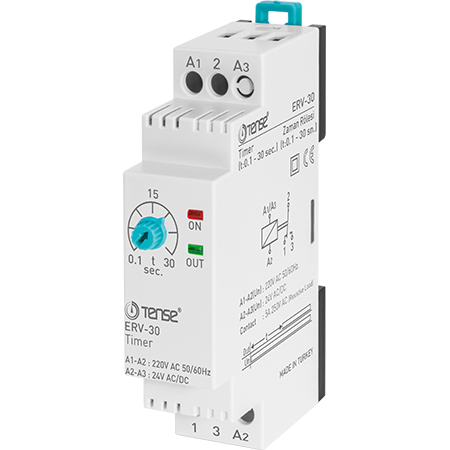

Time relay / ON-DELAY 24 V/AC/DC, 230 V/AC

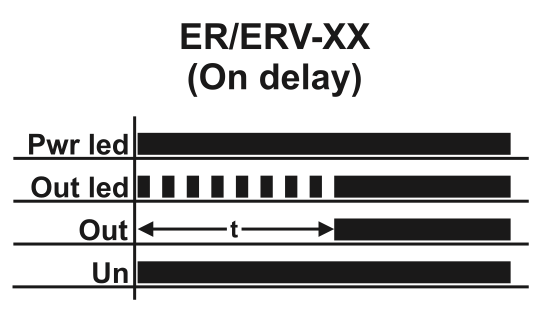

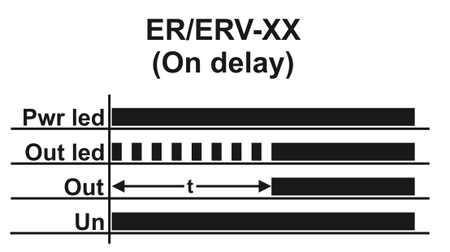

ON-DELAY / delay / time delay single-function relay with delayed pick-up 24 V/DC, 24 V/AC, 230 V/AC with 1 changeover contact.

The time delay relay is used to switch loads gradually: electric boilers, ovens, heaters, etc., and thus prevents current surges in the network and circuit breakers tripping due to large surges.

It can also be used to coordinate the switch-on time of multiple devices in machines, appliances or other equipment.

Time range:

ERV-03 - 0-3 s

ERV-12 - 0-12 sec.

ERV-30 - 0-30 sec.

ERV-60 - 0-60 sec.

ERV-03D - 0-3 min.

ERV-12D - 0-12 min.

ERV-30D - 0-30 min.

ERV-60D - 0-60 min.

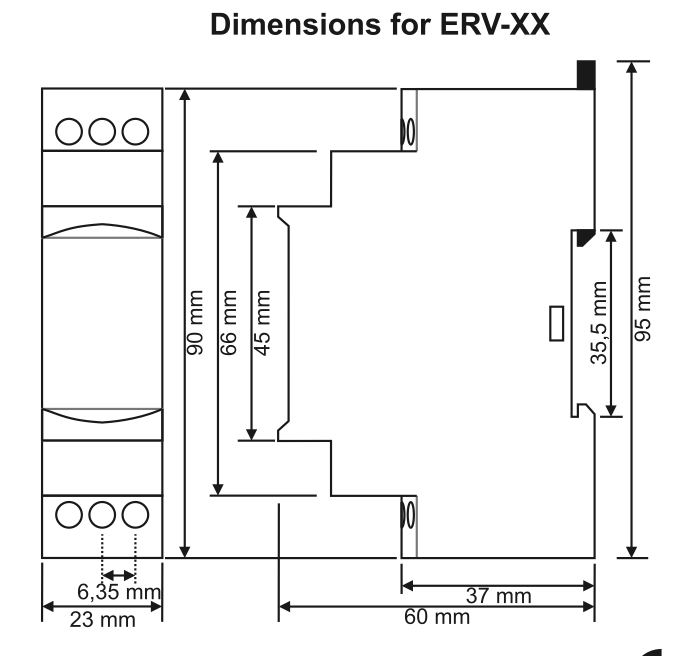

The time relay is mounted on a standard 35 mm DIN rail.
