Time delay relay (ON-DELAY) - 1 changeover contact, 230 V AC, 1/16 DIN

Product description:
A time delay relay is used to sequentially switch loads, thereby reducing current surges and preventing circuit breakers from tripping when high-consumption equipment is switched on. It can also be used to coordinate the switch-on time of several devices in machines, appliances or electrical circuits.

Key features:

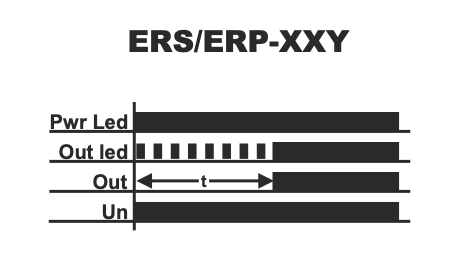

• Built-in ON-DELAY timer

• Power supply: 230 V AC

• 1 changeover contact (SPST)

• 8-pin socket design

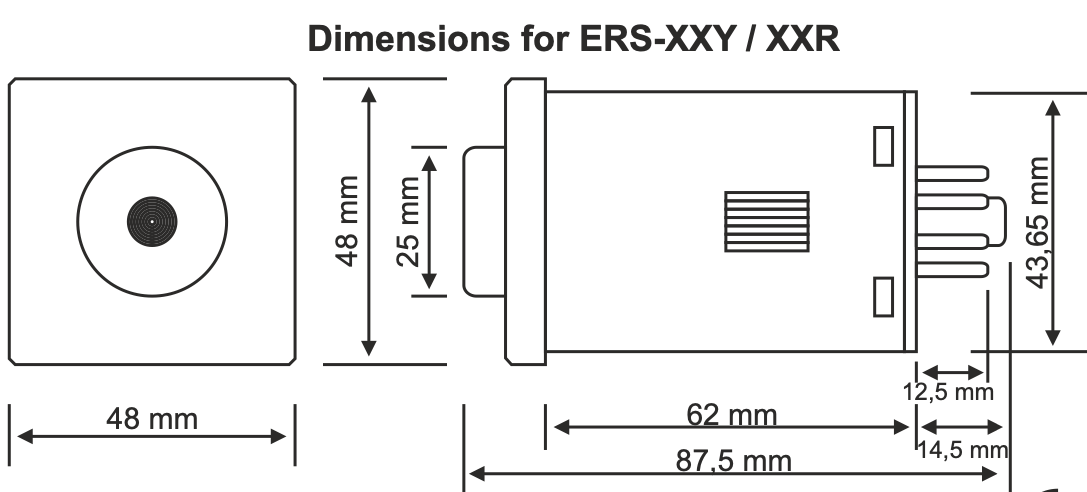

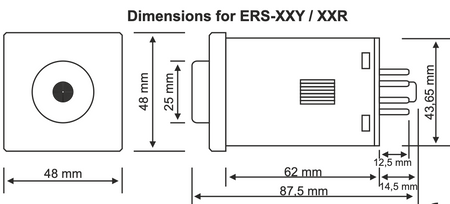

• Standard size 1/16 DIN (48 × 48 mm)

• Precise time setting with adjustable settings according to relay type

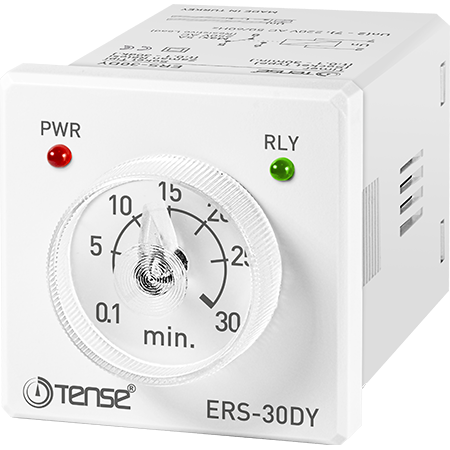

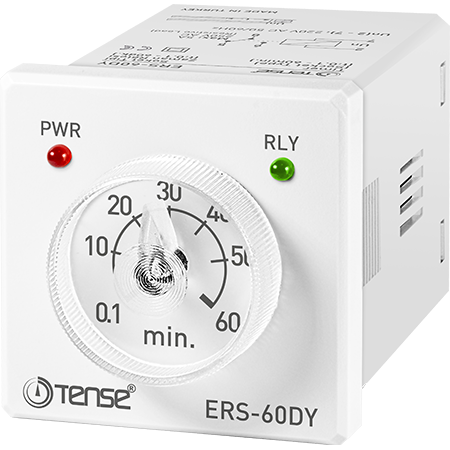

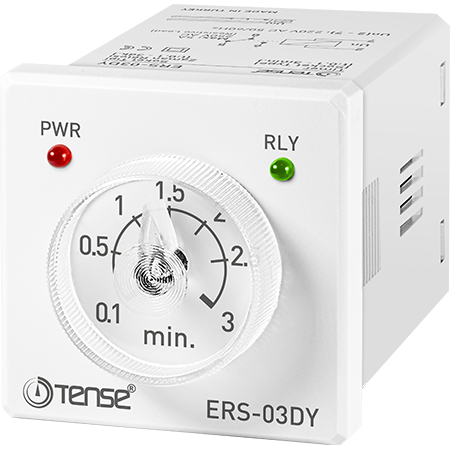

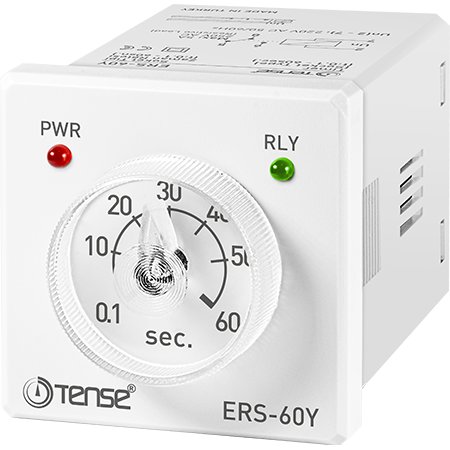

Time ranges for each model:

Usage:

• Step-by-step switching of electric boilers, ovens, heaters and other loads.

• Coordination of the switch-on of several devices in industrial machines or household appliances.

• Network protection against current surges when starting high-power equipment

Advantages:

• Easy installation thanks to the standard 1/16 DIN size

• Safe and reliable switching delay

• Universal application for various electrical equipment
