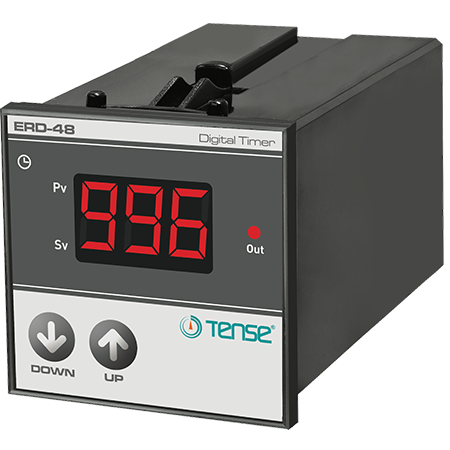

Time relay ERD-48 - TENSE

Delay Timer / Cyclic Pulse Relay / Symmetrical and Asymmetrical Pulse Generator
Size 48 × 48 mm

The ERD-48 time relay is designed to create time delays or generate cyclic pulses for controlling various processes in automation and control systems (ACS).
It is particularly suitable for use in:

• AC systems,

• swimming pool and technology control,

• emergency and safety systems,

• general automation and sequential equipment control.

Key features

• Two basic functions

  • Power-on delay timer

  • Cyclic relay (pulse generator - symmetrical/asymmetrical pulses)

• Wide time range:
  from 0.1 s to 999 minutes

• Time countdown indication - digital display of remaining time (cooling time)

• Simple connection via terminal block

• Suitable for universal use in AC networks 100...240 V

Technical specifications

Mechanical and display parameters

• Mounting hole: 46 × 46 mm

• Overall device size: 48 × 48 mm

• Display: 3-digit 7-segment LED display

Functions:

• Instantaneous output after start (Out2)

• Delayed output after start (Out1)

Inputs

• START input: contacts 11-12

  • 100...240 V AC, 50/60 Hz

  • Maximum consumption 3 mA

  • Timing

• Ranges:

  • 99.9 s

  • 999 s

  • 99.9 min

  • 999 min
    (optional)

• Resolution:

  • 0.1 s / 1 s / 0.1 min / 1 min

• Accuracy: ±1.5 % of set value

Outputs:

• Out1 - delayed output:

  • NO-O-NC relay

  • 250 V AC, 2 A (resistive load)

• Out2 - instantaneous output:

  • NO-O relay

  • 250 V AC, 2 A (resistive load)

Power supply

• Supply voltage: 100...240 V AC, 50/60 Hz

• Power consumption: < 5 VA

Environmental conditions

• Operating temperature: -20 °C to +55 °C

• Operating altitude: up to 2000 m
