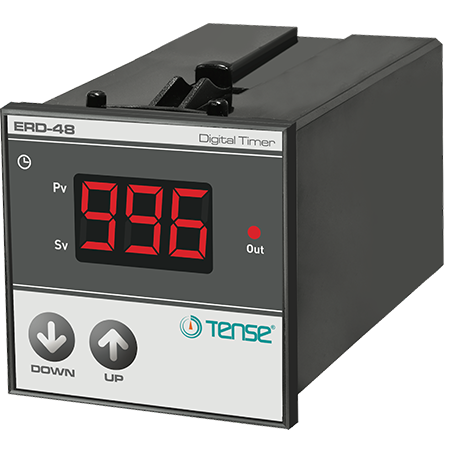

Cyclic Timer + ON-DELAY Relay with LED Display - TENSE ERD-48K (230 VAC)

Product Description

The TENSE ERD-48K time relay combines two functions in one device - ON-Delay and Cyclic control. It is designed for installation on a panel or cabinet door and is equipped with an easy-to-read LED display, allowing for easy time setting and checking of the current status.

The device is suitable for automatic control of lighting, ventilation, motors, alarms and other loads where sequential or repeated switching is required.

Key Features

• ON-Delay - activates the output after the set time expires.

• Cyclic mode (flasher) - periodically switches loads on and off.

• Modes:

  • Flasher at pulse start

  • Flasher at pause start

• LED display for easy setting and remaining time display

• Suitable for 48×48 mm panel mounting

Time Setting

Four selectable ranges:

• 0-99.9 seconds

• 0-999 seconds

• 0-99.9 minutes

• 0-999 minutes

Range selection is done directly on the front panel.

Applications

• Automatic lighting on/off

• Ventilation with cyclic operation

• Control of heating and cooling devices

• Control of signal lights or audible warnings

• Industrial time processes and automation

Power Supply and Installation

• Operating voltage: 230 VAC

• Installation: panel/cabinet door (48×48 mm)
