Vendor: TENSE

Time delay relay 230 V/AC (ON DELAY) 48 x 48 mm

Barcode: ERP-03Y
€9,02
€17,84
€9,02
excl. VAT: €7
-49%
Low stock: 9 left
Time range: 0-3s
  • Description
  • Instructions
  • Payment methods
  • Warranty

Time relay ON-OFF ERP (TENSE)

Description:
Time delay ON-DELAY built-in single-function 230 V/AC relay with one switching contact. The relay is used to sequentially switch loads such as electric boilers, ovens, heaters, and prevents current surges in the network, which could cause circuit breakers to trip during large overvoltages. It can also be used to coordinate the turn-on time of multiple devices in machines, appliances, or other equipment.

Technical parameters:

  • Power supply: 230 V AC.

  • Output: 1 × switching contact (SPDT).

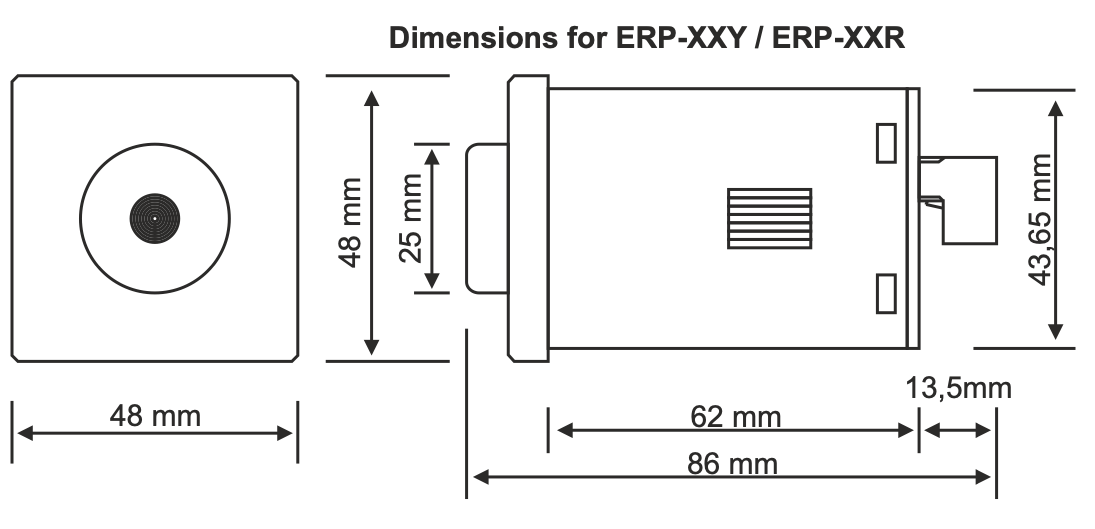

  • Mounting: 8 pins, 1/16 DIN (48 × 48 mm).

Time range:

ERP-03Y: 0-3 s

0-3 s

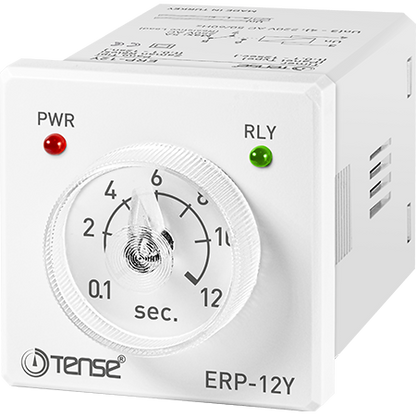

ERP-12Y

0-12 s

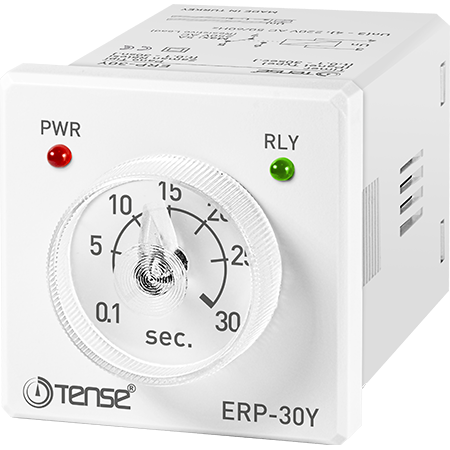

ERP-30Y

0-30 s

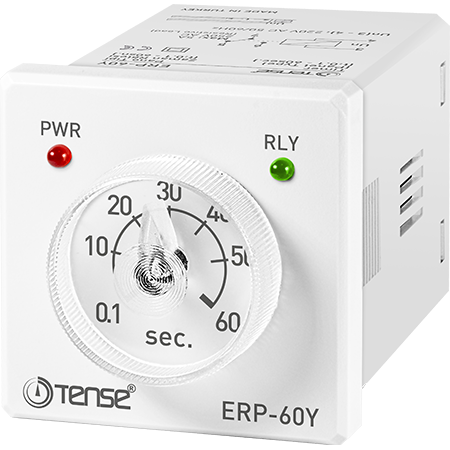

ERP-60Y

0-60 s

ERP-12DY

0-12 min

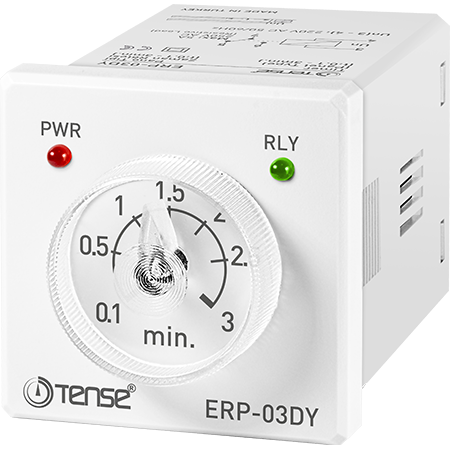

ERP-03DY

0-3 min

ERP-30DY

0-30 min

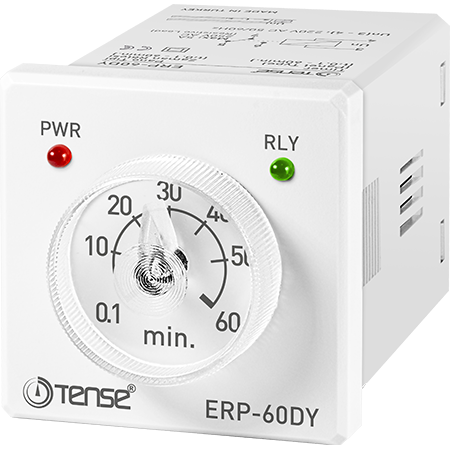

ERP-60DY

0-60 min








Usage:

  • Sequential switching of loads (electric boilers, ovens, heaters)

  • Protection against power grid surges

  • Coordination of multiple device turn-on times

Advantages:

  • Reliable and precise time relay

  • Easy installation on DIN rail

  • Universal application for industrial and domestic uses

Category: Industrial relays, Automation, Time relays, Industrial relays

Download to

User Manual

The electrical equipment we supply meets high quality standards, comes with a 24-month warranty, and complies with all EU requirements.
In case of claims, returns are free of charge.
