Plastim

Roof fan, switchboard fan, 970m3/h, 230VAC, 364x364x107mm, IP54, PTS6000

In stock - 7 items available
SKU: PTS6000
€348,84 with VAT

Online payment by card - after completing the order you will be redirected to the payment gateway, confirmation of payment will be sent to your email

Cash on delivery - payment according to the payment terms, which you will pay to the driver of the transport company

By bank transfer - you will receive an advance invoice to your email no later than the next business day, in which you will find the account number, which you will enter during payment.

On account - this payment option is used by partners who have concluded a framework agreement with our company.

If you want to use the last 2 methods, call our manager and he will give you instructions on how to receive an invoice with or without VAT.

The electrical equipment we supply meets high quality standards, has a 24-month warranty, and meets all EU requirements.

No fees are charged for returning goods.

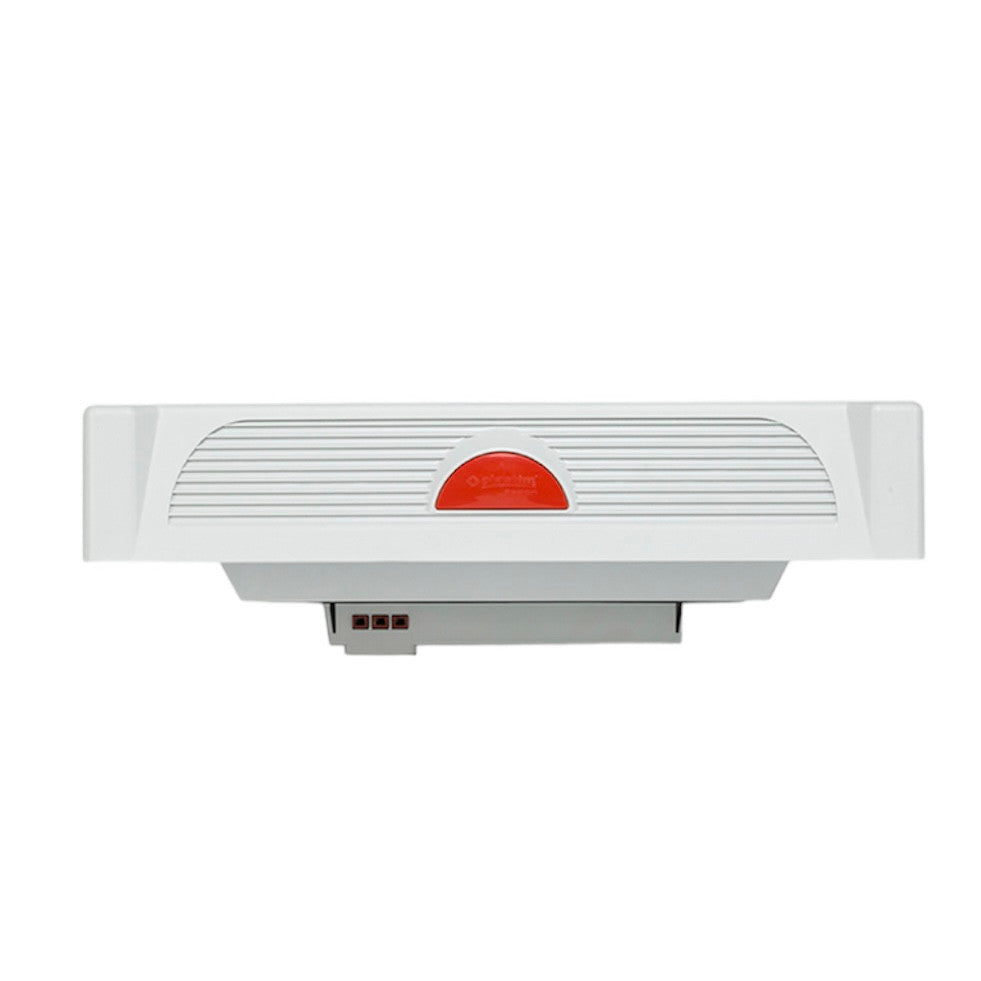

Fan in housing for installation on the roof of the switchgear cabinet, PTS6000, PLASTIM (Turkey)

This fan is designed for use in a microclimate system in a switchboard or automation panel and is usually used in conjunction with a PTVT or PTHVT thermostat. It is installed on the roof of the cabinet, allowing excess hot air to be removed from the cabinet volume as efficiently as possible.

Although the fans have the same overall dimensions, they differ in the amount of air they expel and the noise level.

  • External dimensions: 364x364x107 mm.
  • Installation dimensions: 178x178 mm
  • Volume flow rate: 970 m3/h
  • Noise level: 72 (73) dB(A)
  • Bearing: ball bearing
  • Service life: 50000 h
  • Operating voltage: 220-230VAC, 50/60Hz
  • Current consumption: 0.38/0.44 A
  • Rated power: 85/90 W
  • Electrical connection: 3-pole 2.5 mm2 terminal
  • Flow direction: Air flow is directed from the inside of the cabinet to the outside.
  • Operating temperature: -10/+70 °C
  • Protection degree: IP54
  • Plastic material: UL94 V0 ABS Fireproof
  • Seal: polyurethane seal
  • Color: RAL 7035
  • Weight: 3.16 kg
  • Installation: quick-attach

To ensure automatic air exchange and temperature maintenance with this fan, you will need either a simple bimetallic thermostat or a more complex temperature controller, both devices can be purchased on our website.
