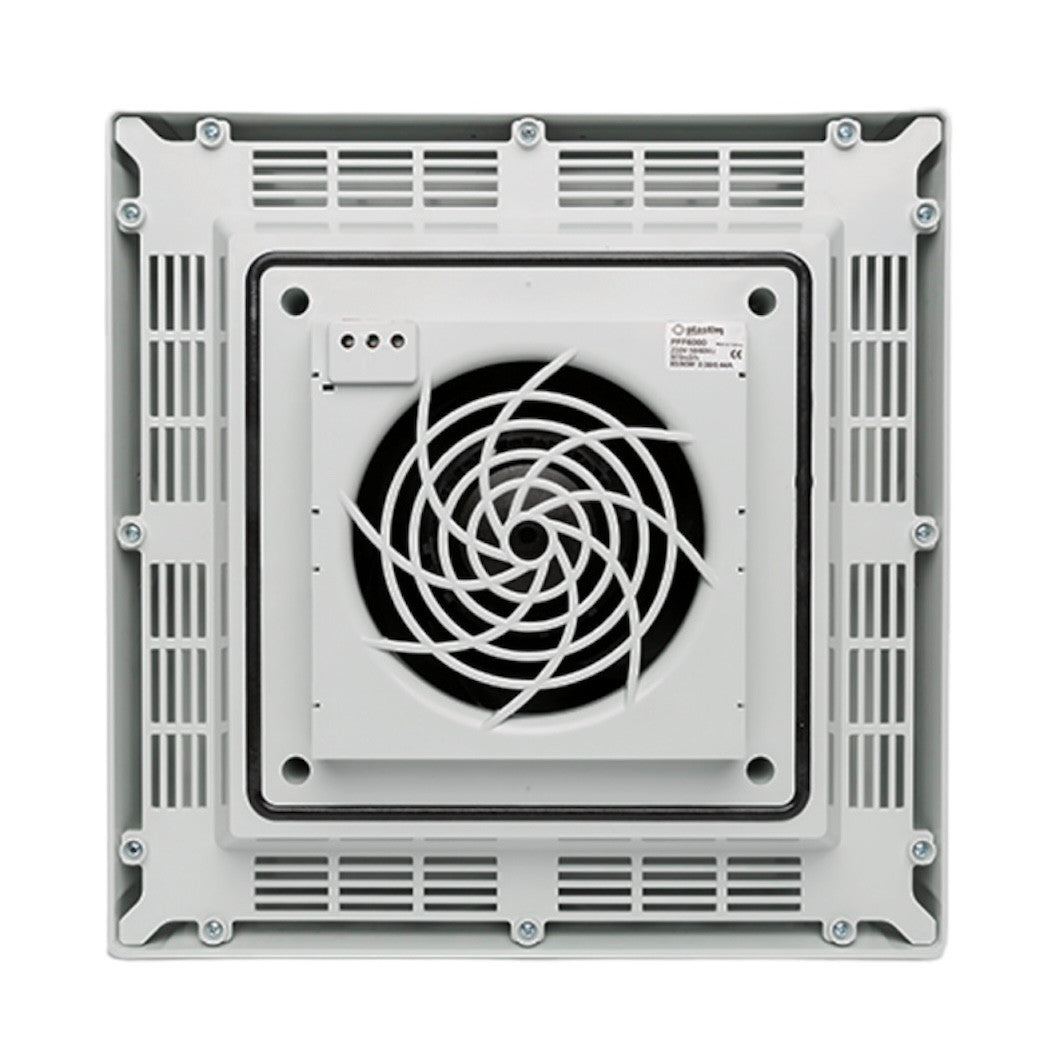

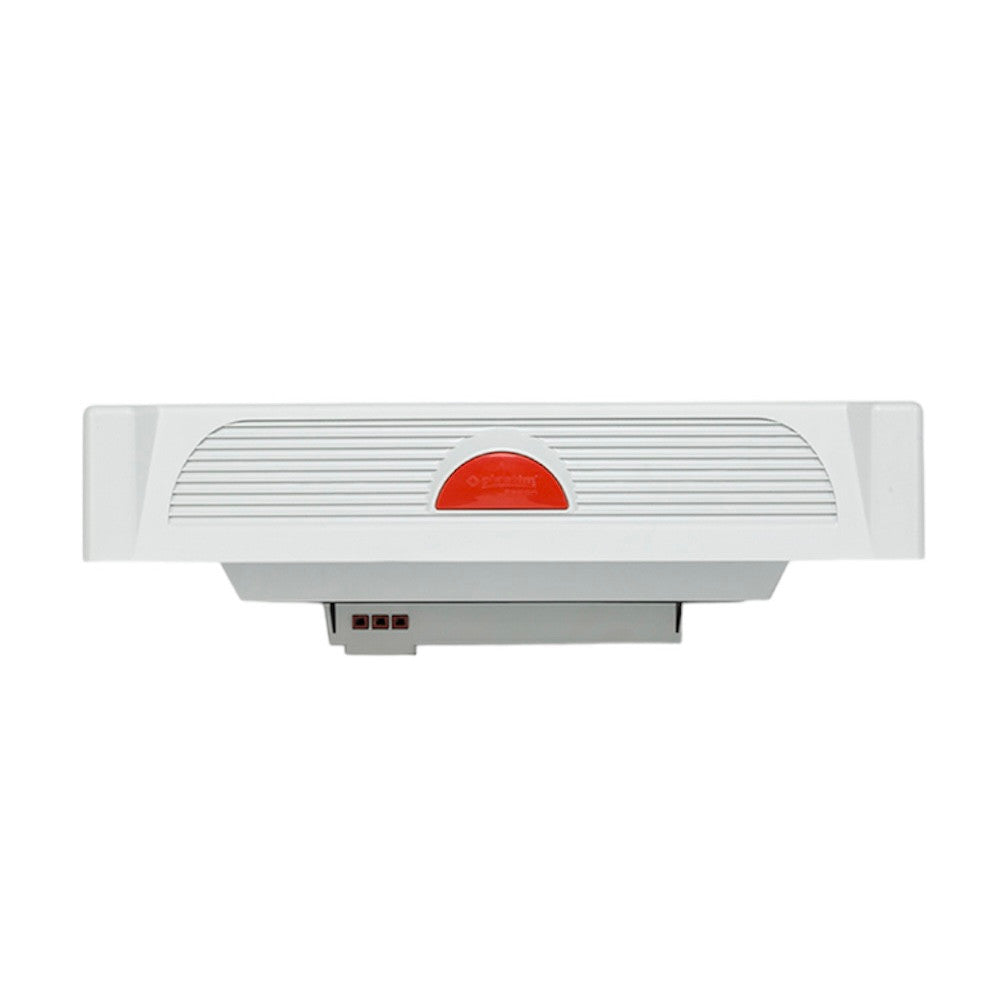

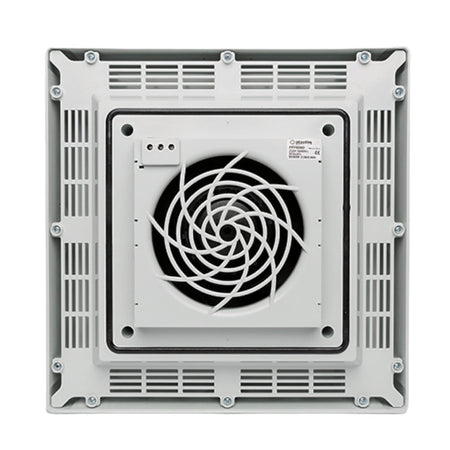

Fan in housing for installation on the roof of the switchgear cabinet, PTS5500, PLASTIM (Turkey)
This fan is designed for use in a microclimate system in a switchboard or automation panel and is usually used in conjunction with a PTVT or PTHVT thermostat. It is installed on the roof of the cabinet, allowing excess hot air to be removed from the cabinet volume as efficiently as possible.
Although the fans have the same overall dimensions, they differ in the amount of air they expel and the noise level.
- External dimensions: 364x364x107 mm.
- Installation dimensions: 178x178 mm
- Volume flow rate: 560 m3/h
- Noise level: 62 (64) dB(A)
- Bearing: ball bearing
- Service life: 50000 h
- Operating voltage: 220-230 V AC, 50/60 Hz
- Current consumption: 0.26/0.34 A
- Rated power: 58/75 W
- Electrical connection: 3-pole 2.5 mm2 terminal
- Flow direction: Air flow is directed from the inside of the cabinet to the outside.
- Operating temperature: -10/+70 °C
- Protection degree: IP54
- Plastic material: UL94 V0 ABS Fireproof
- Seal: polyurethane seal
- Color: RAL 7035
- Weight: 3.16 kg
- Installation: quick-attach
To ensure automatic air exchange and temperature maintenance with this fan, you will need either a simple bimetallic thermostat or a more complex temperature controller, both devices can be purchased on our website.
