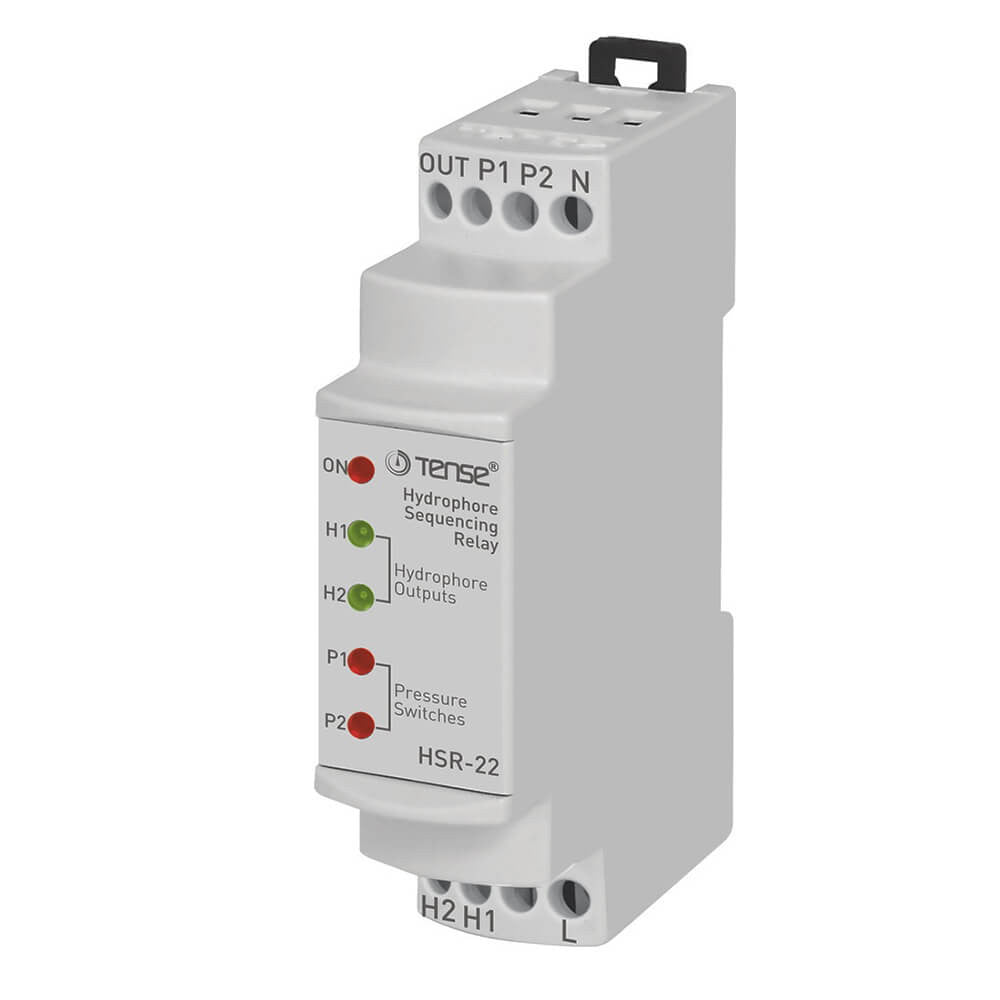

Booster sequence relays

General Information

Hydrophore displacement relays are designed to

turn on when needed and operate simultaneously.

Device Usage and Operating Principle

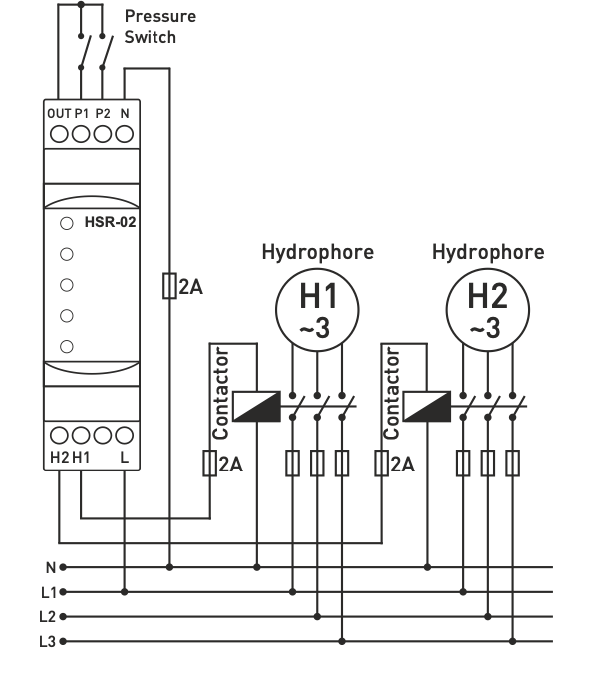

The hydrophore sequence is as follows: (H1) - (H2) - (H3) and (H1-H2) -.

(H2-H3) - (H1-H3). It activates the hydrophores with the same number,

where the switches are closed, and keeps them running for "t" period. At the end of "t" time, the next hydrophore or group of hydrophores activates and

"t" continues in this manner. It deactivates the hydrophores with the same number,

where the switches are open.

Note: Do not connect power to the inputs and outputs (P1, P2, P3).

of the pressure switch.

Maintenance

Turn off the device and disconnect it from the connectors. Clean the device cone with a swab. Do not use any wires or chemicals that could cause damage.

damage the device. After cleaning, make sure the device is working.

Warning

Use the device according to the operating instructions.

Do not use the device in a humid environment.

The kit includes a switch and a circuit breaker.

Position the switch and circuit breaker near the equipment so that the operator can easily reach them.

The switch and circuit breaker must be marked as follows

equipment release connector.

Technical specifications:

Operating voltage (Un).....: 150-250 VAC

Operating frequency.......: 50/60 Hz

Operating power..............: <6VA

Operating temperature....: -20°C.... +55°C

Time(t)......................: 10 minutes

Display......................: HSR-02=5 x LED, HSR-03=7 x LED

Connection type............: Terminal connection

Contact.....................: 3A/250 VAC (resistive load)

Number of hydrophores........: 2 (HSR-02) and 3 (HSR-03)

Cable diameter..............: 1.5 mm² (HSR-02), 2.5 mm² (HSR-03)

Weight..........................: max. 220g

Installation..........................: vertical mounting on panel or DIN rail
