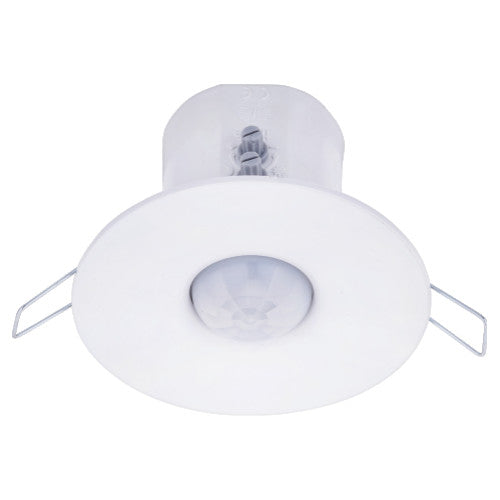

Ceiling PIR sensor 360°, 9m

Ceiling PIR motion sensor, BAFRA, made in Turkey

This motion sensor is used to control lighting using infrared waves, the circuit closes when motion is detected and operates for a certain time that we configure in the device. The light level at which the sensor turns on is also set. High quality product - a great purchase.

The motion sensor is designed for installation in the ceiling or part of the ceiling, where a recess of 60 mm in diameter and 100 mm in depth can be created, and it will fit perfectly into the overall interior.

Specifications:

Supply voltage : 230 V.

Cooperation with LED sources : yes

Color: white

Protection class : IP20

Maximum power: 1200 W

Field of view: 360°

Detection range : up to 9 m (depending on operating conditions)

Power consumption : 0.5 W

Detection type: infrared radiation

Operating range: adjustable, 2-240 lux

Delay time: adjustable, 1 sec / 5 min + -1 sec.

Dimensions: Ø80mm x 50mm

Mounting hole size : 60 mm
