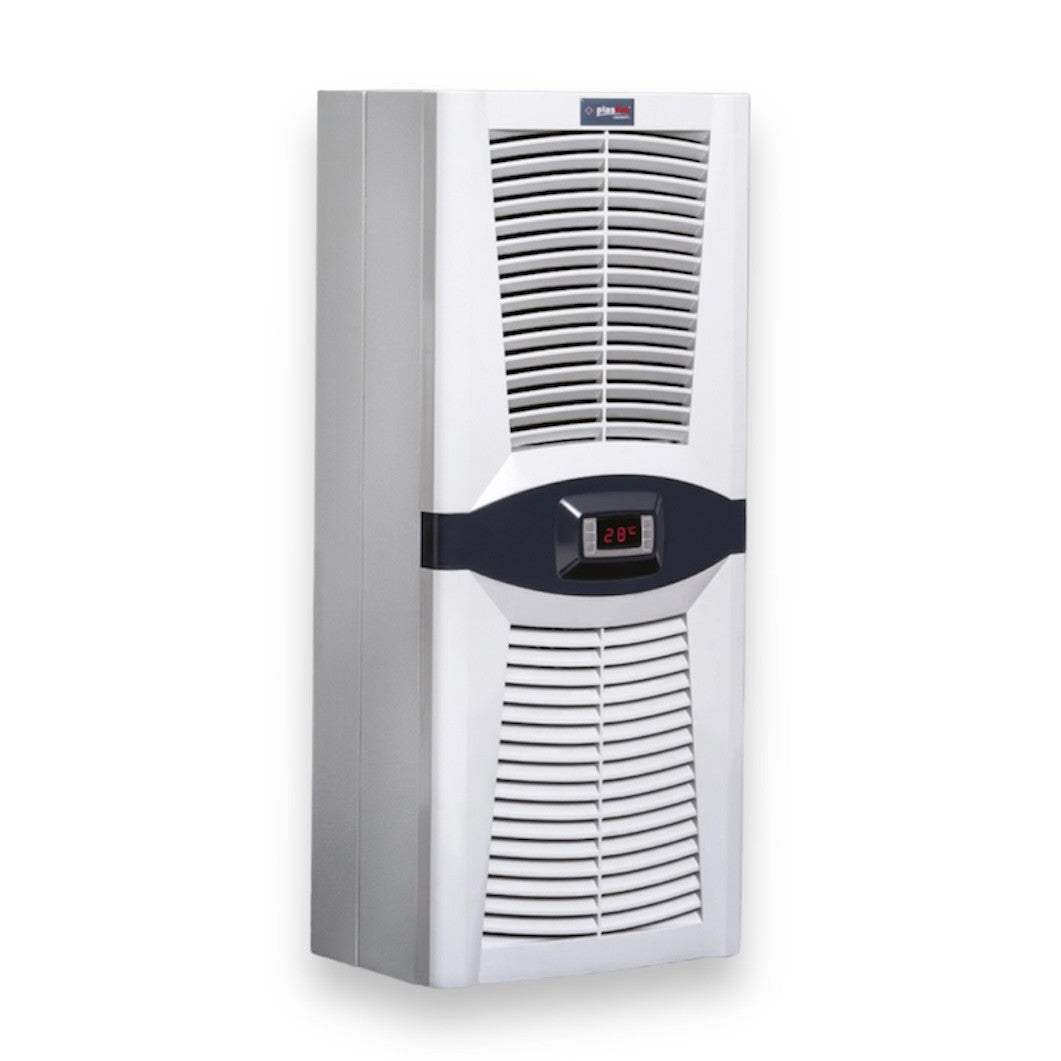

"Design Series" air conditioner for distribution panel/cooler 850 Watt / 2990BTU for distribution panels and automation panels for side or wall mounting.
The air conditioner for switchboards PAD08500.01 (PLASTIM) is equipped with a modern HIGHLY open-type rotary compressor, a Dixell thermostat, a condensate evaporator and a limit switch for controlling the opening of the switchboard door.
The kit includes everything you need to install the air conditioner in the cabinet - gaskets, exhaust pipe, mounting screws, power connector.
| TECHNICAL INFORMATION | PAD0850.01 |
| Cooling capacity L35 / L35 | 850W / 2900BTU |
| Operating voltage | 230VAC |
| Frequency | 50/60Hz |
| Starting current | 6A |
| Operating current | 1.7A |
| Fuse | 10A |
| Power consumption | 394W |
| Operating range | 0-55°C |
| Thermostat factory settings | 35°C |
| Differential | 4 °C |
| Max. Air volume Internal circuit | 340 m³/h |
| Max. Air volume External circuit | 505 m³/h |
| Cooler type | R134a |
| Coolant quantity | 290g |
| Dimensions | 800x345x223mm |
| Weight | 30kg |
| Sound level | 76 dB |
| Degree of protection (internal circuit) | IP54 |
| Degree of protection (external circuit) | IP 34 |
| Color | RAL7035 |
| Compressor | HIGHLY/HITACHI |
| Compressor type | Rotations |
| Fans | EBMPAPST |
| Assembly method | Wall mount |
