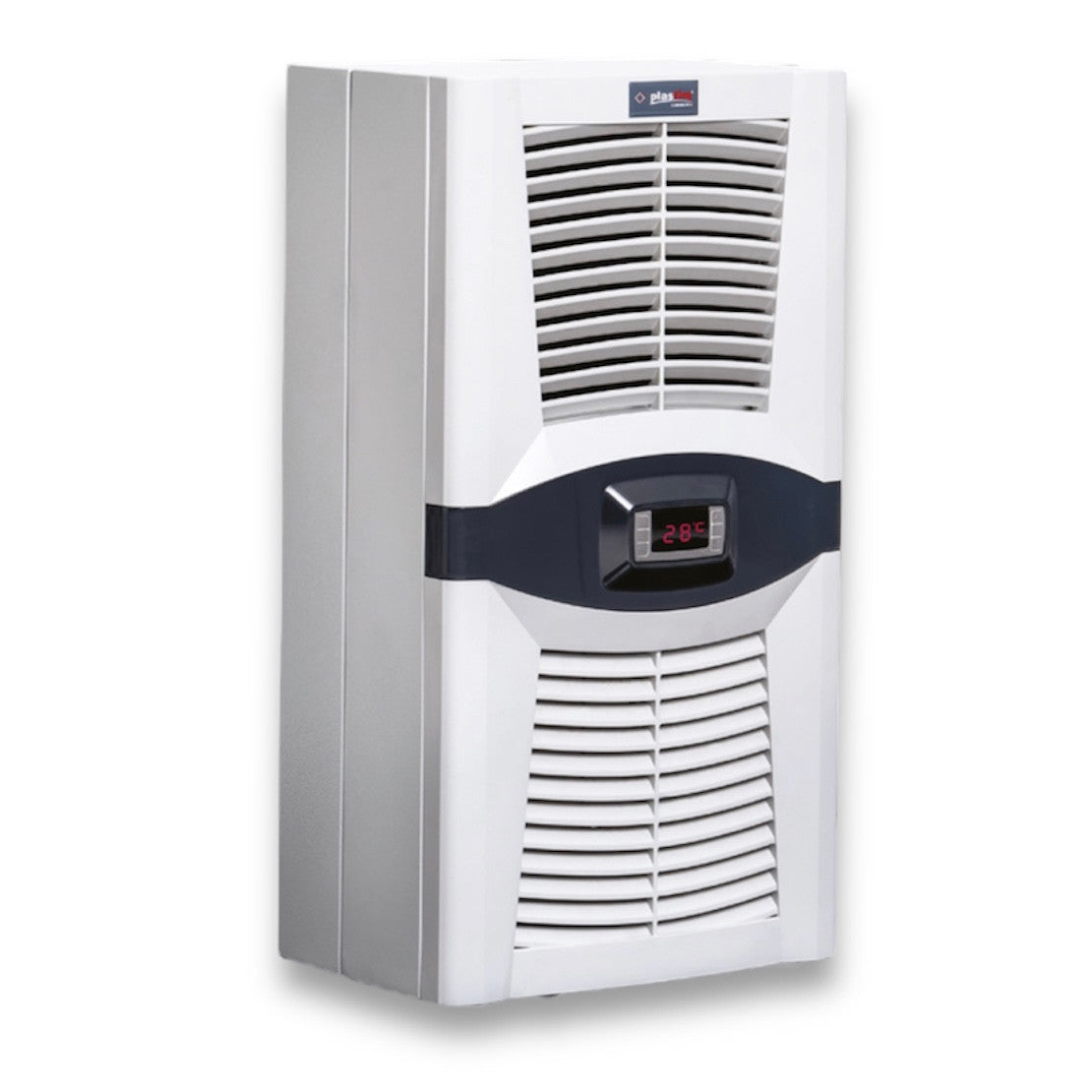

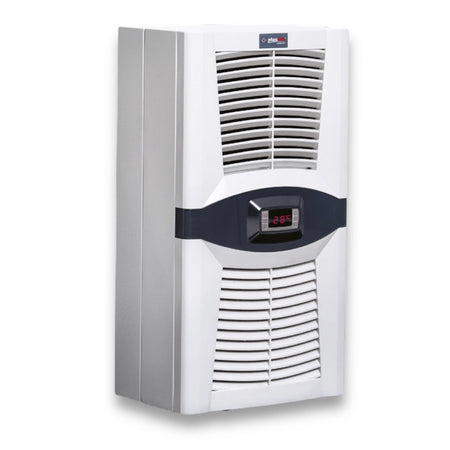

"Design Series" air conditioner for distribution panel / cooler 550 Watt / 1900BTU distribution panel and automation panel for side or wall mounting.
The PAD0550.01 (PLASTIM) air conditioner for switchboards is equipped with a HIGHLY state-of-the-art open-type rotary compressor, a Dixell thermostat, a condensate evaporator, and a switch for controlling the opening of the switchboard door.
The kit includes everything you need to install the air conditioner in the switchboard - gaskets, exhaust pipe, mounting screws, power connector.
| TECHNICAL INFORMATION | PAD0550.01 |
| Cooling Capacity L35 / L35 | 550W / 1900BTU |
| Operating voltage | 230VAC |
| Frequency | 50/60Hz |
| Starting current | 1.2A |
| Operating current | 1.1A |
| Fuse | 6A |
| Power consumption | 330W |
| Operating range | 0-55° |
| Thermostat factory settings | 35 ° |
| Differential | 4 ° |
| Max. Air volume Internal circuit | 340 m³/h |
| Max. Air volume External circuit | 505 m³/h |
| Cooler type | R134a |
| Coolant quantity | 245g |

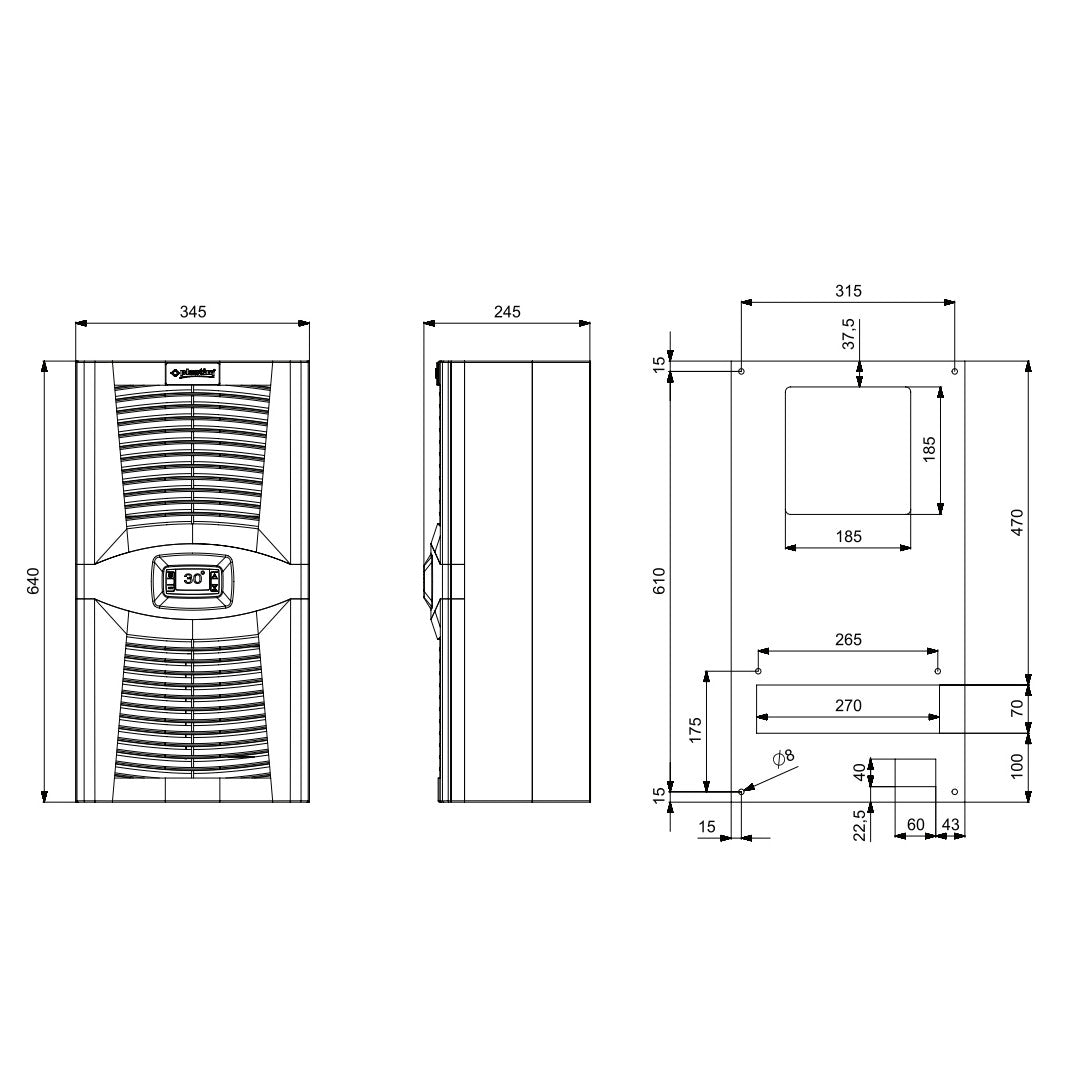

| Dimensions | 640x345x223mm |
| Weight | 27kg |
| Sound level | 76 dB |
| Degree of protection (internal circuit) | IP54 |
| Degree of protection (external circuit) | IP 34 |
| Color | RAL7035 |
| Compressor | HIGHLY/HITACHI |
| Compressor type | Rotations |
| Fans | EBMPAPST |
| Assembly method | Wall mount |
