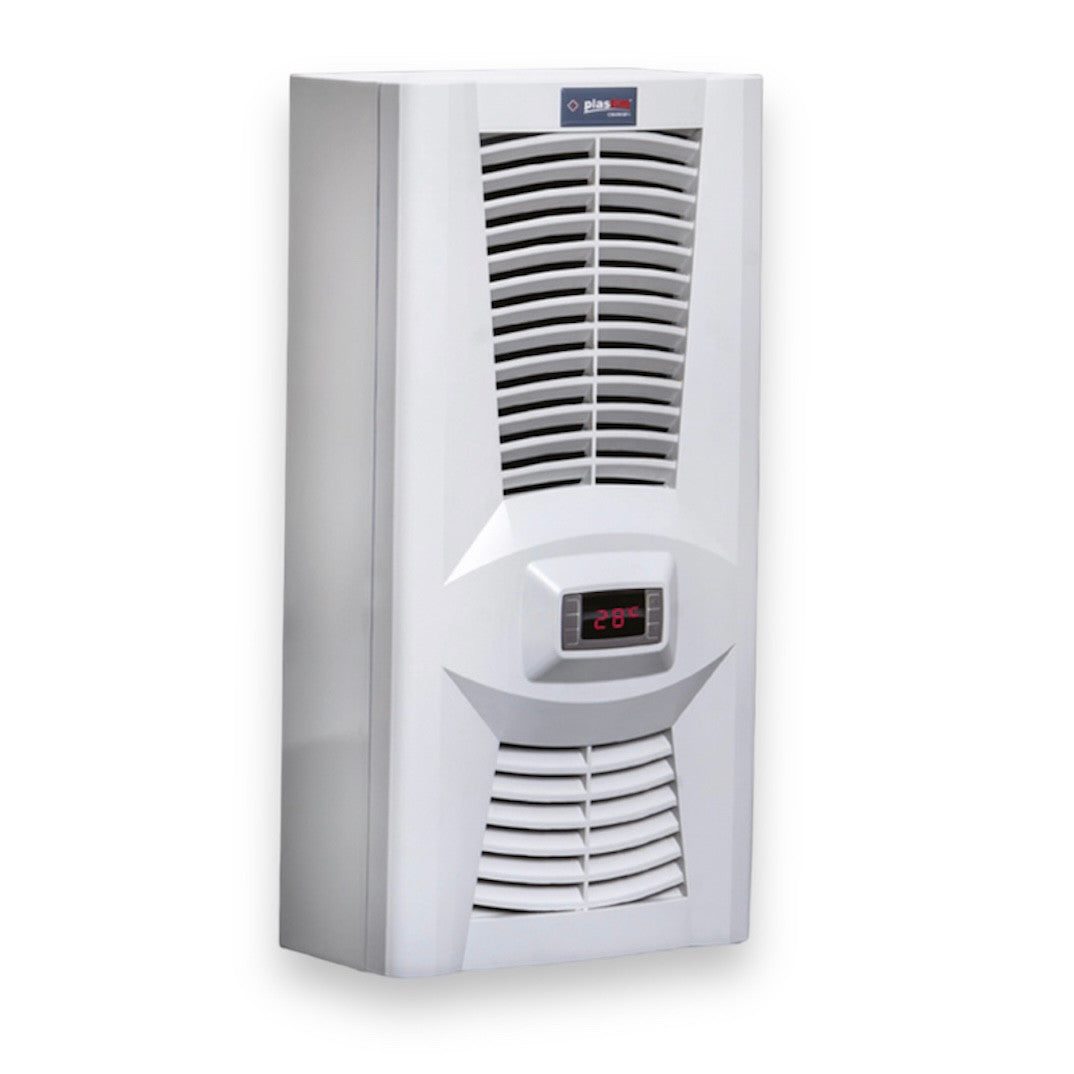

"Design Series" air conditioner for distribution panels / cooling units 380 Watt / 1300 BTU for distribution panels and automation panels for side or wall mounting.
The PAD0380.01 (PLASTIM) air conditioner for switchboards is equipped with a HIGHLY state-of-the-art open-type rotary compressor, a Dixell thermostat, a condensate evaporator and a limit switch for controlling the opening of the switchboard door.
The kit includes everything you need to install the air conditioner in the switchboard - gaskets, exhaust pipe, mounting screws, power connector.
| TECHNICAL INFORMATION | PAD0380.01 |
| Cooling capacity L35 / L35 | 380W / 1300BTU |
| Operating voltage | 230VAC |
| Frequency | 50/60Hz |
| Starting current | 3.7A |
| Operating current | 1.1A |
| Fuse | 5A |
| Power consumption | 325W |
| Operating range | 0-55°C |
| Thermostat factory settings | 35°C |
| Differential | 4 °C |
| Max. Air volume Internal circuit | 340 m³/h |
| Max. Air volume External circuit | 340 m³/h |
| Cooler type | R134a |
| Coolant quantity | 120g |
| Dimensions | 560x285x150mm |
| Weight | 15kg |
| Sound level | 75 dB |
| Degree of protection (internal circuit) | IP54 |
| Degree of protection (external circuit) | IP 34 |
| Color | RAL7035 |
| Compressor | HIGHLY/HITACHI |
| Compressor type | Rotations |
| Fans | EBMPAPST |
| Assembly method | Wall mount |
