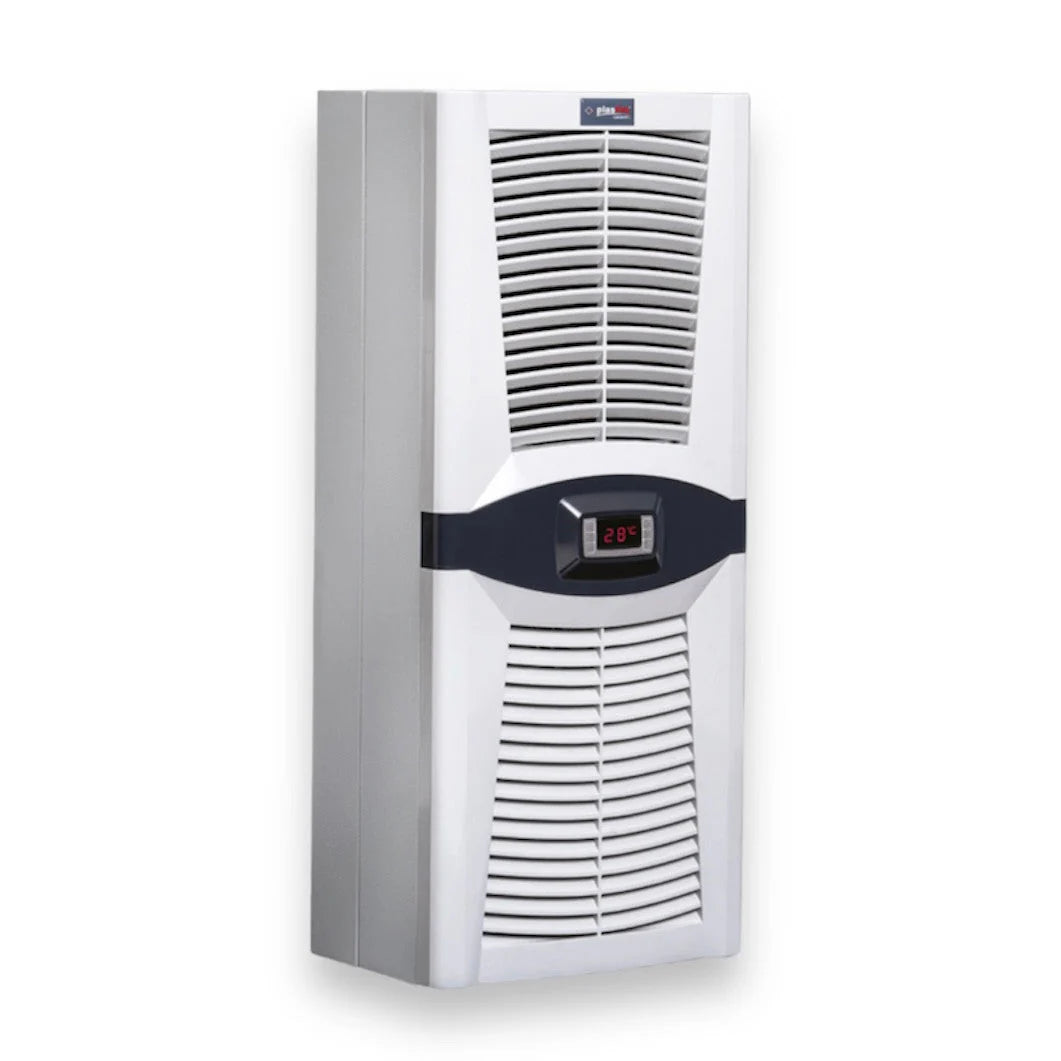

"Design Series" Air conditioner for distribution panel / cooler 3500 W for distribution panel and automation panel for side or wall mounting.
The PAD3550.01 (PLASTIM) air conditioner for switchboards is equipped with a HIGHLY state-of-the-art open-type rotary compressor, a Dixell thermostat, a condensate evaporator, and a limit switch for controlling the opening of the switchboard door.
The kit includes everything you need to install the air conditioner in the switchboard - gaskets, exhaust pipe, mounting screws, power connector.
TECHNICAL INFORMATION |
PAD3550.01 |
Cooling capacity L35 / L35 |
3500W / 11970BTU |
Operating voltage |
230VAC |
Frequency |
50/60Hz |
Starting current |
11A |
Operating current |
3.8A |
Fuse |
16A |
Power consumption |
800W |
Operating range |
0-55°C |
Thermostat factory settings |
35°C |
Differential |
4 °C |
Max. Air volume Internal circuit |
510 m³/h |
Max. Air volume External circuit |
625 m³/h |
Cooler type |
R134a |
Coolant quantity |
750gr |
Dimensions |
1200x430x270mm |
Weight |
47kg |
Sound level |
82 dB |
Degree of protection (internal circuit) |
IP54 |
Degree of protection (external circuit) |
IP 34 |
Color |
RAL7035 |
Compressor |
HIGHLY/HITACHI |
Compressor type |
Rotations |
Fans |
EBMPAPST |
Assembly method |
Wall mount |
