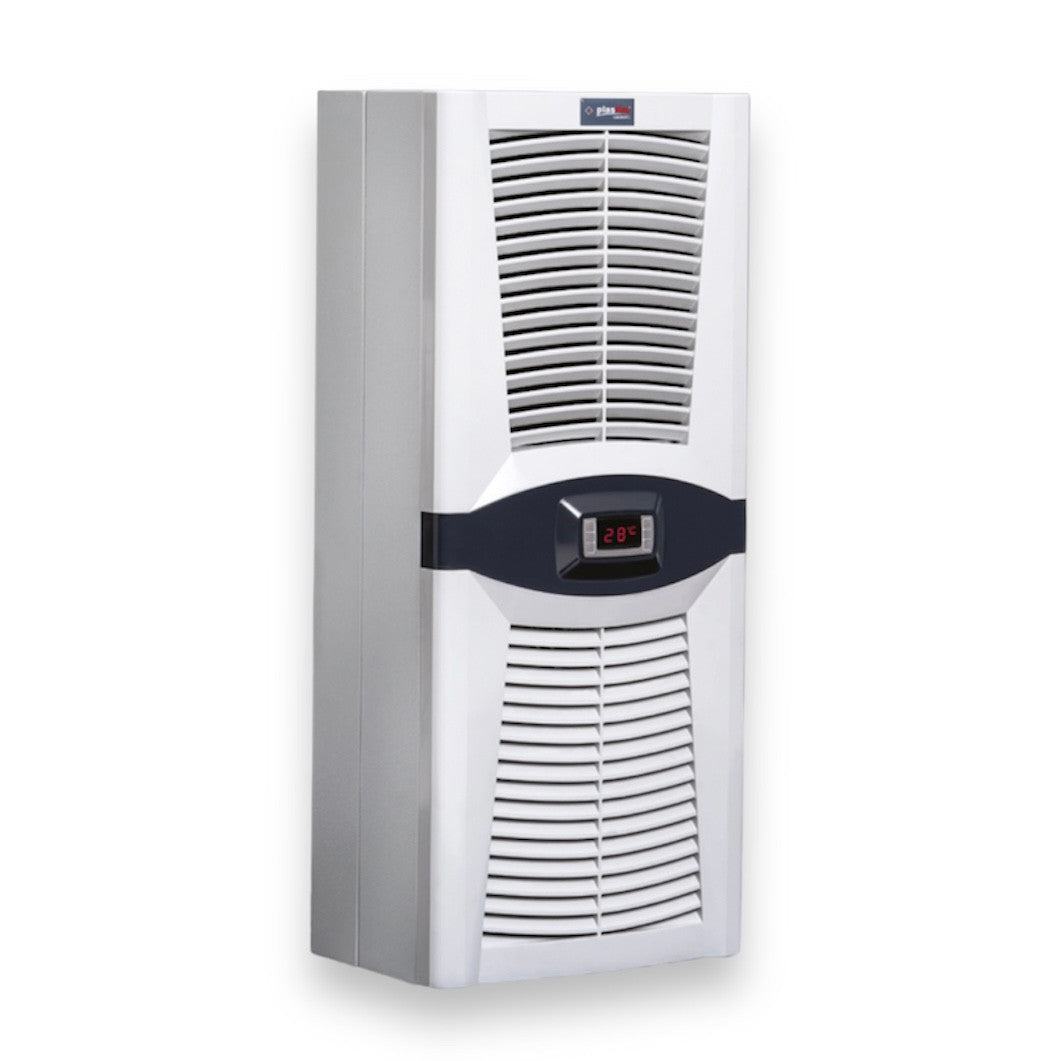

"Design Series" air conditioner for distribution panel/cooler 2500 Watt / 8550BTU distribution panel and automation panel for side or wall mounting.
The PAD2550.01 (PLASTIM) air conditioner for switchboards is equipped with a HIGHLY state-of-the-art open-type rotary compressor, a Dixell thermostat, a condensate evaporator, and a switch for controlling the opening of the switchboard door.
The kit includes everything you need to install the air conditioner in the switchboard - gaskets, exhaust pipe, mounting screws, power connector.
|
TECHNICAL INFORMATION |
PAD2100.01 |
|
Cooling capacity L35 / L35 |
2100W / 7200BTU |
|
Operating voltage |
230VAC |
|
Frequency |
50/60Hz |
|
Starting current |
10A |
|
Operating current |
3.8A |
|
Fuse |
16A |
|
Power consumption |
800W |
|
Operating range |
0-55°C |
|
Thermostat factory settings |
35°C |
|
Differential |
4 °C |
|
Max. Air volume Internal circuit |
510 m³/h |
|
Max. Air volume External circuit |
625 m³/h |
|
Cooler type |
R134a |
|
Coolant quantity |
700g |
|

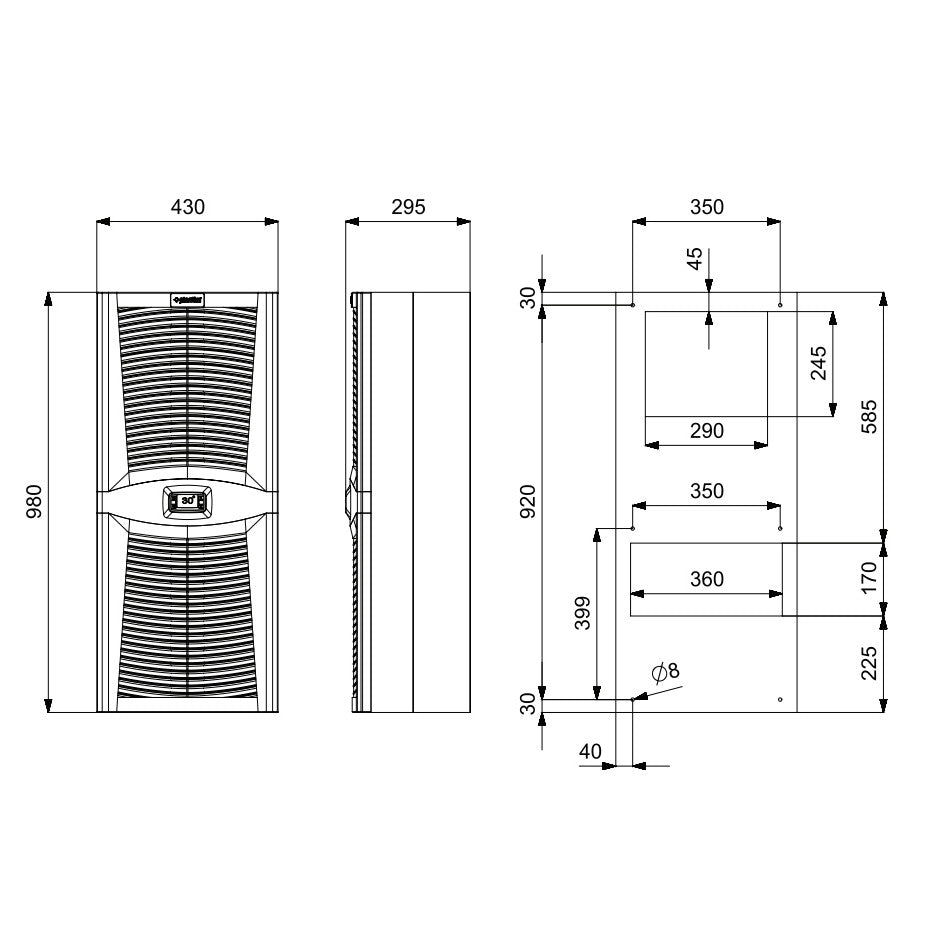

Dimensions |
980x430x270mm |
|
Weight |
46kg |
|
Sound level |
80 dB |
|
Degree of protection (internal circuit) |
IP54 |
|
Degree of protection (external circuit) |
IP 34 |
|
Color |
RAL7035 |
|
Compressor |
HIGHLY/HITACHI |
|
Compressor type |
Rotations |
|
Fans |
EBMPAPST |
|
Assembly method |
Wall mount |
