Vendor: TENSE

Frequency counter / frequency counter / frequency meter panel digital built-in 1-400Hz

Barcode: DJ-F72
€38,20
€38,20
excl. VAT: €32
Low stock: 5 left

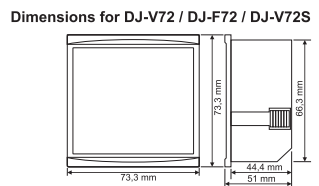

Height x width: 73mm x 73mm
  • Description
  • Instructions
  • Payment methods
  • Warranty

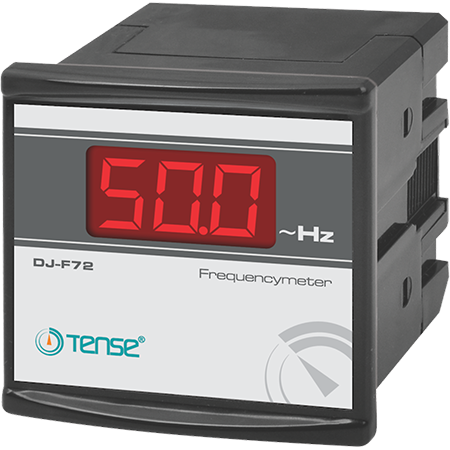

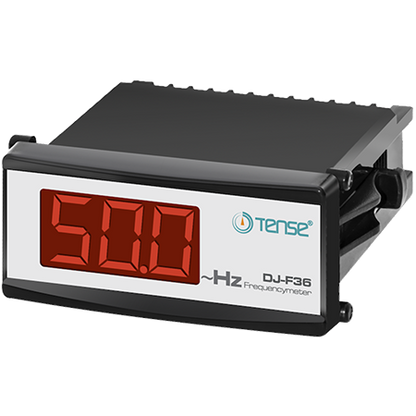

TENSE Digital Frequency Meter DJ-F72

Description

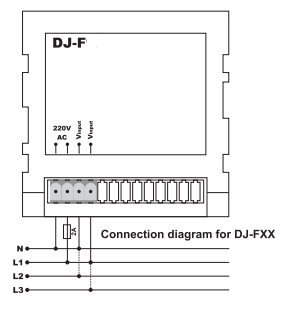

TENSE DJ-F72 digital frequency meters are designed for continuous monitoring of AC frequency. When power is applied, the device displays the frequency of the phase or line voltage applied to the Vin inputs on the digital display. The measured voltage must be in the range of 15-500 V AC.

Advantages

  • Continuous frequency monitoring

  • Accurate digital measurement with ±1% precision

  • Easy front panel installation

  • Low power consumption (<6 VA)

  • Compact and reliable operation even at altitudes up to 2000 m.

Technical specifications

ParameterValue
Operating voltage (Un)140 - 260 V AC
Operating frequency50/60 Hz
Power consumption<6 VA
Frequency measurement range1 - 400 Hz (voltage 15-500 V AC)
Measurement accuracy±1 %
Operating temperature0 °C - 55 °C
Protection classIP20
Connection typeTerminalconnection
Max.
Cable diameter1.5 mm²
Weight<220 g
Operating altitude<2000 m

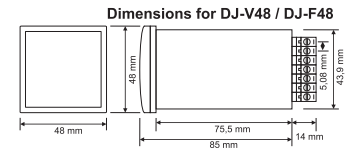

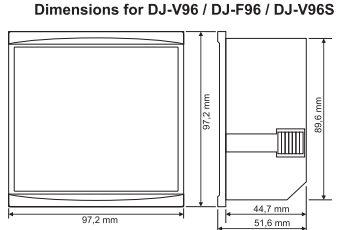

ModelDisplayDisplaysizeMounting holes
sizeDJ-F9620
mm, 3 digits91x 91
mmDJ-F7214
mm, 3 digits68x 68
mmDJ-F489
mm, 3 digits45x 45 mm


Installation

  • Front panel mounting

  • Suitable for industrial and domestic power systems

Download to

User Manual

The electrical equipment we supply meets high quality standards, comes with a 24-month warranty, and complies with all EU requirements.
In case of claims, returns are free of charge.
