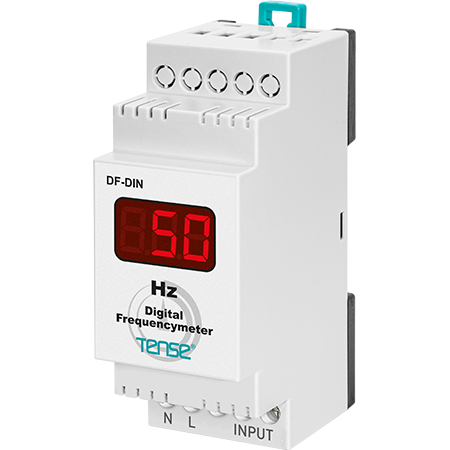

DF-DIN TENSE Frequency Meter - True RMS

Highly accurate True RMS frequency meter for DIN rail mounting.

DF-DIN is designed to monitor the frequency range (from 1 Hz to 400 Hz) between phase and phase or phase and neutral wire. The instrument is used to control frequency stability in single-phase and three-phase systems, which is especially important for industrial equipment, generators, transformers, and power systems.

With a three-digit LED display, the frequency meter provides clear and quick data visualization. The compact housing, simple installation, and high accuracy make the Tense DF-DIN an optimal solution for panel mounting.

Areas of Application

• Electrical distribution cabinets

• Industrial distribution cabinets

• Backup power systems

• Generator sets

• Frequency control in laboratories and testing facilities

Technical Specifications

• Operating voltage: 140-280 VAC

• Operating frequency: 50/60 Hz

• Operating power: <3 VA

• Operating temperature: -20 °C ... +55 °C

• Display: 1 × 3 LED

• Measurement range: 1 Hz - 400 Hz

• Connection: terminal block

• Cable diameter: 2.5 mm²

• Weight: 135 g

• Operating altitude: < 2000 m

• Installation: DIN rail mounted
