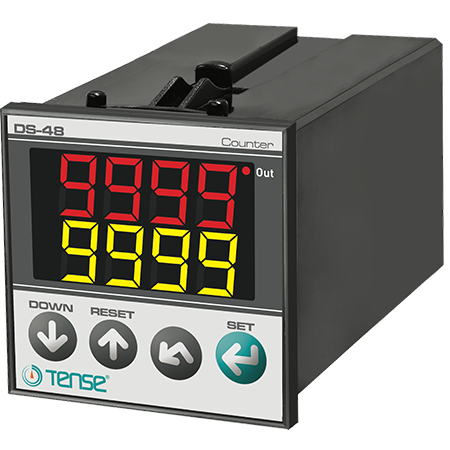

DS-48 pulse counter - 2 × display, 2 inputs, relay output

Product description

The DS-48 pulse counter is a universal dual-input panel meter equipped with two 4-digit LED displays (current value + target value). It can count, subtract and process signals from mechanical switches, PNP/NPN inductive sensors and incremental encoders. Its wide range of input and output functions makes it suitable for industrial automation systems, production lines, measurement stations and process control.

Main functions

• 2 × 4-digit 7-segment LED display

• 1× OUT relay output + SSR output

• Multiple modes: count up, count down, sum from multiple inputs, control via second input.

• Support for mechanical switches, PNP/NPN sensors and encoders.

• Input frequency selection: 20 / 50 / 2500 / 7500 Hz

• Password setting protection

• EEPROM memory - data retention in case of power failure

• Option to set OFFSET and decimal point

• Automatic recovery of the last value after a power failure

Function

Input function (7 modes):

• Count up

• Count down

• Sum from two inputs simultaneously

• Pause controlled by the second input

• Input negation

• Count from rising/falling edge

• Combinations: add from one edge, subtract from the other, negate, etc.

Output functions (9 modes):

• Relay activation upon reaching target

• Hold until RESET

• Pulse output 0.1-999.9 s

• Control via SSR output (NPN)

Technical parameters

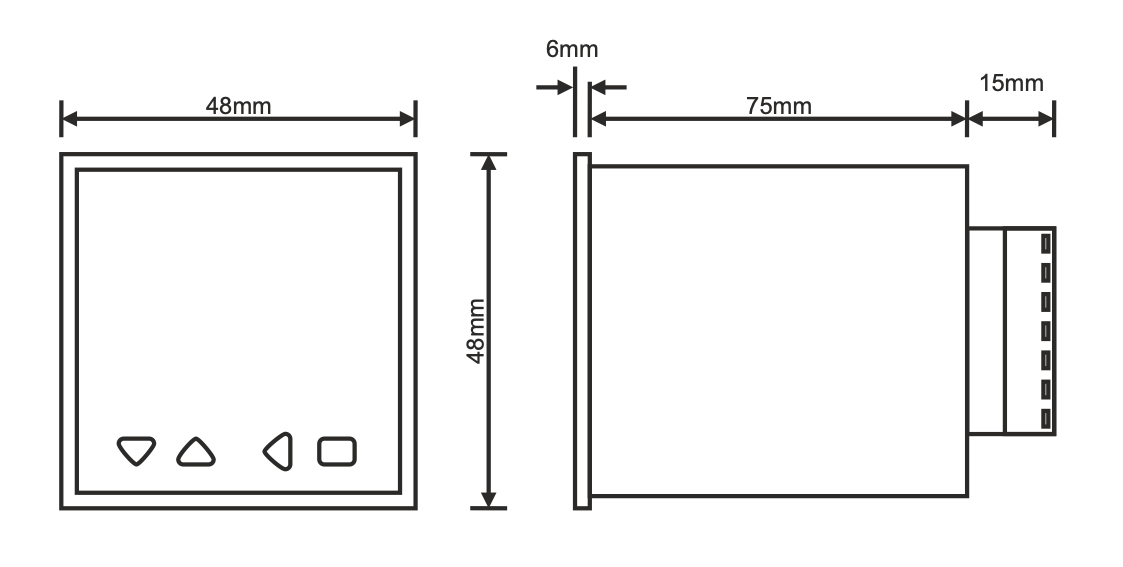

Display and dimensions

• Dimensions: 48 × 48 × 96 mm

• Mounting hole: 44 × 44 mm

• Display: 2 × 4-digit LED

Inputs:

• Number of inputs: 2

• Input types: mechanical switch, PNP/NPN sensor, NPN/PNP/totem-pole encoder output

• Input voltage: 5-30 V

• Maximum input frequency: 7500 Hz

• Selectable frequencies: 20 / 50 / 2500 / 7500 Hz

• Reset input: PNP, min. 10 ms, terminal 12

• Sensor power supply: 12 V DC / 50 mA (max.)

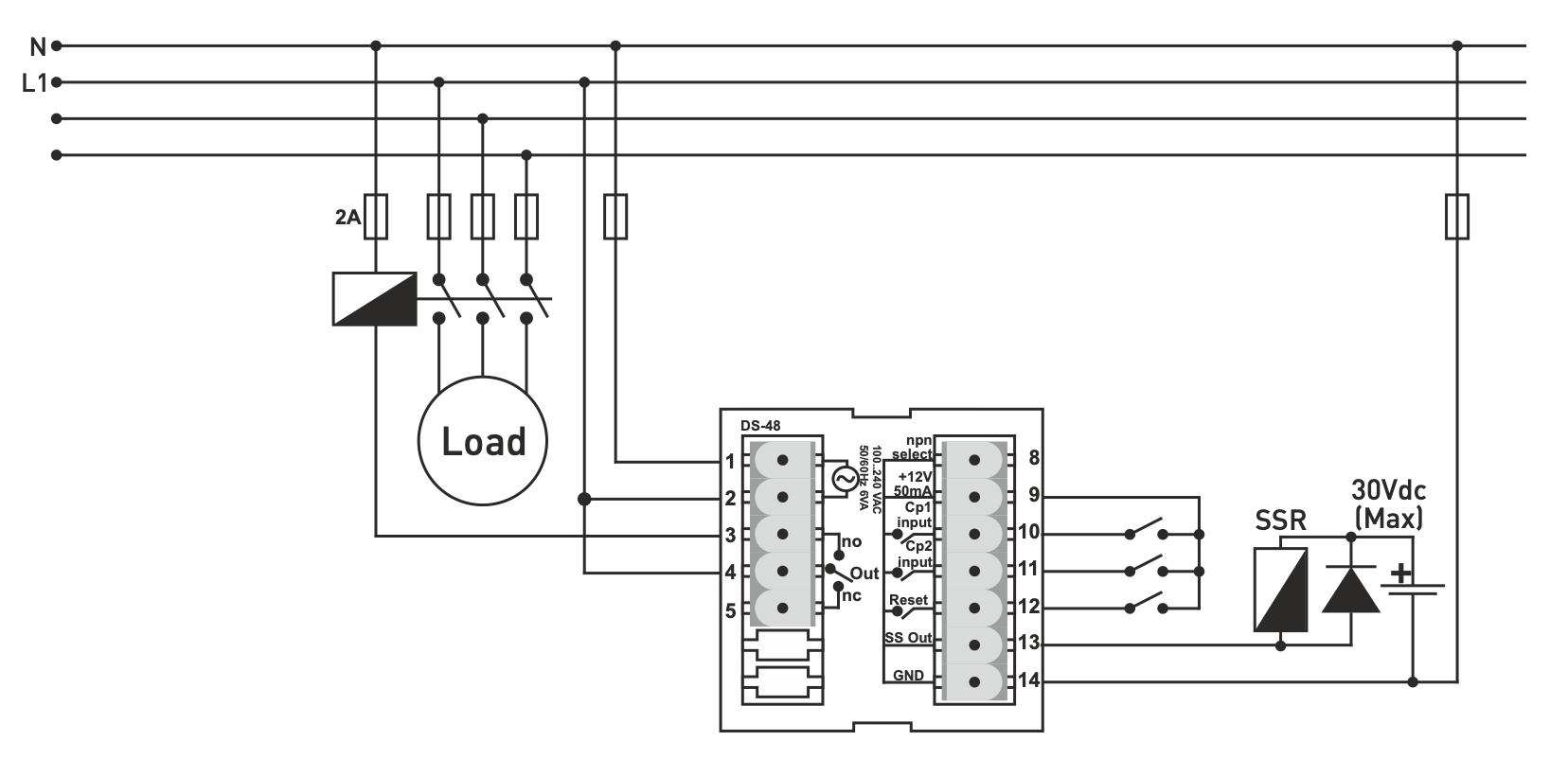

Outputs:

• 1× SPDT relay 250 VAC, 2 A (resistive load) - COM (4), NO (3), NC (5)

• 1× SSR control (NPN, max. 100 mA, 30 V) - terminals 13 (SSout), 14 (GND).

Power supply

• 100-240 VAC, 50/60 Hz

• Power consumption: < 8 VA

Operating conditions

• Operating temperature: -20 °C to +55 °C

• Maximum altitude: 2000 m

Special features

• EEPROM memory saves all settings and current counters after power failure

• Adjustable OFFSET for counting value

• Password protection against unwanted parameter changes

• Selectable decimal place (0 / 0.0 / 0.00 / 0.000)

Installation recommendations

• Use shielded and twisted signal cables, ground the shields.

• Separate signal wires from power and supply cables.

• For power input, use a fuse F250 mA / 250 VAC.

• Protect the equipment from moisture, vibration, dust and excessive temperatures.

• For mechanical switches, it is recommended to set the input frequency to 20 Hz.

• If two inputs are used:

• Phs4 mode → max. ¼ input frequency

• Modes 1u2u, 1u2d, Phs2 → max. ½ input frequency
