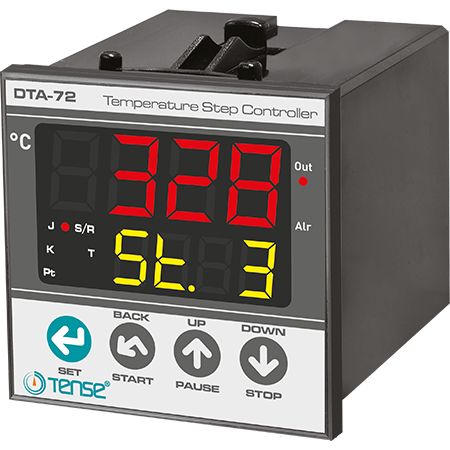

DTA-72 Digital Temperature Stage Control Relay

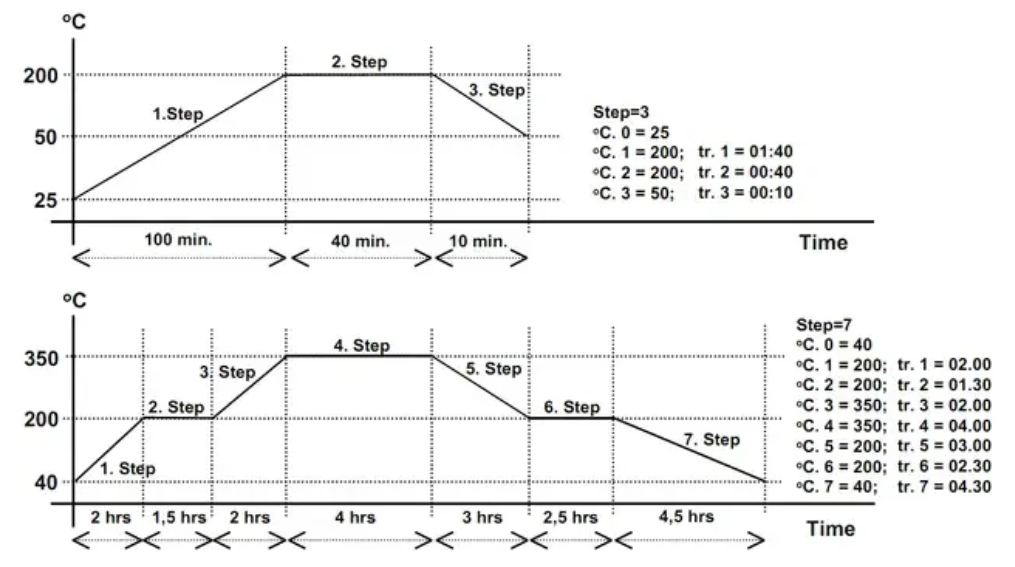

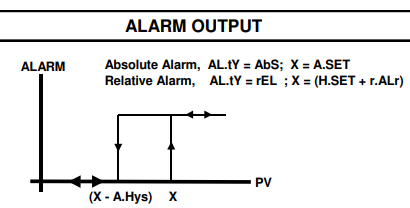

Digital temperature control relays are designed to maintain a set temperature in environments requiring temperature control. - Microprocessor PID temperature controller with step control - Automatic PID parameter setting - Sensor types: T/C (J,K,S), Pt100 - Selectable control type: P, PI, PD, PID or ON-OFF - Anti-fogging function - Maximum of 20 steps - Step time setting up to 18 hours/step - Relative or absolute alarm selection - Display: SET value, process value, step number, remaining time - Cold junction compensation for T/C - Lead compensation for Pt100 - Excellent linearity with °C/mV and °C/Ohm conversion tables - Input offset correction function - Password protection - High accuracy - EEPROM memory for setting storage - Optional SSR output - Easy connection with connectors
