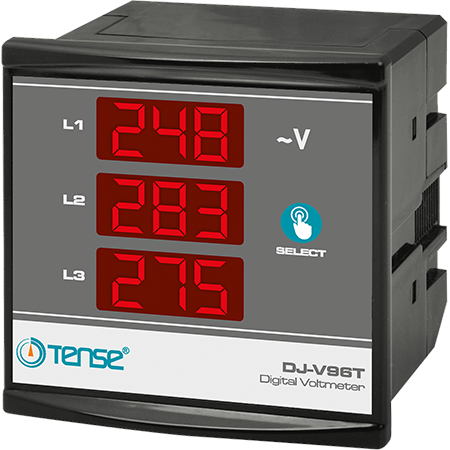

Three-phase Digital Panel Voltmeter TENSE DJ-V96T
Product Description:
The DJ-V96T digital panel voltmeter is designed for simultaneous voltage measurement in three AC phases. It can monitor both phase voltage between neutral wires (L-N) and phase voltage between phases (L-L), as well as display the phase sequence. The display mode is selected using the SELECT button on the front panel.
Operating Principle:
-
Displays voltage at inputs L1, L2, L3 when power is supplied.
-
Pressing the SELECT button switches the display to phase voltages L12, L23, L31 and then to the phase sequence.
-
Displaying L1, L2, L3 from top to bottom indicates a correct phase sequence; displaying L1, L3, L2 indicates an incorrect phase sequence.
Technical Specifications:
| Parameter | Value |
|---|---|
| Operating Voltage (Un) | 140-300 VAC |
| Operating Frequency | 50/60 Hz |
| Power Consumption | <4 VA |
| Operating Temperature | -20 °C ... +55 °C |
| Measurement Accuracy | ±1 % |
| Measurement Range L-N | 5-300 V AC (min. 140 V at L1) |
| Measurement Range L-L | 5-500 V AC |
| Display | 3 × 3 digits, 14 mm height |
| Mounting Hole Dimensions | 91 × 91 mm |
| Connection Type | Plug-in connector |
| Weight | ≤300 g |
| Operating Altitude | <2000 m |
| Cable Diameter | 1.5 mm² |
| Installation | On front panel |
Applications:
-
Voltage monitoring in three-phase electrical distribution systems
-
Monitoring phase sequence
-
Monitoring L-N and L-L voltage in industrial and residential installations
Advantages:
-
Clear and accurate voltage readings across all phases
-
Easy switching of display modes
-
Quick installation in a standard panel (91 × 91 mm)
