DJ-V - built-in digital panel voltmeter for AC voltage 1-500 V, panel meters

Single-phase digital voltmeter, 78x36 mm, power = 140-260 V AC, range 1-500 V, TENSE

TENSE DJ series digital voltmeters are designed for continuous AC voltage monitoring in electrical systems. These devices are suitable for measuring voltage in single-phase and three-phase networks and provide high accuracy and reliability.

TENSE DJ series digital voltmeters are a modern and reliable solution for AC voltage monitoring. They are widely used in electrical distribution cabinets and control panels for displaying power grid parameters. These meters display voltage in phase or phase-to-phase mode, providing continuous monitoring and preventing potential system failures.

Order TENSE DJ-V96, DJ-V72 or DJ-V48 voltmeters and choose the optimal solution for your facility!

Advantages of TENSE DJ series

Wide measuring range: suitable for measuring voltage from 1 V to 500 V, making the devices universal for various systems.

High accuracy: the measurement error is only ±1%, which ensures reliable data.

Bright display: All models are equipped with LED displays of various sizes:

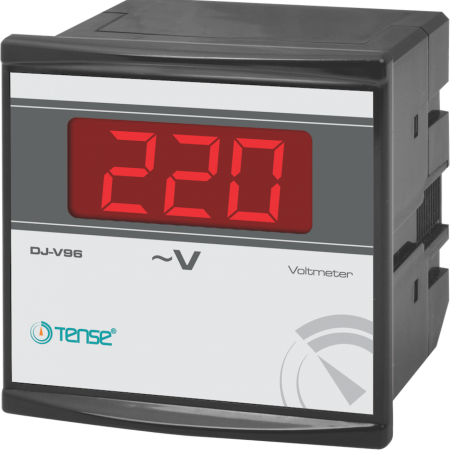

DJ-V96: 20 mm, 3-digit display.

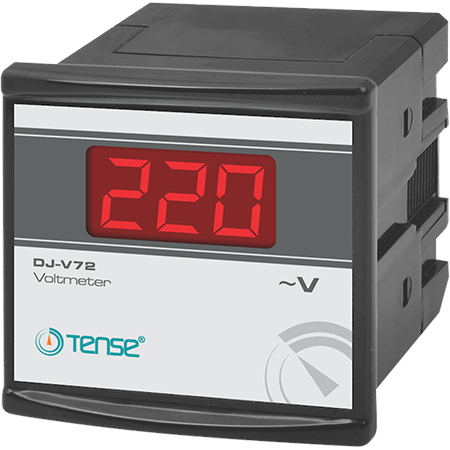

DJ-V72: 14 mm, 3-digit display.

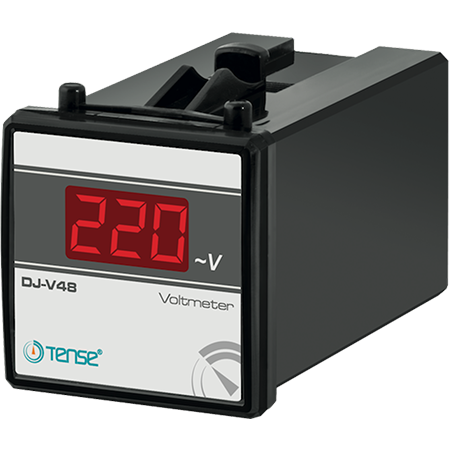

DJ-V48: 9 mm, 3-digit display.

Low power consumption: all models consume less than 6 VA, making them energy-efficient.

Easy to connect: the devices are equipped with standard screw terminals and support wires up to 1.5 mm².

Safe operation.

TENSE DJ series specifications

Operating voltage (Un): 140 V - 260 V AC.

Operating frequency: 50/60 Hz.

Measuring voltage range: 1 V - 500 V AC.

Power consumption: <6 VA.

Protection class: IP20.

Front panel mounting type.

Versatility: Suitable for voltage measurement in industrial and household networks.

Durability.
