Digital Current Indicator Three Phase Panel Ammeter Three Phase Built-in

Detailed description

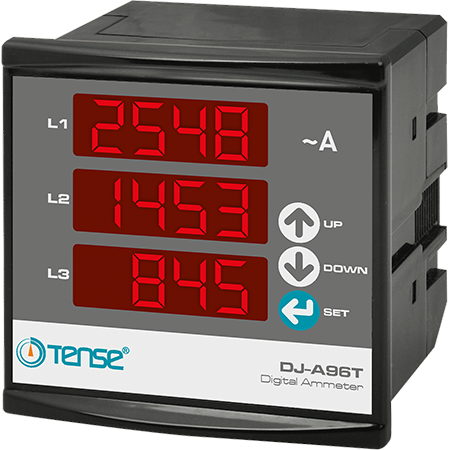

DJ-A96T three-phase digital panel ammeter

Ammeter for current control in a three-phase system with current measurements in each phase L1, L2, L3 using external current transformers.

Power supply voltage: 230 V AC, device voltage <4VA.

Current range: 100 mA...5.5 A

Current transformer range: 5/5A - 5000/5A

Measurement accuracy +-2%

Current transformers are not included in the package, you can choose them here.

Easily readable 3x4 digit display, height 14 mm.

Dimensions 97.2x97.2 mm for a 91x91 mm cutout, depth 45 mm.

Operating principle and settings:

Connect the device according to the wiring diagram.

Connect current transformers with a ratio of xxxx/5A according to the system current load. Connect the current transformer wires to the device's "kx" and "lx" input terminals. The current transformer output to the ammeter can be no more than 5 A.

Before starting load measurements, after switching on the power, hold down the "Menu" button for 2 seconds.

Adjust the ratio of the transformers used using the "Up" and "Down" buttons.

To save the settings, hold down the "Menu" button again for 2 seconds.

Connect the load, and the ammeter will start displaying the current.

For safety reasons, it is always necessary to ground the measuring transformer.

Technical characteristics:

Solid-state relay type.

Input voltage: 3...32 V DC.

Switched: 24...480 V AC. Not intended for motors.

Voltage drop: < 3 V

Startup current: 5 mA

Coil voltage: 3...32 V DC

Maximum current: 25 A

Electrical insulation strength: 2500 V AC
