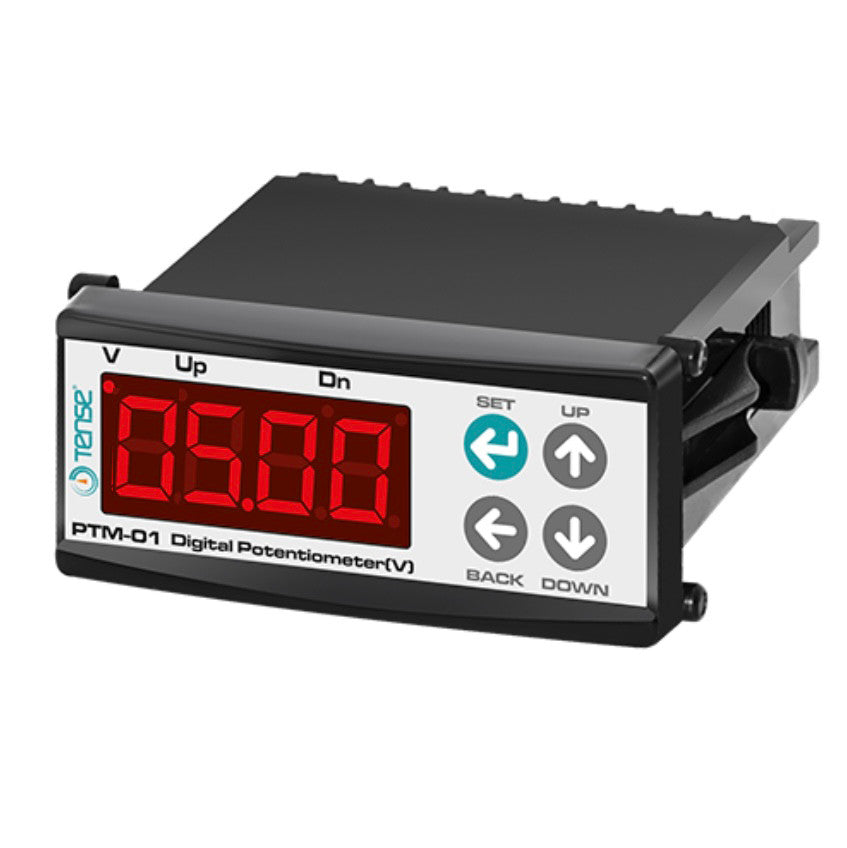

Digital potentiometer, 0-10V voltage source

Digital potentiometers are control devices that generate an analog output in the 0-10V range.

• Microprocessor based
• Analog output: 0-10V
• Menu entry and analog output control via front keys
• Analog output control via digital inputs
• Adjustable upper and lower scale levels
• Adjustable SET upper and lower limits
• Separate function selection for front keys and digital inputs for analog output control
• Password protection
• SECU setting to enable/disable SET adjustment menu entry
• High accuracy
• EEPROM memory for saving settings
• Easy connection with plug connectors

TECHNICAL SPECIFICATION

• Dimensions: 35x77 mm
• Panel cutout: 29x71 mm
• Display: 4 digit 7 segment
• Analog output: 0-10V or 4-20mA (must be specified when ordering)
• 0-10V load resistance: >5K
• 4-20mA max. Voltage: <10V
• Resolution: 2mV (0-10V), 4μA (4-20mA).
• Accuracy: ±%1; (Full scale)
• User control: Via front panel up/down keys or digital up/down inputs.
• Digital inputs: dry contact input only
• Supply voltage: 100..240VAC, 50-60Hz or 24VDC/AC.
• Power consumption: < 6VA
• Humidity: 80% up to 30oC, then linearly decreases to 50% at 50oC (non-condensing).
• Altitude: < 2000 m
• Protection class: IP20
• Operating temperature: 0 ... 50 oC
• Storage temperature: -10oC ... 60oC (non-icing)
• Weight: < 0.5 kg
