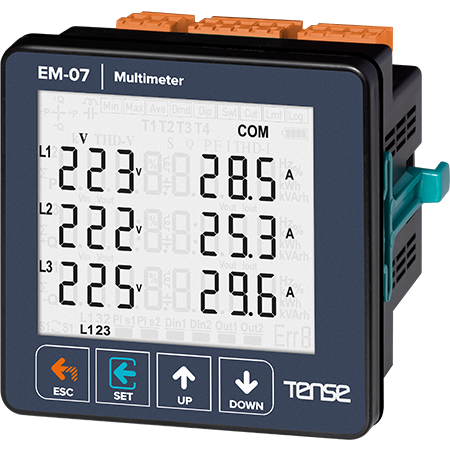

Digital panel multimeter - TENSE (Turkey)

Product description:
A multifunctional digital panel meter designed for precise control of three-phase network parameters. This multimeter displays voltage, current, frequency, and total power. It features a relay output and supports ModBus RTU communication. It is ideally suited for industrial switchgear, power systems, network parameter monitoring and protection.

Key features:

• RS485 Modbus RTU communication (1200-38400 bps).

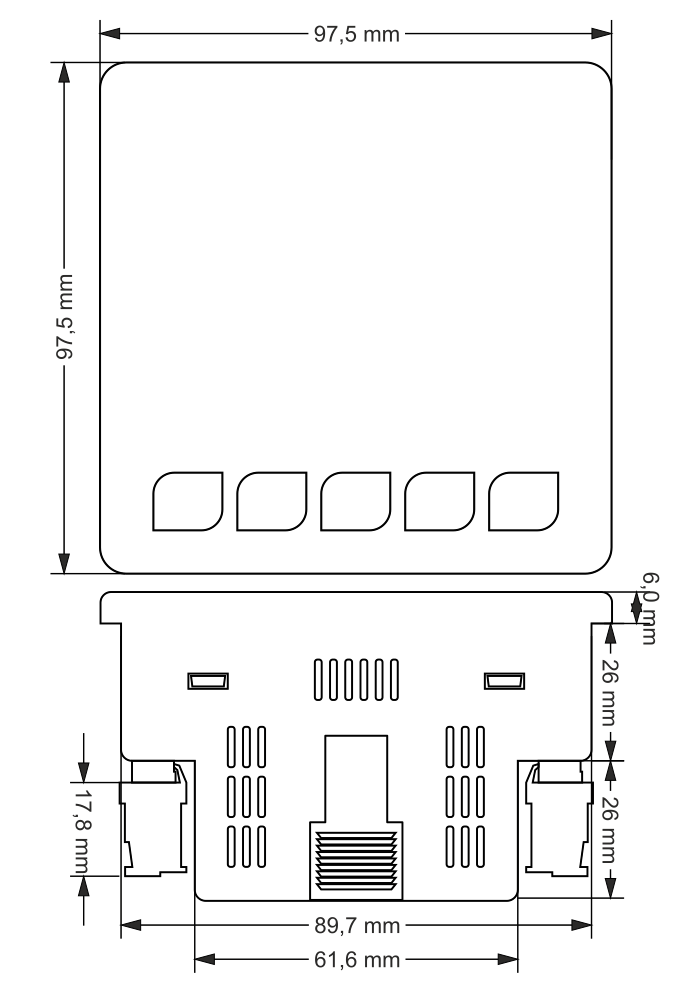

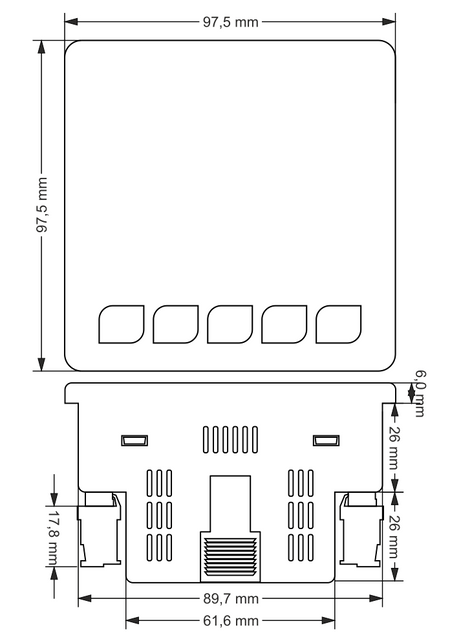

• Display: Glass LCD display, 71.5 x 61.5 mm.

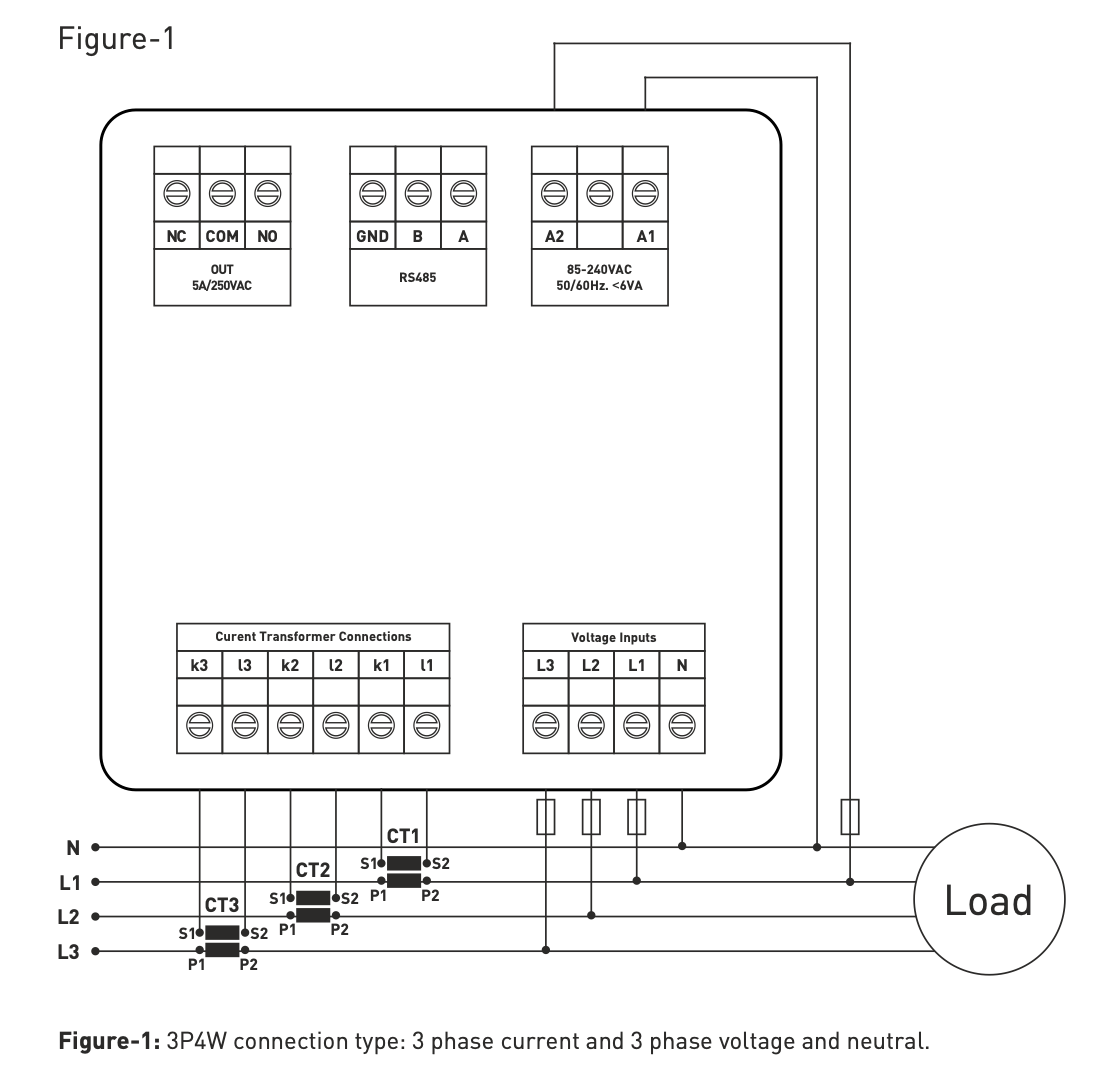

• Phases: 3-phase voltage transformer and 3-phase current transformer.

Measured values:

• Voltage: V1, V2, V3, V12, V23, V31.

• Current: I1, I2, I3

• Apparent power: S1, S2, S3

• Frequency: F1, F2, F3

Other measurement functions:

• Minimum, maximum, average and desired voltage, current and power values.

• Adjustable high/low voltage, current and frequency protection

• Phase sequence indication

• Phase-neutral or phase-phase protection

• Relay output: 1x relay output for switching or alarming

• Security: password protected menu, measurement reset option

• Use with current measuring transformers: 60/5, 75/5, 100/5, 150/5, 200/5, 250/5, 300/5, 400/5, 500/5, 600/5, 800/5, 1000/5, 1500/5 - available in the e-shop.

Applications:

• Industrial switchgear

• Three-phase network parameter monitoring and protection

• Phase sequence and network stability monitoring

• Logging and reporting of measured values using ModBus RTU
