Digital built-in panel ammeter for measuring indirect alternating currents X/5

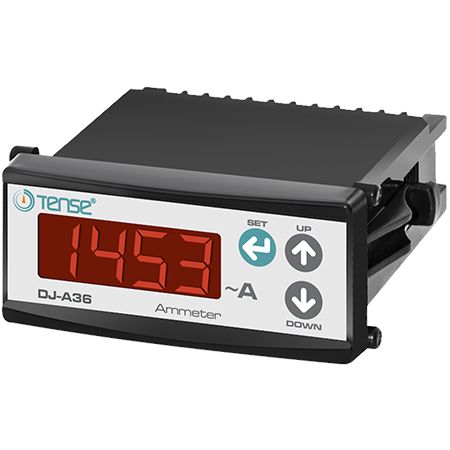

DJ-A36DC Digital DC Ammeter

Shunt current measurement range: 10A - 910A DC

Shunt value: 60mV DC (0.3 ... 70mV)

Shunts (60mV shunt resistor) can be ordered here

Supply voltage: 230VAC (150-270VAC) 50/60Hz, self-consumption: <6 VA

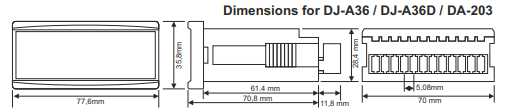

Dimensions: 78x36x75mm, cutout 72x31mm.

Display: 3 digits 9 mm high

The DC ammeter uses indirect measurements through a shunt resistor, which is ordered separately depending on the current value.

It is possible to use a shunt resistor in the range of 10A....910A, but a 60 mV shunt resistor is allowed. This means that at maximum current, the maximum measured shunt U will be 60 mV, while the measurement range is 0.3...70 mV. 70 mV must never be exceeded, as the device will be damaged.

The ammeter requires a 1f 230 V AC 50/60 Hz power source with an input power of <6VA for operation.

Installation and operation description:

Enter the shunt current value for DC measurements:

Press and hold the "SET" button for 1 second to enter the menu, and enter the shunt value in amperes using the "up" and "down" buttons.

After entering the shunt value, press the "SET" button again. The DC current will be displayed on the screen. If the connection has changed polarity or is interrupted, "0" will appear on the screen.

Technical parameters:

Supply voltage: 230 V AC (150-270 V AC) 50/60 Hz, self-consumption: <6 VA.

Current measurement range: 10A - 910A, shunt value: 60mV (0.3 ... 70mV).

In addition to these devices, TENSE offers a wide range of measuring instruments:

manual ammeters and voltmeters.

digital electronic voltmeters

digital electronic frequency meters

Multimeters
