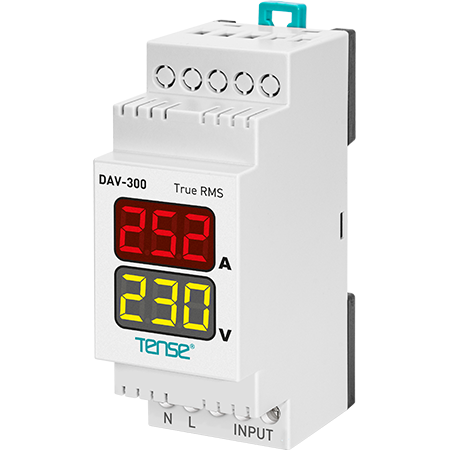

DAV-DIN digital ammeter and voltmeter 150-260V panel meters

Digital multimeter with transformer 120/5 (electronic multimeter, ammeter and voltmeter in one device), manufacturer TENSE

Digital voltmeters and ammeters are designed for continuous monitoring of AC current, load and corresponding phase voltage.

Use the 100 A current transformer included with the device. Connect the current transformer wires to the instrument's input terminals. The instrument's values are adjusted based on the current transformer. Therefore, current transformers of different brands and models should not be combined. When the instrument is connected to current, the display shows the current generated by the load supply voltage and the phase neutral wire connected to terminals A1 and A2.

The device shows AC voltage 150-260 V and AC current 1-100 A.

Voltmeter range:

Voltage 150 V AC - 260 V AC

Current strength 1 A - 100 A

Technical characteristics:

Operating voltage (Un): 140 V - 270 V

Operating frequency: 50/60 Hz

Operating pressure: <6 VA

Sealing accuracy: ±%1(V), ±%3(A)

Operating temperature: -20 °C .... +55 °C

Connection type: clamps

Display: 2 x 3 digits 9 mm

Weight : 220 g

Installation: on DIN rail

Cable diameter: 2.5 mm²
