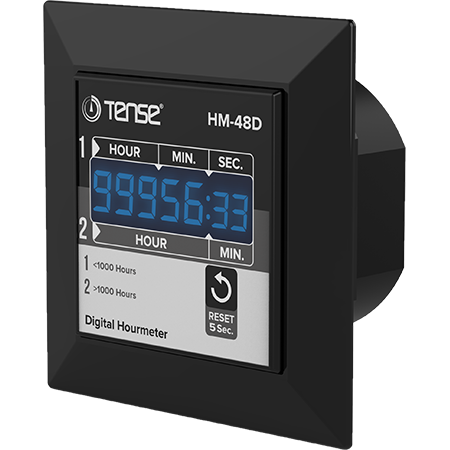

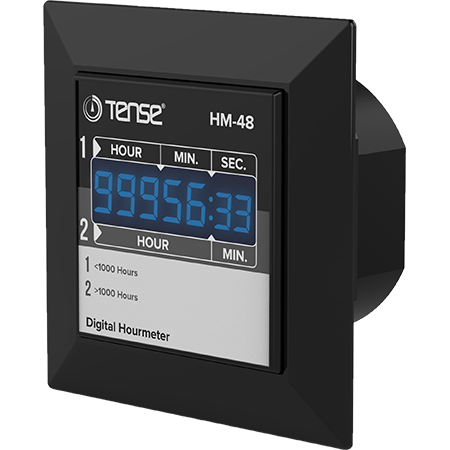

Digital hour meter - TENSE

Product description:
The digital hour meter is designed for measuring the operating time of any load, which starts when the power voltage is connected. The meter is suitable for industrial machinery, equipment, switchgear, and automation systems.

Technical specifications

• Operating voltage: 160-240 VAC, 50/60 Hz

• Alternative power supply: 24 V AC/DC

• Power consumption: < 7 VA

• Operating temperature: -20 °C ... +55 °C

• Time range: 0 seconds to 99,999 hours 59 minutes

• Display: 1×7 LED

• Connection: terminal block

• Mounting: panel

• Weight: < 60 g

• Operating altitude: < 2000 m

• Cable diameter: < 1.5 mm²

Operating principle

1. Connect the meter according to the wiring diagram.

2. Once the power supply is connected, it will automatically start counting the operating time.

3. Value display:

   • Up to 1000 hours: hours:minutes:seconds format.

     • Example: 12345:30 → 123 hours, 45 minutes, 30 seconds.

   • Over 1000 hours: hours:minutes format

     • Example: 14530:45 → 14,530 hours, 45 minutes.

Applications

• Cumulative measurement of machine and equipment operating time

• Monitoring the operation of motors, pumps, fans, and automation lines

• Planning equipment maintenance and monitoring service life
