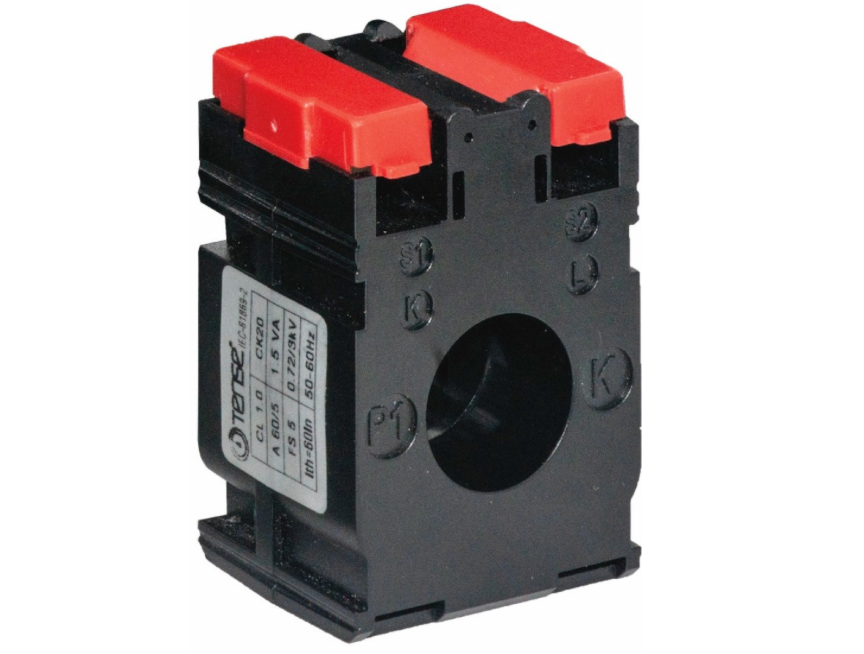

Measuring Current Transformer CK20 - TENSE

Product description:
The CK20 series current transformer is designed for indirect AC current measurements in low-voltage electrical circuits. It is used to power ammeters, power meters, and multimeters, or as an input for protective relays and monitoring devices.

The transformer allows safe and accurate measurement of large currents using a standardized 5 A secondary current.

Technical specifications

• Transformation ratio: 60/5 A

• Load: 1 VA

• Accuracy class: 1

• Terminal block: non-removable cover, suitable for large wires, made of brass.

• Housing: non-flammable, self-extinguishing ABS

• Installation: DIN rail (KK0003)

• Primary conductor: round wire Ø 20 mm

• Short-circuit current resistance (Ith): 60 × In

• Continuous current resistance (Id): 1.2 × In

• Operating temperature: -25 °C to +85 °C

• Rated frequency: 50-60 Hz

• Impact current limit (FS): 5

• Insulation test voltage: 3 kV for 1 minute

• Standards: IEC 60044-1, IEC 61869-2, VDE 0414-1, DIN 57414, BS 3938, BS 7626, EN 61869-2

Additional information

• Each current transformer is individually tested at the manufacturer's factory.

• The measurement results are recorded in the test report attached to the transformer.

• The transformer is suitable for industrial applications, switchgear, measurement and protection systems.
