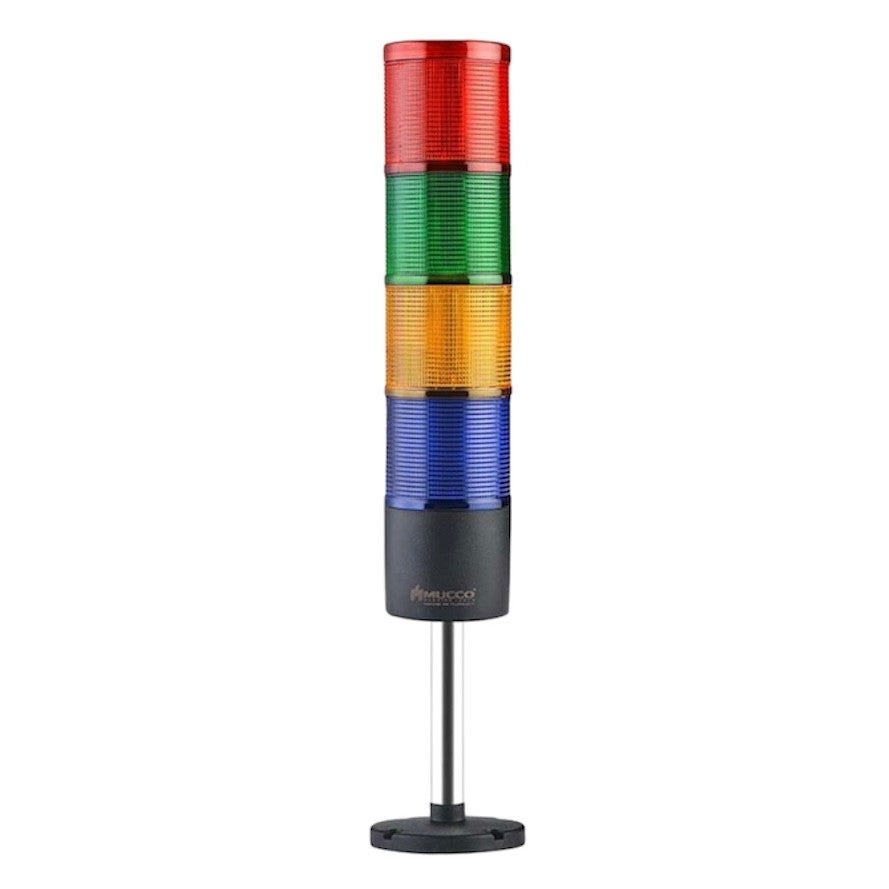

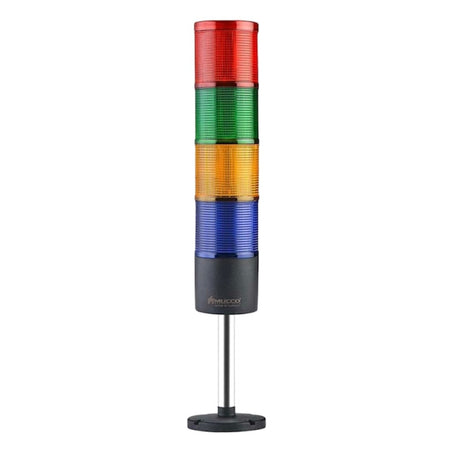

Four-storey signal pole with surface mounting and 10 cm tube

Four-Tier Signal Tower with Surface Mount and 10cm Tube, 12-24, 40-250V AC/DC, SNT-7013 / SNT-7022, Manufacturer MUCCO (Turkey)

Buzzer options No.

Beacon type Flashing

TECHNICAL DATA

12 ~ 24 V AC/DC: 166 mA ±10%

• Housing material: ABS (body) + Polycarbonate (lens)
• Lens colors: Red, Green, Amber, Blue (customizable colors)

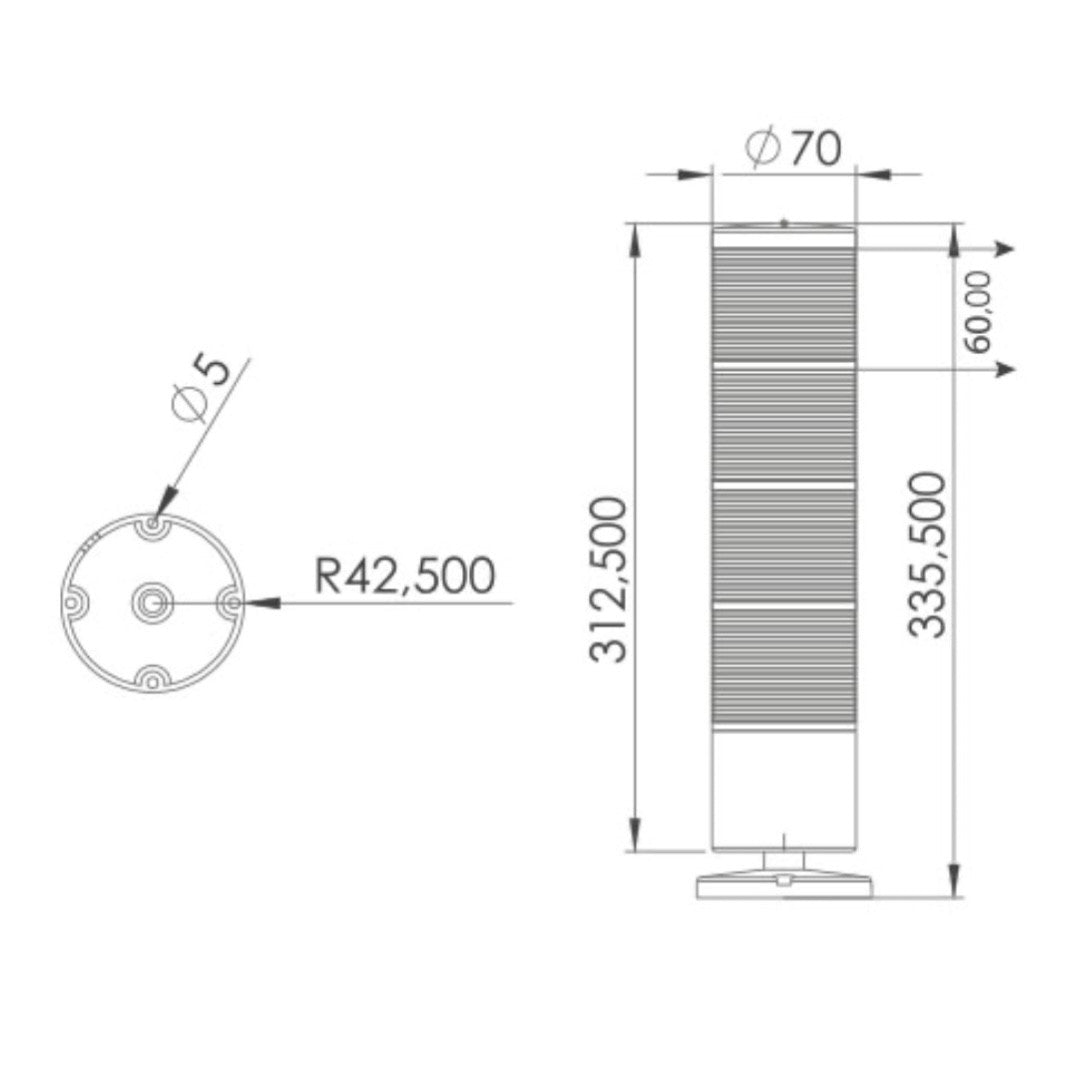

• Lens diameter: ø70 mm
• Light source: SMD LED
• Light mode: Steady, flashing, strobe, rotating.
• Input response time: On/Off: max. 10ms.
• Tone: 1 tone (wire controlled)
• Alarm volume: 103~116 dB at 1 m (3.3 ft).
• Connection: Wired connection:
• Mounting type: Foldable base and external pipe options.
• Operating conditions: -20°C to +50°C (-4°F to +122°F).
• Operating life: 50,000 hours
• Protection class: IP65
• Water, dust, heat and UV resistance.
• ISO-9001, CE, RoHS2 and EAC
