Bimetallic cooling thermostat with NO switching, range 0-60°C - temperature switches
- Regular price
- €9,76 €8,07 excl. VAT
- Regular price
-
- Sale price
- €9,76 €8,07 excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

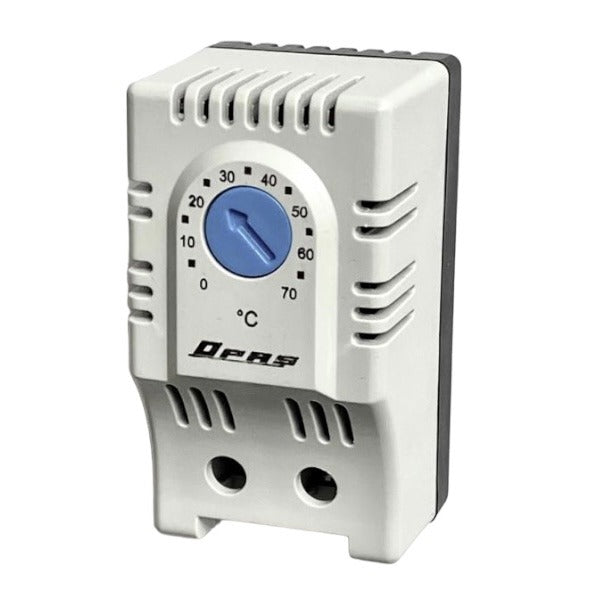

Bimetal cooling thermostat / temperature switch NO, switchable, 0-60°C, bimetal from OPAŞ
Cabinet thermostat (temperature relay, temperature sensor, thermal relay, air temperature control relay) mechanical with built-in air temperature sensor for installation on DIN rail for connecting a fan or signaling when the temperature rises above the set level, normally one open contact (NO contact) PTOT100, 2p, screw terminal, bimetallic thermostats from OPAŞ.
These thermostats are used in systems that maintain a set temperature using cooling elements, such as fans or air conditioners. Such systems are used to prevent overheating of equipment installed in electrical cabinets, ATMs, payment terminals and other equipment installed outdoors or in uncooled rooms.

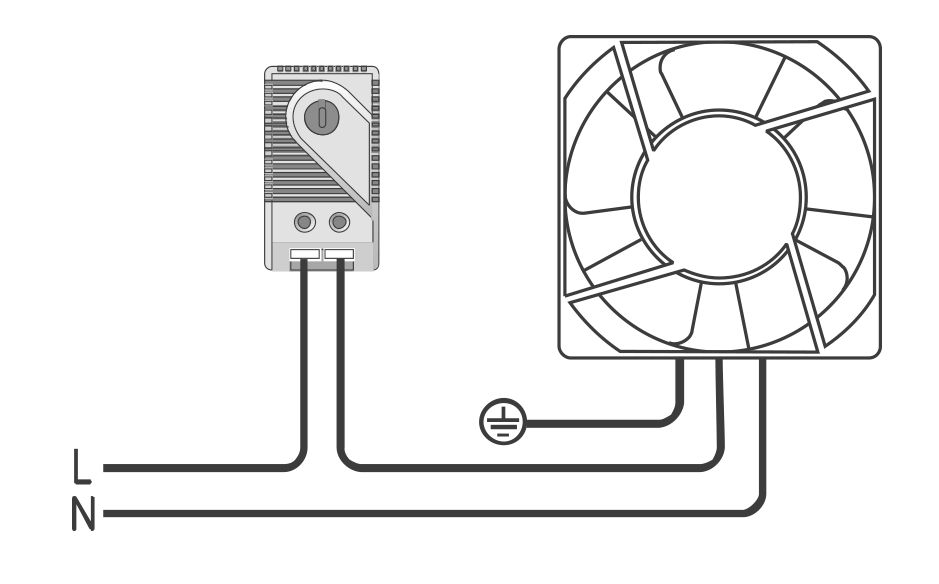

They are used to connect fans, coolers/air conditioners.
|
Characteristics |
PTOT100 |
|
Contact type |
FROM |
|
Setting range |
0-60°C |
|
Potentiometer color |
Blue |
|
250 VAC / 120 VAC |
15 (2) A |
|
Sensor type |
Bimetallic |
|
Contact type |
Closing action |
|
Service life |
> 100,000 |
|
Electrical connection |
2-pole terminal, screw terminals |
|
Plastic material |
UL94 V0 ABS flame retardant |
|
Degree of protection |
IP20 |
|
Operating temperature |
-25 / +80 °C |
|
Storage temperature |
-45 / +80 °C |
|
Installation |
DIN rail 35 mm |
|
Dimensions HxWxD |
61x34x38 mm |
|
Weight |
43g |
