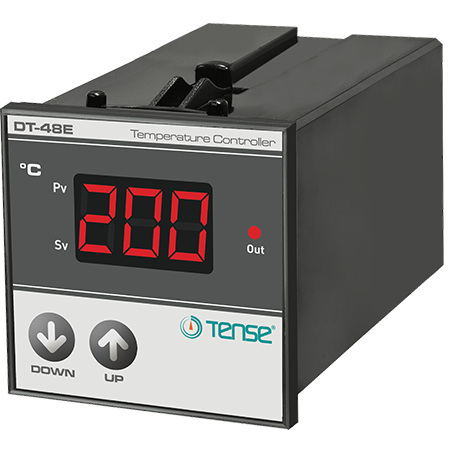

Panel Temperature Controller DT48-EM - PID and ON/OFF

Product Description:
The DT48-EM is a single-channel panel temperature controller designed for heating applications with a universal input. It is used for precise temperature control in industrial applications, light industrial equipment, food industry, ovens, and other systems requiring accurate heating control.

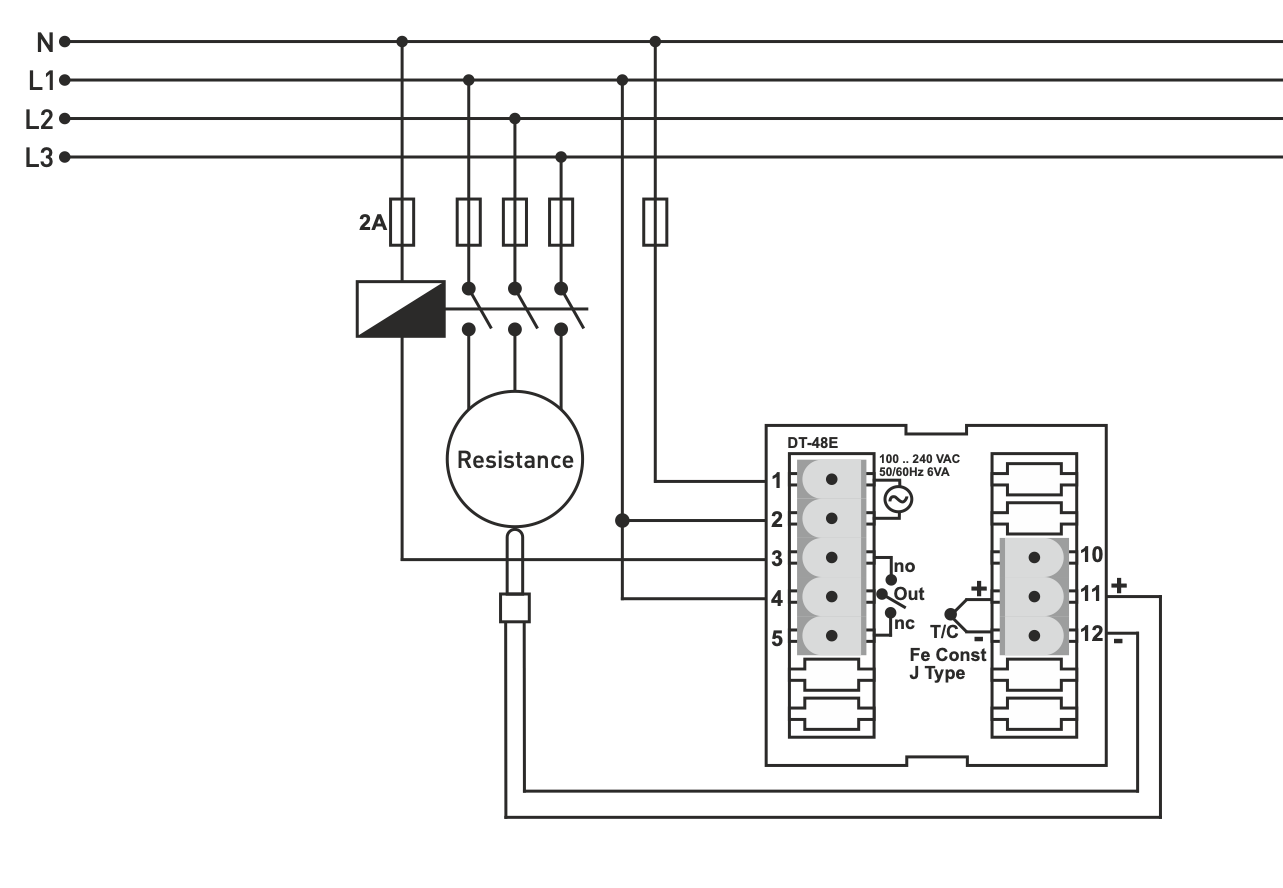

Inputs:

• Pt100 resistance sensor

• J, K, T, R, S type thermocouples (T/C)

Output:

• SPDT relay 2A / 250 VAC for resistive load.

• Digital output 12VDC / 20mA for SSR relay control

Dimensions:

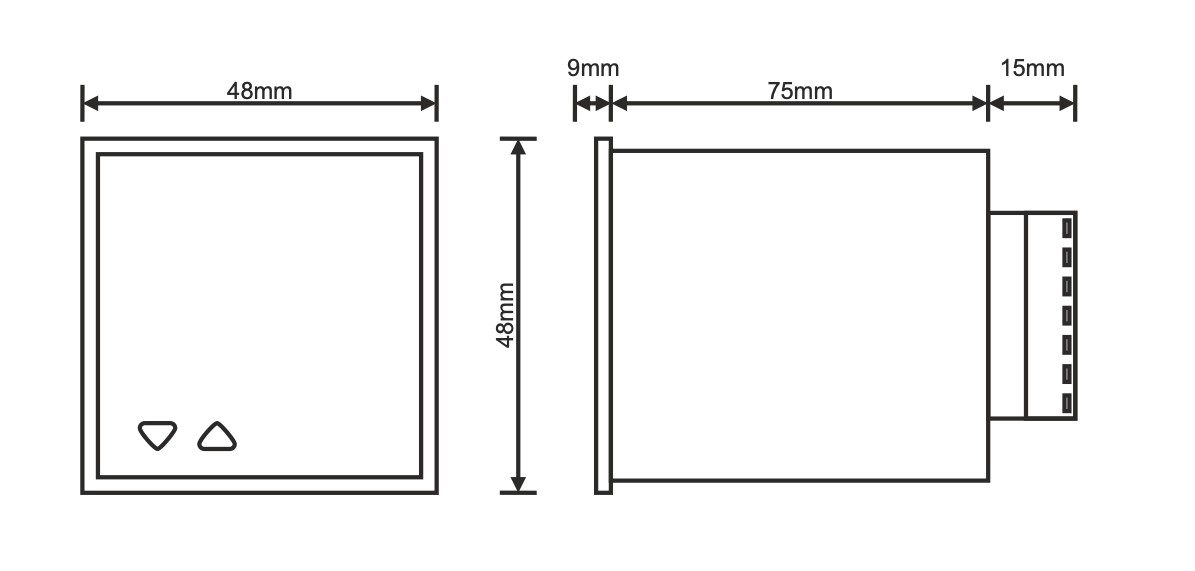

• Panel 48 × 48 × 90 mm

• Mounting hole 46 × 46 mm

• Power supply: 230VAC

Features and characteristics

• Control: PID and ON/OFF, optionally P, PI, PD

• Automatic PID adjustment: self-optimization to minimize overshoot

• Ramp mode: continuous temperature increase at power-on

• Anti-reset windup mode: protection against increasing control output in PID/PI mode

• Upper and lower limits: for setting the desired SET temperature

• Two-line display: Sv (set value) and Pv (actual value)

• Compensation: cold junction in case of T/C, line resistance in case of Pt100

• Linear conversion: °C/mV and °C/Ohm tables

• Offset: value offset over the entire range

• Password protection: prevents unwanted changes to settings

• EEPROM memory: retains settings even after power loss

• Easy connection: 5.08 mm plug-in terminals

Measurement ranges according to sensor type

Note:
Although the controller can measure temperatures below -20 °C and above +55 °C, the device itself must be installed in an environment with a temperature of -20 ... +55 °C, otherwise deformation of the plastic housing and damage to the thermostat may occur.
