Relay interface with mounting block - 6 A, 12-24 V AC/DC, HB+NC (HF-41F)

Product Description

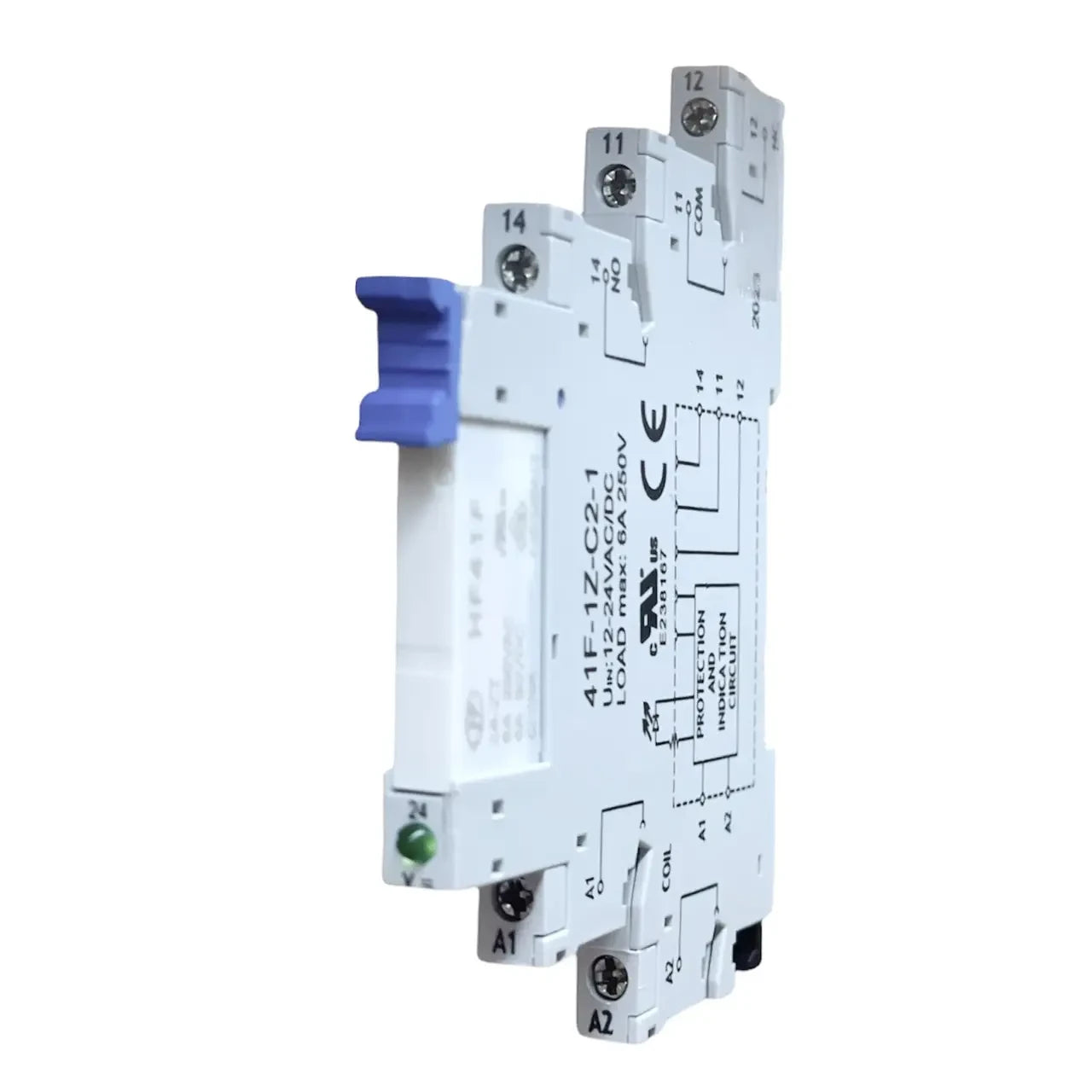

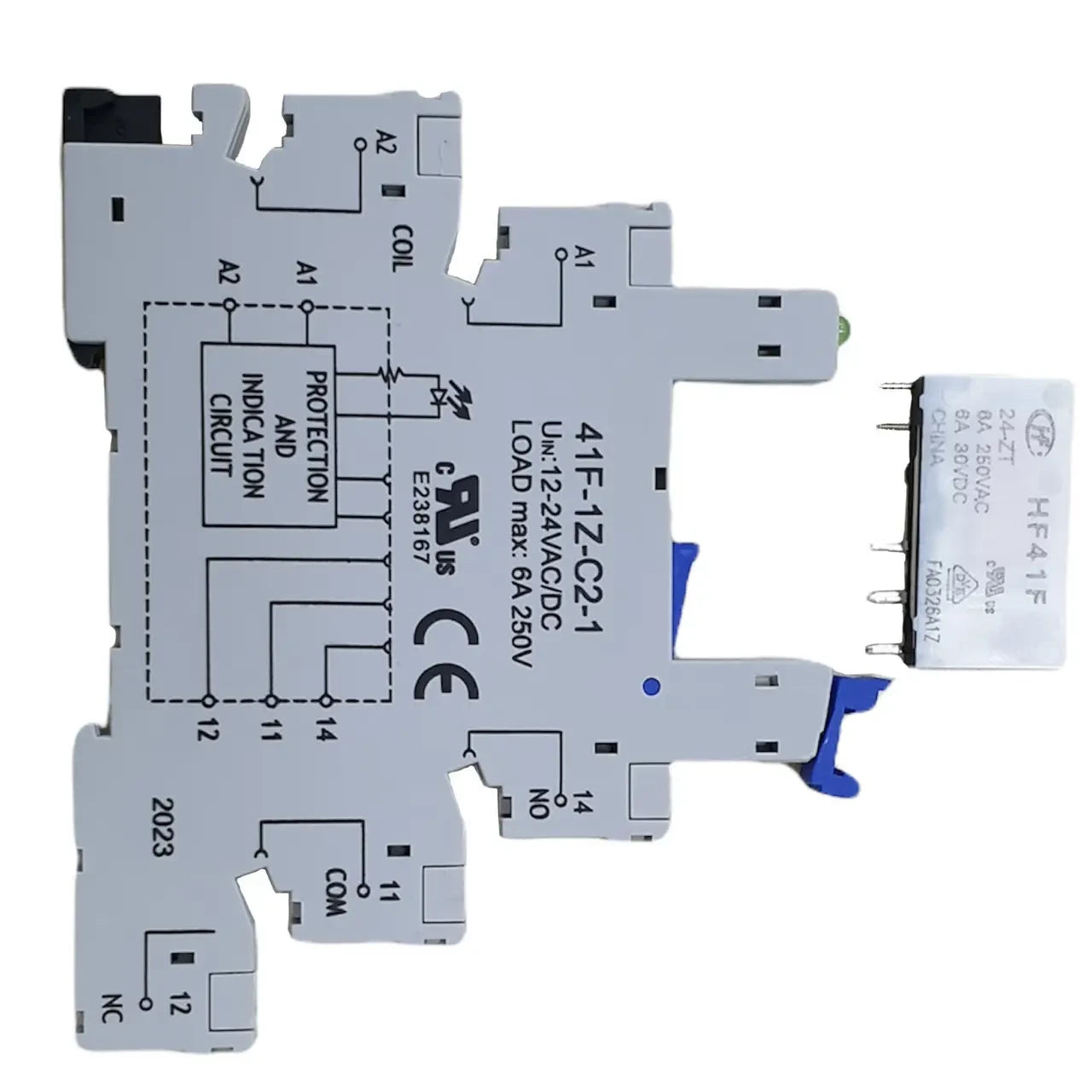

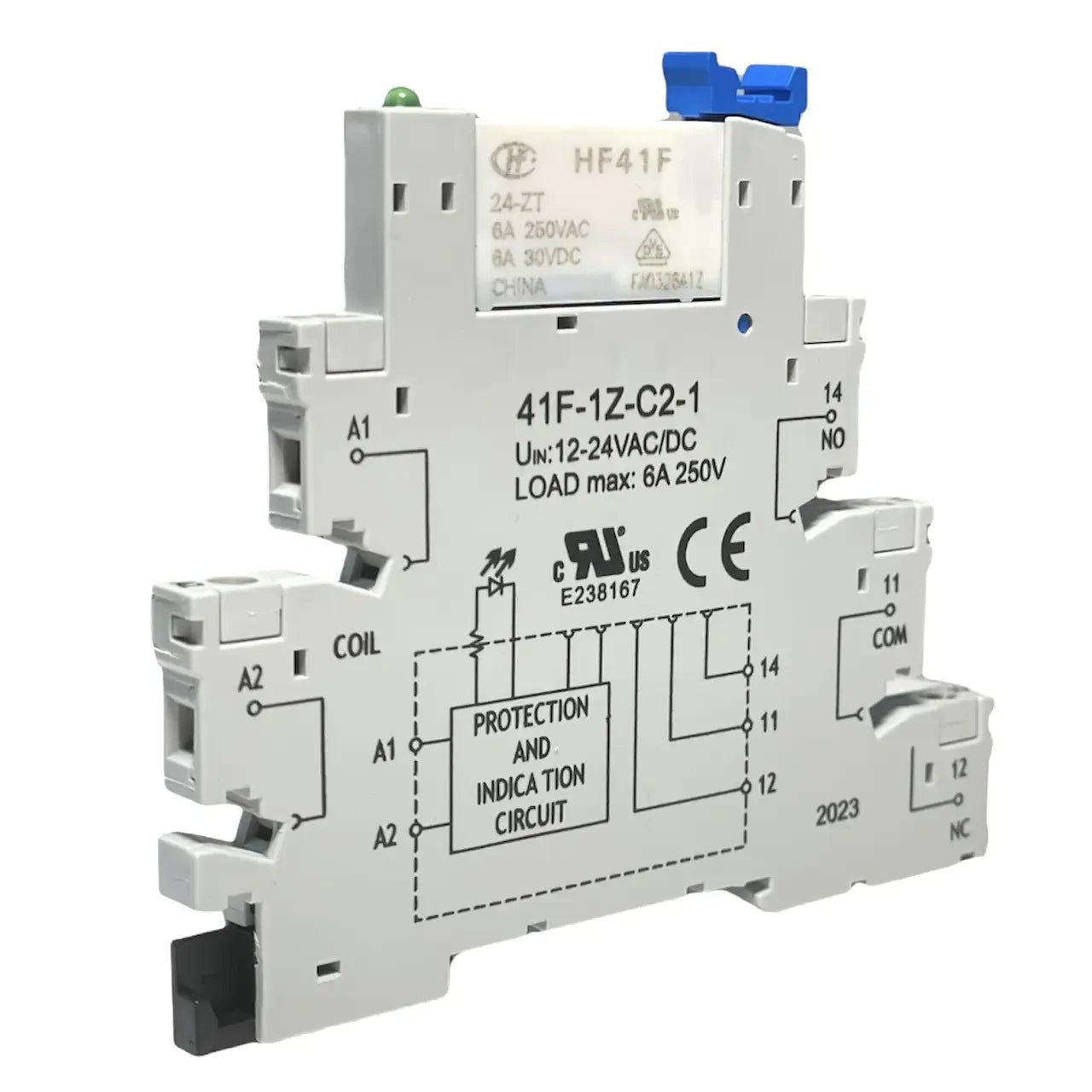

The HF-41F relay interface consists of a 41F-1Z-C2-1 base module and a plug-in miniature relay HF41F/24-ZT with power contacts.
It is used for galvanic isolation, amplification of control signals from PLC, control systems or sensors, and to increase the switching capacity of output circuits.

Thanks to its modular design, it allows for quick relay replacement without disassembling the entire module – ideal for industrial applications, automation, and control cabinets.

Features and Benefits

• Galvanic isolation of control and power circuits

• Increasing the switching capacity of PLC output signals

• DIN rail mounting (standard 35 mm)

• Quick relay replacement – plug-in design without disassembling the entire module

• Only 6 mm width allows for space saving

• LED status indication (green light for relay activation)

• Suitable for AC/DC input voltage 12-24 V

Technical Parameters

• Input voltage: 12-24 V AC/DC

• Rated contact operating voltage: AC AC/DC AC-2:

  • AC: 250 V

  • DC: 30 V

• Rated current: 6 A

• Contact type: NO + NC (1 changeover contact)

• Indication: green LED

• Operating temperature: -20...+55 °C

• Protection degree: IP20

• Module width: 6 mm

• Design: base + plug-in relay HF41F

Application:

• Automation and industrial control

• Low-current PLC outputs

• Separation of signal and power circuits

• Control of contactors, valves, motors, signaling

• Installation in enclosures with high element density
