Asymmetrical cycler / Time cyclic relay with two displays -12VDC,230VAC
- Regular price
- €43,87 €36,26 excl. VAT
- Regular price
-
- Sale price
- €43,87 €36,26 excl. VAT
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Instructions
- Payment methods
- Warranty

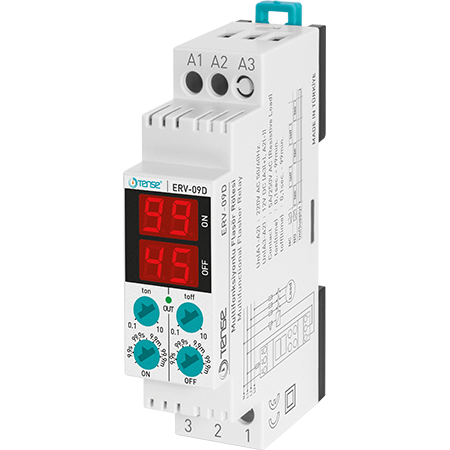

Cyclic Relay ERV-09D - TENSE (Turkey)
The ERV-09D signalling and cyclic relay ERV-09D is designed for applications requiring alternating (ON-OFF) control of equipment. It is suitable for industrial facilities, production lines, residential and office buildings, or any other situation where periodic load switching is required.
Key Features
-
Universal power supply: 230 V AC or 12 V DC
-
Adjustable operating time (ON): 1 s - 99 min
-
Adjustable standby time (OFF): 1 s - 99 min
-
The display shows current settings and countdown time
-
Indication ON = operating time, OFF = standby time
-
Mounting on DIN rail
-
Low power consumption: < 6 VA
-
Compact and lightweight: weight < 80 g
Functions and Controls
-
Dual modes: ON/OFF
-
LED display shows countdown of set time
-
If the time is set in minutes, a dot flashes on the right for easier orientation
-
Ideal for cycling lights, fans, motors and other devices
Technical Specifications
| Parameter | Value |
|---|---|
| Operating Voltage | 100-240 V AC (A1-A2), 12 V DC (A2(-)/A3(+)) |
| Operating Frequency | 50/60 Hz |
| Operating Power | <6 VA |
| Operating Temperature | -20 °C to +55 °C |
| Time Interval | 0.1 s - 99 min |
| Display | 2×2 LED + 1 LED indication |
| Contact | 5 A / 250 V AC, Resistive Load |
| Installation | DIN Rail |
| Weight | <80 g |
| Operating Altitude | <2000 m |
| Cable Diameter | up to 2.5 mm² |
The ERV-09D relay provides reliable and accurate cyclic switching with simple setup and time visualization directly on the display, making it suitable for industrial and domestic applications.
