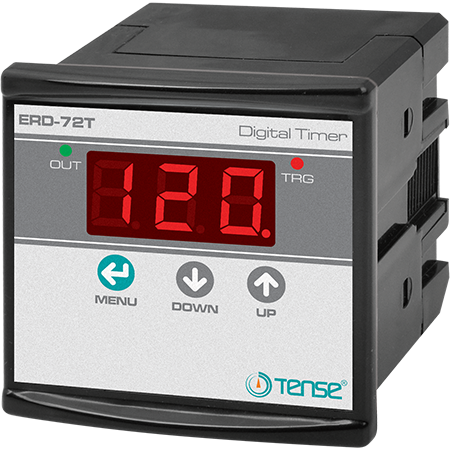

Panel Timer ERD-72T with Display - On/Off Delay

Description:
The ERD-72T panel-mounted timer provides on/off delay with adjustable time up to 999 minutes. Thanks to the display and simple push-button (arrow) operation, time setting is quick and easy.

Key Features

• Time setting: 0.1 s - 999 min (16 h 39 min)

• Status indication:

  • Green LED OUT - relay closed (COM-NO)

  • Red LED TRG - signal present at TRG terminal.

• Output relay: changeover, COM, NO, NC terminals

• Universal power supply: 24 V AC/DC (A2(-), A3(+)) or 230 V AC (A1-A2).

• Power consumption: <6 VA

• Installation: in panel / on cabinet door

• Dimensions: 72 × 72 × 51 mm

Functions

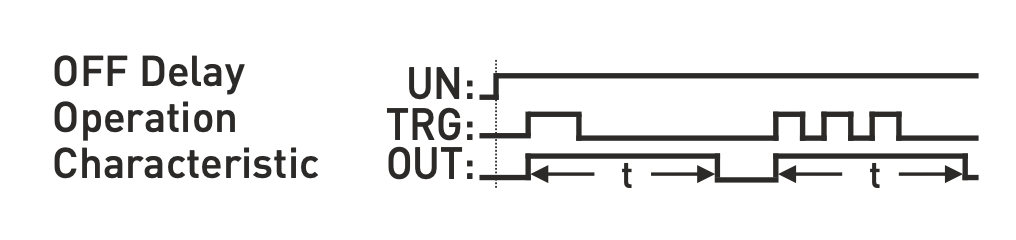

OFF delay:

• Instantaneous relay activation upon rising edge of TRG signal

• The relay remains ON for a set period of time.

• The display counts down the time until switch-off

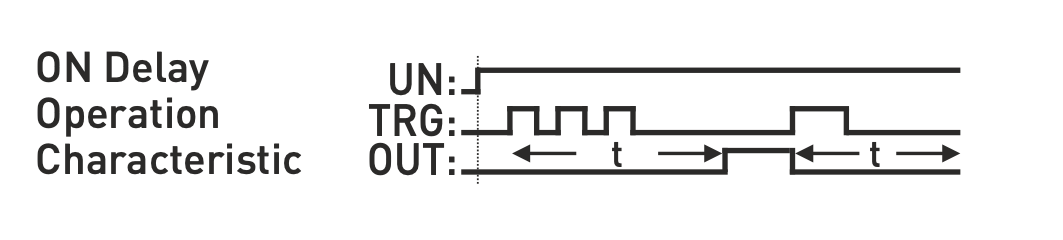

ON delay:

• Delayed relay activation after the set time has elapsed from the rising edge of the TRG signal.

• The display shows the countdown time until switch-on

• The relay switches on until the next rising edge of the TRG signal.

• If the signal remains at TRG, the relay remains on.

Using

• Instantaneous switch-on when TRG signal is applied to TRG

• Delayed load activation (alarm, lighting, contactor)
