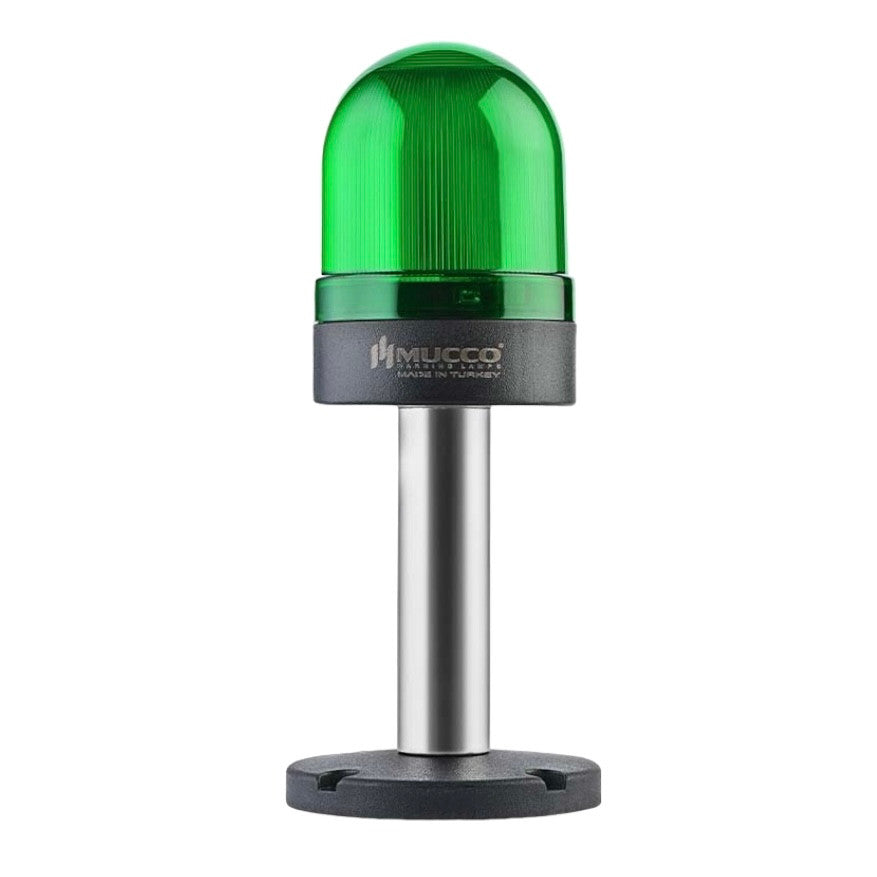

Series 70 green signal light with nut connection

Series 70 Green Signal Light with Nut Connection, 12-24, 40-250V AC/DC, manufactured by MUCCO (Turkey)

70 LENS OPTIONS

LIGHT TYPE Flashing light type

CALL SIGNAL OPTIONS With sound signal

EXTENSION TUBE 10 cm

TECHNICAL DATA

24 V/DC (with sound signal): 10% 10 V/DC (with sound signal): 150 mA ±10%.

• Housing material: ABS (body) + Polycarbonate (lens)
• Lens colors: green

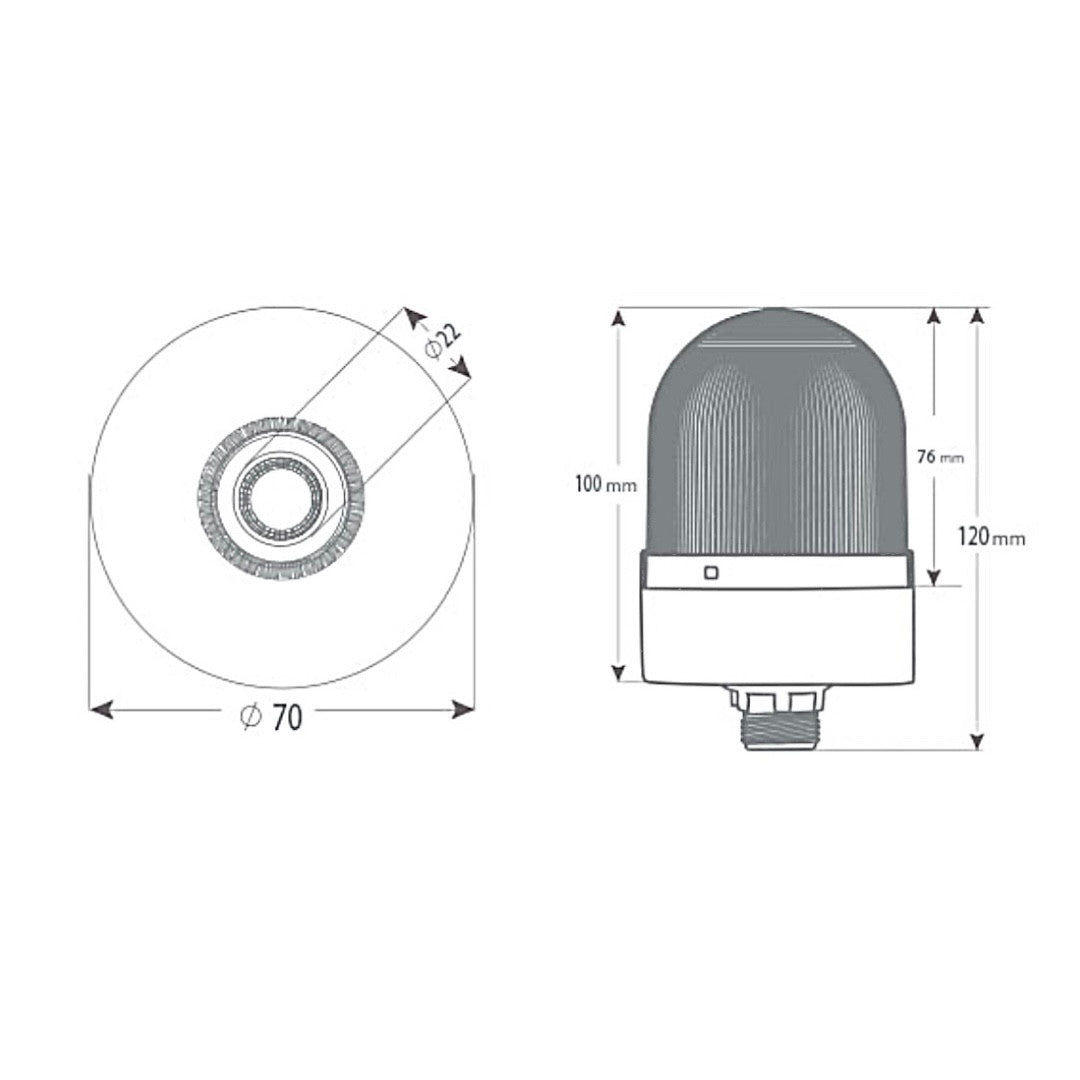

• Lens diameter: ø70 mm (M22 nut - connection)
• Light source: SMD LED
• Light mode: steady, flashing
• Input response time: on/off: max. 10 ms
• Tone: (wired control): 1 tone
• Alarm signal: 104 ~ 107 dB at 1 m (3.3 feet)
• Connection: wired connection:
• Surface, wall mounting Mounting type: surface, wall mounting.
• Operating conditions: -20°C to +50°C (-4°F to +122°F)
• Lifespan: Min. 50,000 hours
• Protection class: IP65
• Protection: Water, dust, heat, and UV resistant.
• Quality certificates and documents: ISO-9001, CE, RoHS2, and EAC.
